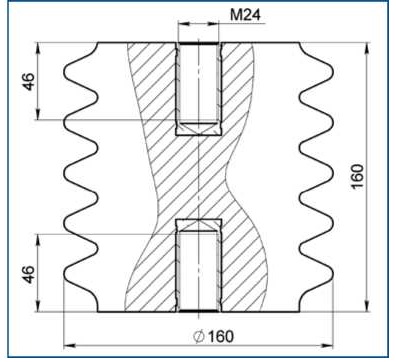

Polymeric support insulators, type ИОРэл-20(160)-7,5 УХЛ 2 1х24
Polymeric support insulators ase designed for insulation of reactors elements from high-voltage current-carrying elements, for voltage class up to 20kV.
Insulators are made by performance "УХЛ", allocation category 2 according to ГОСТ 15150.
Working position - any.
TECHNICAL CHARACTERISTICS
| The parameter naming | The parameter value |
| The rated voltage, kV | 20 |
| The current leakege path length, mm | 370 |
| Lightning impulse withstand voltage, kV | 80 |
| The partial gas spark intensity in an insulator at a voltage 7,7 kV, pKl | 5 |
| Mechanical bending strength, kN | 7,5 |
| Mechanical tensile strength, kN | 5 |
| Weight, kg | 4,1 |
