6-10 кВ Assembling chambers of unilateral service, types КСО 393, 393В, 210, 298

6-10 кВ Assembling chambers of unilateral service, types КСО 393, 393В, 210, 298

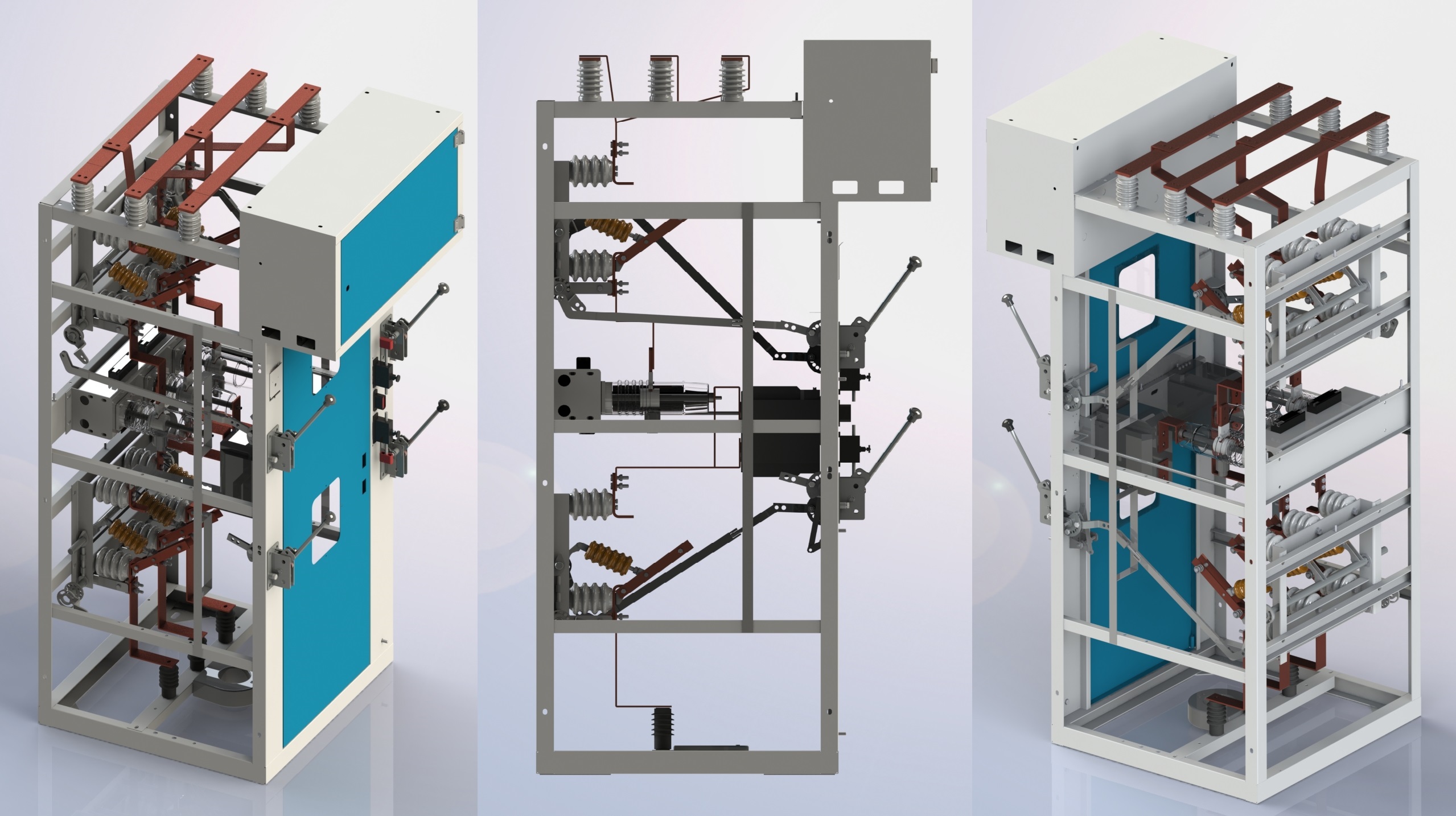

КСО is assembled Camera of unilateral service is intended for use in electrical installations of three-phase AC 50Hz and 60Hz, 6kV and 10kV voltage, for systems with neutral insulated or grounded through arc suppression (Peterson) coil.
From КСО cameras going switchgear, serving for electricity reception and distribution. The principle of operation is determined by a set of circuits of main and auxiliary circuit cameras.
The climatic performance У and Т, accomodation category 3 as per GOST 15150.
The structure of КСО series includes a variety cameras of standard performance, differing by design, purpose and used sets of equipment.

THE BASIC TECHNICAL DATA

The parameter name

The parameter data

The rated voltage, kV

6; 10

The maximum operation voltage, kV

7,2; 12

The rated current of the main circuits for vacum circuit brakers cameras, A

630, 1000, 1600, 2000

The rated switch-off current for vacum circuit brakers cameras, kA

12,5; 20; 25; 31,5

The rated thermal current for vacum circuit brakers cameras (short-time current), kA

20

The rated peak withstand current for vacum circuit brakers cameras, kA

52

The rated current of the main circuits for load switch cameras, A

400; 600

The rated switch-off current for load switch cameras, A

630

The rated thermal current for  load switch cameras (short-time current), kA

20

The rated peak withstand current for load switch cameras, kA

51

The primary current of the current transformers, А

30;50;75;100;150200;300;

400;600;800;1000;1500

The busbars rated current, A

630; 1000; 1500; 2000

The auxiliary circuits rated voltage, V:



- AC and DC protection, operation and alarm circuits, V

110, 220

- voltage transformers circuits, V

100

- auxiliary transformers circuits, V 220, 380
