6-10 kV One-phase two-windings power transformers ОМП, ОМ, ОМС

One-phase transformers of OM series are designed to convert electricity in power grids, for electric railways power supply, for feeding of complex cathodic protection devices (for protection of pipelines, overpasses) and other single-phase 220V power consumers.
Download questionnaire OM.doc [40 Kb] (downloads: 10)



6-10kV Oil-immersed three-phase two-winding power transformers TM type

Power oil-immersed three-phase two-windings general-purpose transformers, with rated power 25-2500 kVA, rated high voltage 6-10 kV, of TM type, are designed for indoor or outdoor installation and comply to IEC-76, GOST 11677-85, GOST R 52719-2007, TU U 31.1-13608660-062:2007.

Download questionnaire TMGEZ.doc [40 Kb] (downloads: 18)



6-10kV Three-phase oil-immersed two-windings power transformers ТМГ type

Power range of transformers is 25 - 2500 kVA. They are submitted in a sealed version and completely filled by oil. Temperature volumetric changes of oil are offset by the tanks corrugated walls volume change, due to their elastic deformation. The advantage of sealed transformers are:
- smaller size due to the absence of an expansion tank;
- absence of direct contact between oil and atmosphere, which prevents a moisture absorption from an environment and as a result - there is no need for periodic maintenance.

Download questionnaire TMGEZ.doc [40 Kb] (downloads: 16)



6-10 Kv Three-phase transformers ТМЗ, ТМФ type

The transformers are comply to IEC-76, GOST 11677-85, GOST R 52719-2007, TU U 31.1-13608660-062:2007 standards.
The manufacture is certified by ISO 9001:2008.
Power oil-immersed step-down three-phase two-windings sealed (hermetic) with oil protection (ТМЗ) or flange type (ТМФ) transformers of 400 to 2500 kVA rated power, 6-10 kV voltage class, are designed for substations of indoor or outdoor installation.
Download questionnaire TMGEZ.doc [40 Kb] (downloads: 8)

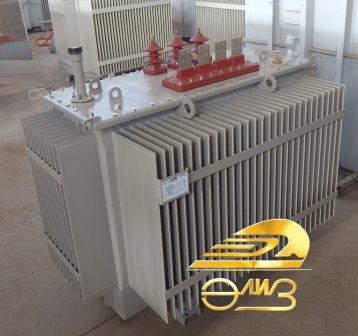

6-10 kV Three-phase oil-immersed transformers ТМТО type

The transformers are comply to MEK-76, GOST 11677-85, GOST R 52719-2007, TU U 31.1-13608660-062:2007.

The manufacture is certified by ISO 9001:2008
The transformers are designed for heat treatment of concrete and soil, for feeding of electric hand tools and temporary lighting.

Download questionnaire TMGEZ.doc [40 Kb] (downloads: 2)



6-10 kV Three-phase transformers of special (excavator) designation, ТМЭ, ТМЭГ type

The transformers are comply to MEK-76, GOST 11677-85, GOST R 52719-2007, TU U 31.1-13608660-062:2007.

The manufacture is certified by ISO 9001:2008
Power oil-immersed three-phase double-wound step-down transformers for indoor and outdoor installation, capacity from 40 to 630 kVA, are intended for installation on excavators platforms for feeding their electric equipment.
Download the questionnaire TMGEZ.doc [40 Kb] (downloads: 3)



Three-phase double-wound balun transformers (with symmetrical device) ТМГСУ type

The transformers complies to the standards GOST 11677-85, GOST R 52719-2007, TU U 31.1-13608660-062:2007.
The manufacture is certified by ISO 9001:2008.

Power oil-immersed three-phase three-windings general-purpose transformers with rated power from 10 to 400 kVA, with up to 10 kV voltage grade, are designed for indoor or outdoor installation.
Download the questionnaire TMGEZ.doc [40 Kb] (downloads: 2)

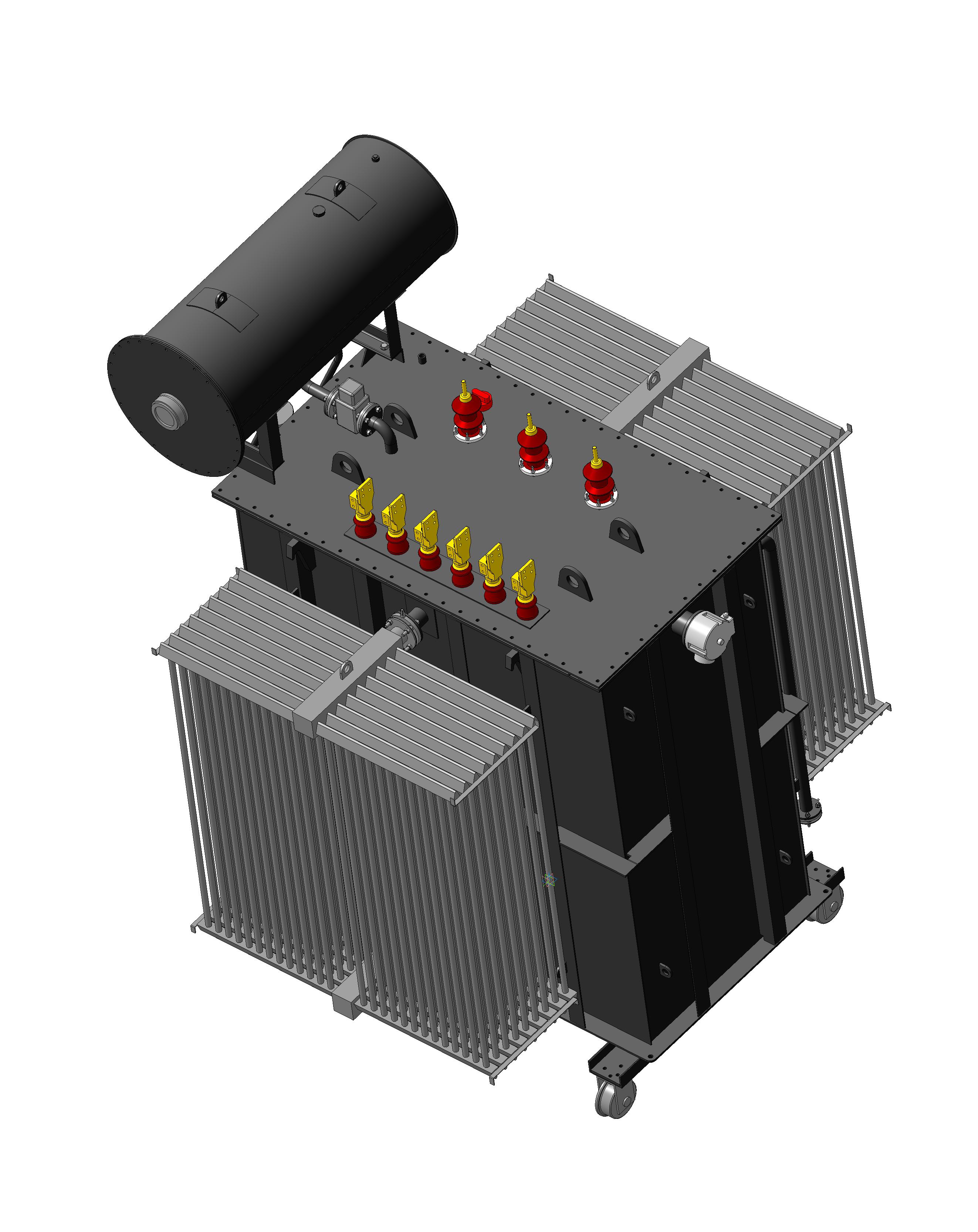

Three-phase converter transformers ТМП, ТРМП, ТРДП type

The transformers with splitted windings of 12-phase bridge rectifier circuit are designed for electrified rail transport (with series connection of converter sections), metro and ground passenger electric.
The transformers rated power range - from 4000kVA up to 25000kVA
The transformers rated voltages - 6kV; 10kV; 27,5kV and 35kV.
The specimen of technical data list TRMDP.doc [14,46 Kb] (downloads: 4). Due to wide options range, in each case, the data list coordination between "ELIZ" and customers technicians would be welcome.
