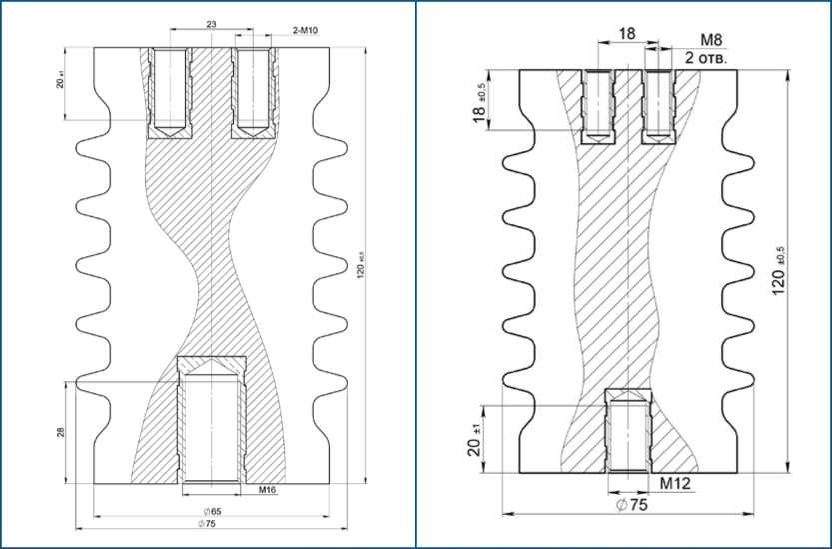

Polymeric support insulators, type ИОЛэл-10(120)-8 УХЛ2 1х16-2х10(23), ИОЛэл-10(120)-5 УХЛ2 1х12-2х8(18)
Polymeric support insulators ase designed for insulation of switchgears (КРУ) elements from high-voltage current-carrying bus, for voltage class up to 10kV.
Insulators are made by performance "УХЛ", allocation category 2 according to ГОСТ 15150.
Working position - any.
TECHNICAL CHARACTERISTICS
| The parameter name | The parameter value |
| The rated voltage, kV | 10 |
| The current leakege path length, mm | 185 |
| Lightning impulse withstand voltage, kV | 80 |
| The partial gas spark intensity in an insulator at a voltage 7,7 kV, pKl | 5 |
| Mechanical bending strength, kN | 5 / 8 |
| Mechanical tensile strength, kN | 3 |
| Weight, kg | 0,65 / 0,68 |
