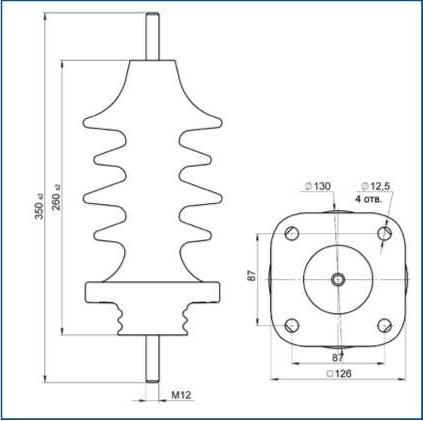

Polymeric bushing insulators, type ИПТэл-10/250 УХЛ1
Polymeric bushing insulators, non-armored, are designed for removable, HV transformer inlets and for power transformers, up to 10kV voltage class.
The insulators are made in «УХЛ» performance, accomodation category 1 as per ГОСТ 15150.
Working position - any.
TECHNICAL CHARACTERISTICS
| The parameter naming | The parameter value |
| The rated voltage, kV | 10 |
| The current leakege path length, mm | 500 |
| The rated current, A | 250 |
| Mechanical bending strength, kN | 4 |
| Weight, kg | 2,55 |
