6, 10, 35kV Packaged transformer substations, type КТПГС-100…1000/6(10)/0,4-У1

6, 10, 35kV Packaged transformer substations, type КТПГС-100…1000/6(10)/0,4-У1

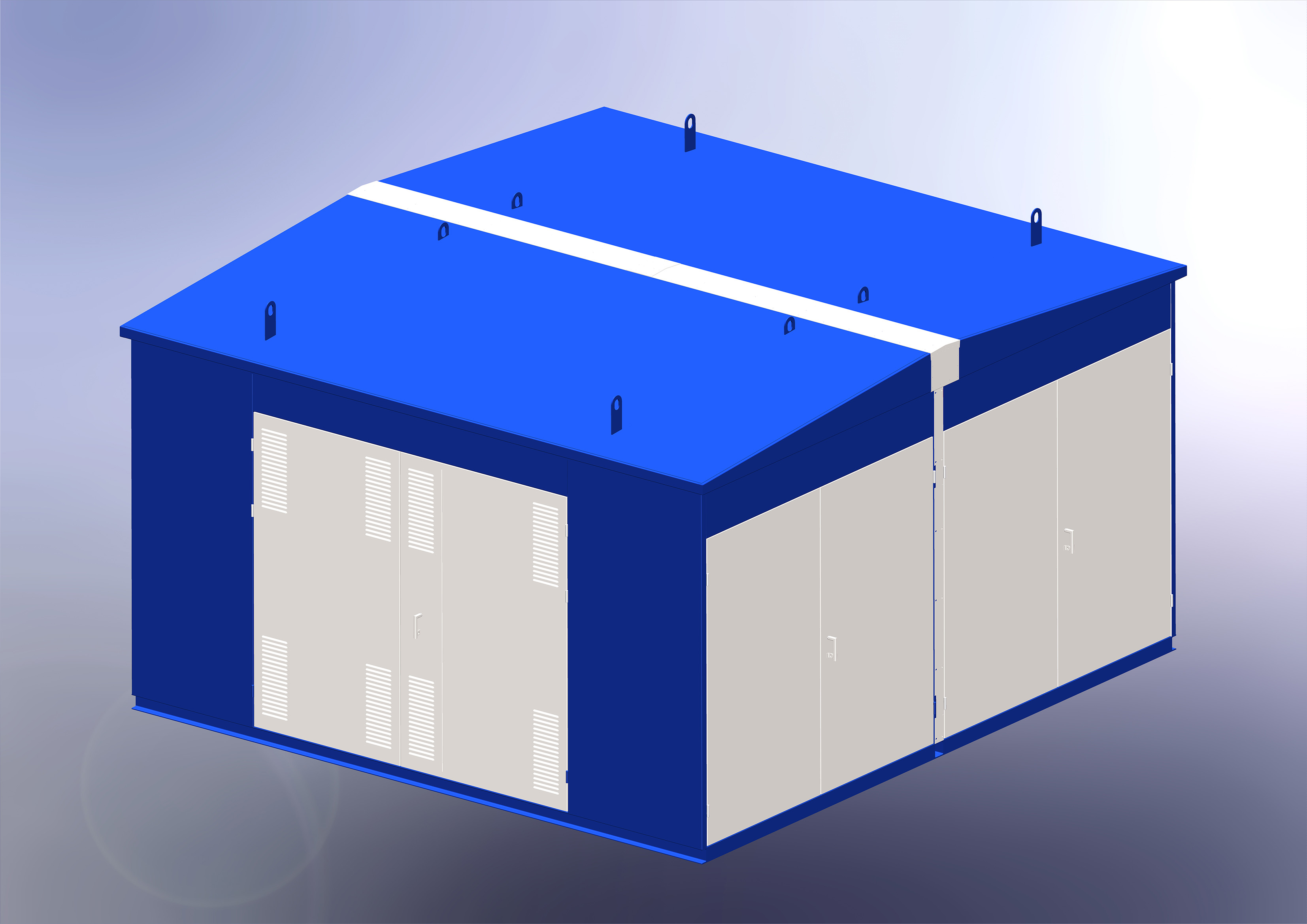

Packaged transformer substations for urban mains, transit or dead-end type, are designed for receiving electric energy of three-phase AC 50Hz, rated voltage of 6 (10, 35) kV, its conversion to 0.4 kV voltage and distribution to consumers.
Packaged transformer substations are intended for power supply of industrial enterprises and civil buildings for outdoor installation.


The substations features:
- Single / dual - transformer substations.
- Cable / air  inlet / outlet.
- Transit or dead-end type
The substations components:
УВН section is equipped by:
* КСО393 cameras with РВЗ disconnectors and ВНР (ВНА) load switches.
* КСО 393В cameras with vacuum switch.
РУНН section is equipped by:
* ЩО90 panels with knife switches and fuses
* ЩО90 panels with with automatic switches
* ККУ packaged condenser installations
* street lighting boxes
* electricity metering units
