6-10 kV КРУ-10Э and КРУ-10ЭЦ - type high voltage cabinet

6-10 kV КРУ-10Э and КРУ-10ЭЦ - type high voltage cabinet

КРУ-10Э(Ц) - type high voltage cabinet is a complex switchgear, designed for income and distribution of three-phase AC 50-60Hz current in mains with a neutral wire insulated or grounded through arc suppression (Peterson) coils.
КРУ-10Э(Ц) are applied in closed switchgears (РУ) and in electric installations with frequent switching operations.

The basic parameters of КРУ-10Э (Ц)

The parameters name

The parameters value

КРУ-10 Э(Ц)-20 У3

КРУ-10 Э(Ц)-31,5 У3

The rated voltage, kV

6,0; 10,0; 11,0

6,3; 6,6; 6,9

6,0; 10,0; 11,0

6,3; 6,6; 6,9

The maximum operational voltage, kV

7,2; 12,0

7,2; 12,0

The rated current of the КРУ switchgears main circuits at 50Hz, A

630; 1000; 1600

630; 1000; 1600

The rated busbar current at 50Hz, A

630; 1000; 1600; 2000; 2500; 3150

630; 1000; 1600; 2000; 2500; 3150

The rated disconnect current of the circuit breaker built into the КРУ, kA

20,0

31,5

Thermal current for the time period of 3sec, kA

20,0

31,5

Rated current of electrodynamic resistance of the КРУ main circuit, kA

51,0

81,0

The auxiliary circuits rated voltage, V:

             for direct and rectified current

             for alternative current



110; 220

220

The rated power of built-in power transformers, kVA

40


КРУ-10Э(Ц) cabinets service terms - two-way. КРУ-10Э(Ц) cabinet switchgears are equipped with withdrawable elements with vacuum switches. At necessary of installation together with other switchgear cabinets, transitional cabinets can be fitted, for example, between КРУ-10Э(Ц) and КРУ2-10-20. Complete switchgear cabinets of  КРУ-10Э(Ц) series corresponds to the technical requirements.

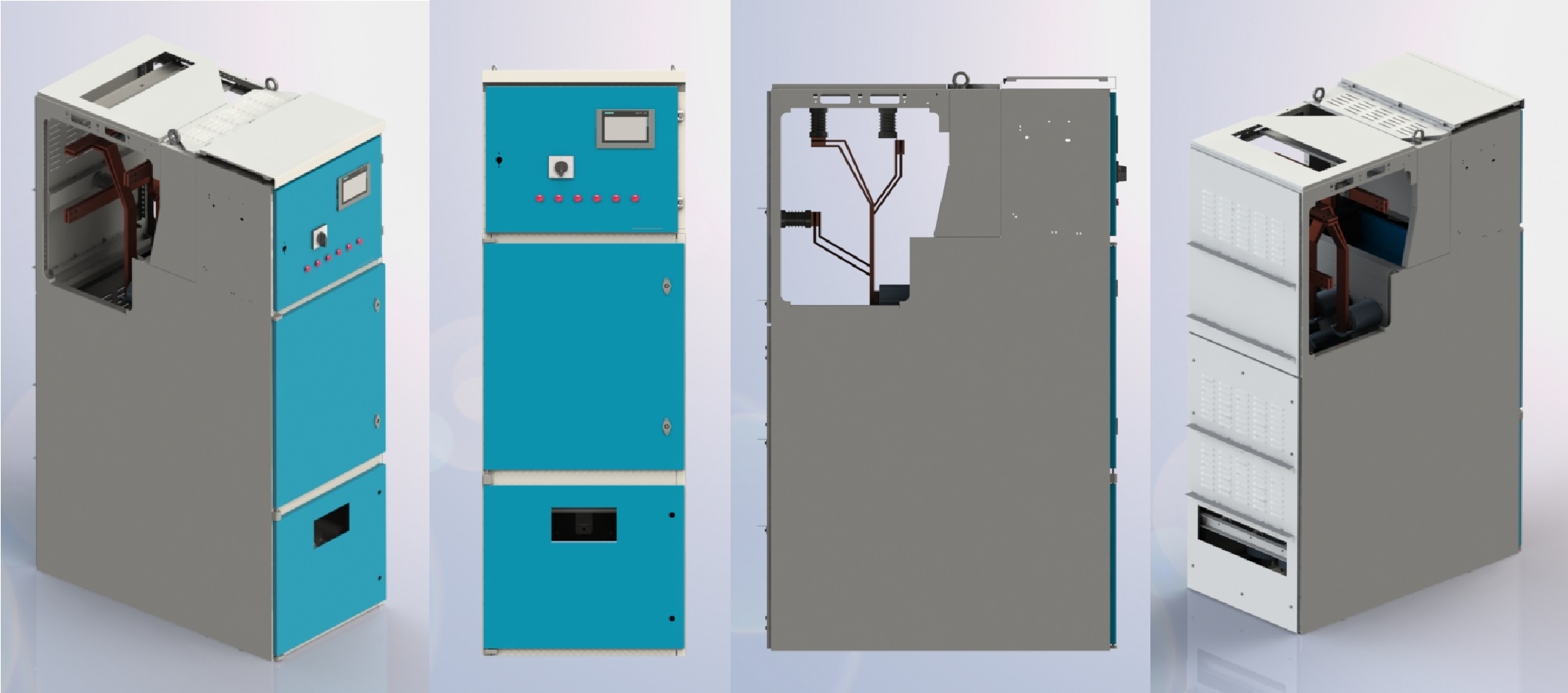

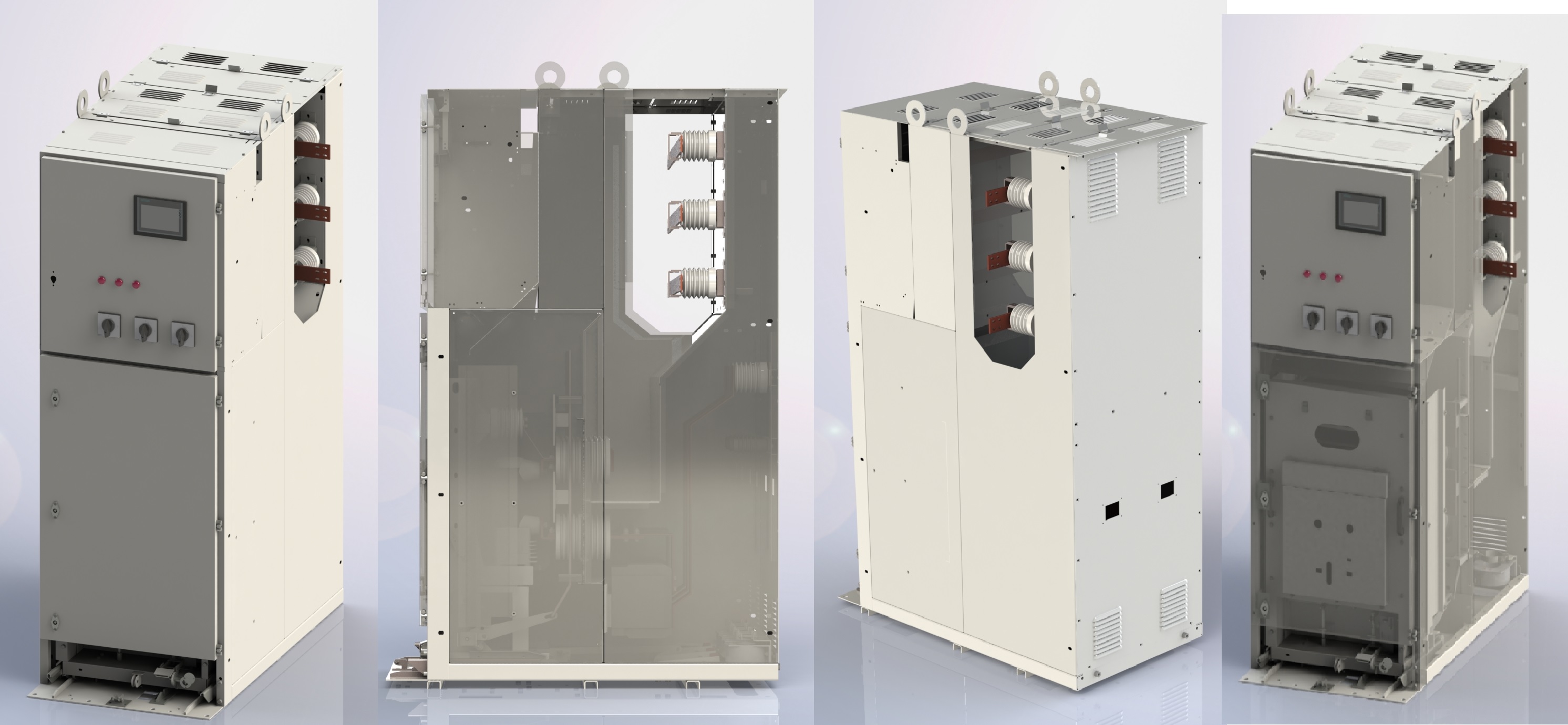

The body of the cabinet is a prefabricated metal case, divided by metallic and insulating partitions into compartments: the withdrawable unit; linear bar; busbar; exhaust; low-voltage equipment cabinet, on which the box for mounting of low-voltage cables is provided.
Withdrawable unit compartment, busbar and connection compartment is connected to the exhaust compartment, which is covered on the top by the swivel lid with shutters, for ejection the overheated air and for dropping of excess pressure in the event of accidental short-circuit. Cabinets are equipped with a valve or photo thyristor arc protection. For comfortable service, switchgear bays modular and linear bar are covered with removable sheets. Linear bus compartment can be equipped with an additional means for warning about voltage presence.
КРУ-10Э - are equipped by withdrawable elements with bottom placement.
КРУ-10ЭЦ - are equipped by withdrawable elements with central placement.
