0,66kV Three-phase converters transformers ТСП, ТСЗП, ТСЗВ

0,66kV Three-phase converters transformers ТСП, ТСЗП, ТСЗВ

  The transformers of this series are used to supply rectifying stands of electrolysis plants in non-ferrous metallurgy and chemical industry (if necessary using leveling and smoothing reactors); in the valve electric drive devices; valve exciter for synchronous machines; arc devices.
Connection scheme and group − Δ/Y-11.
  Pritection degree as per ГОСТ 14254 - from IP00 to IP21, and IP34 - under customers request and after mutual coordination.
Download questionnaire TSPU.doc [116,5 Kb] (downloads: 13)

The transformers technical data

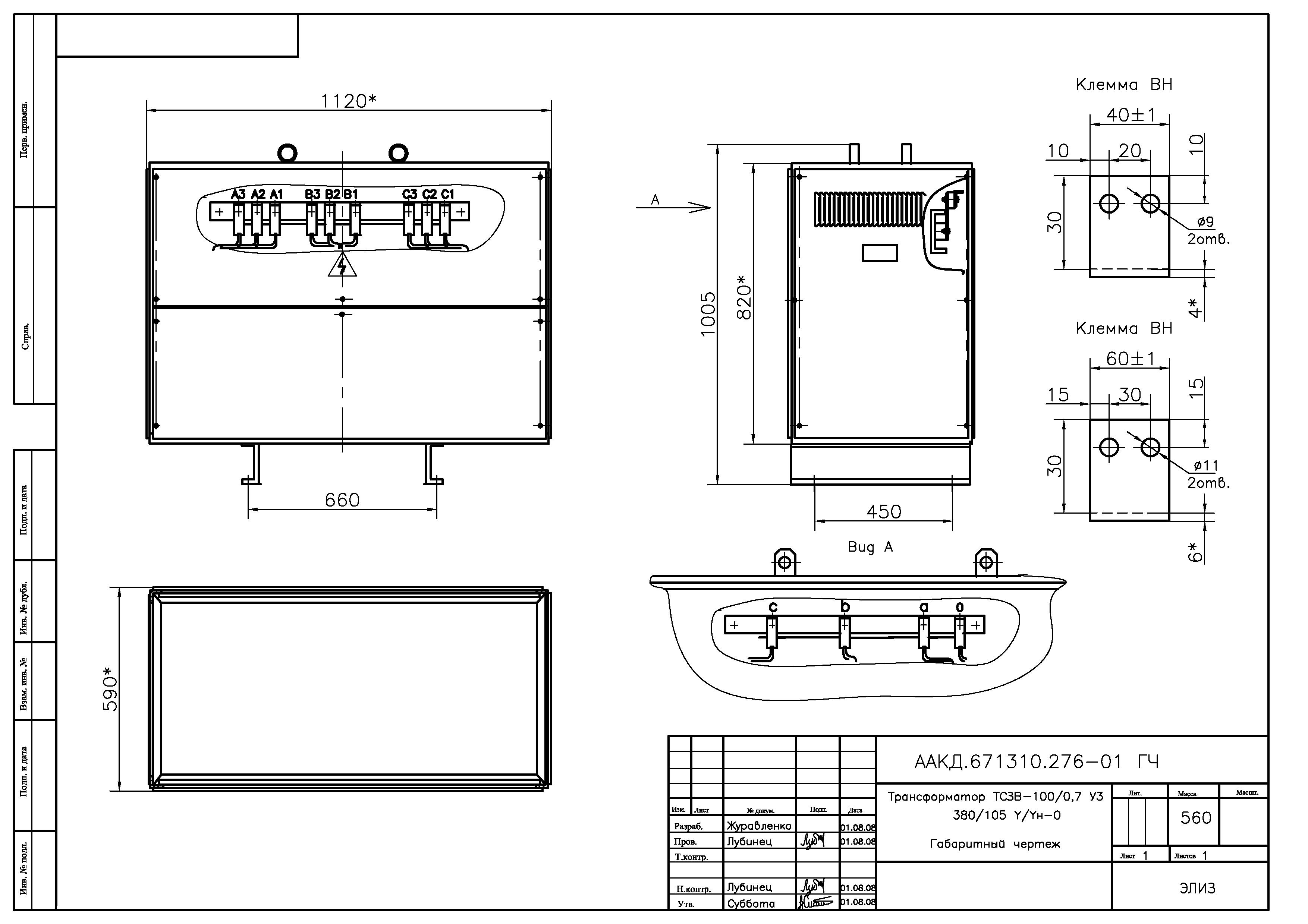

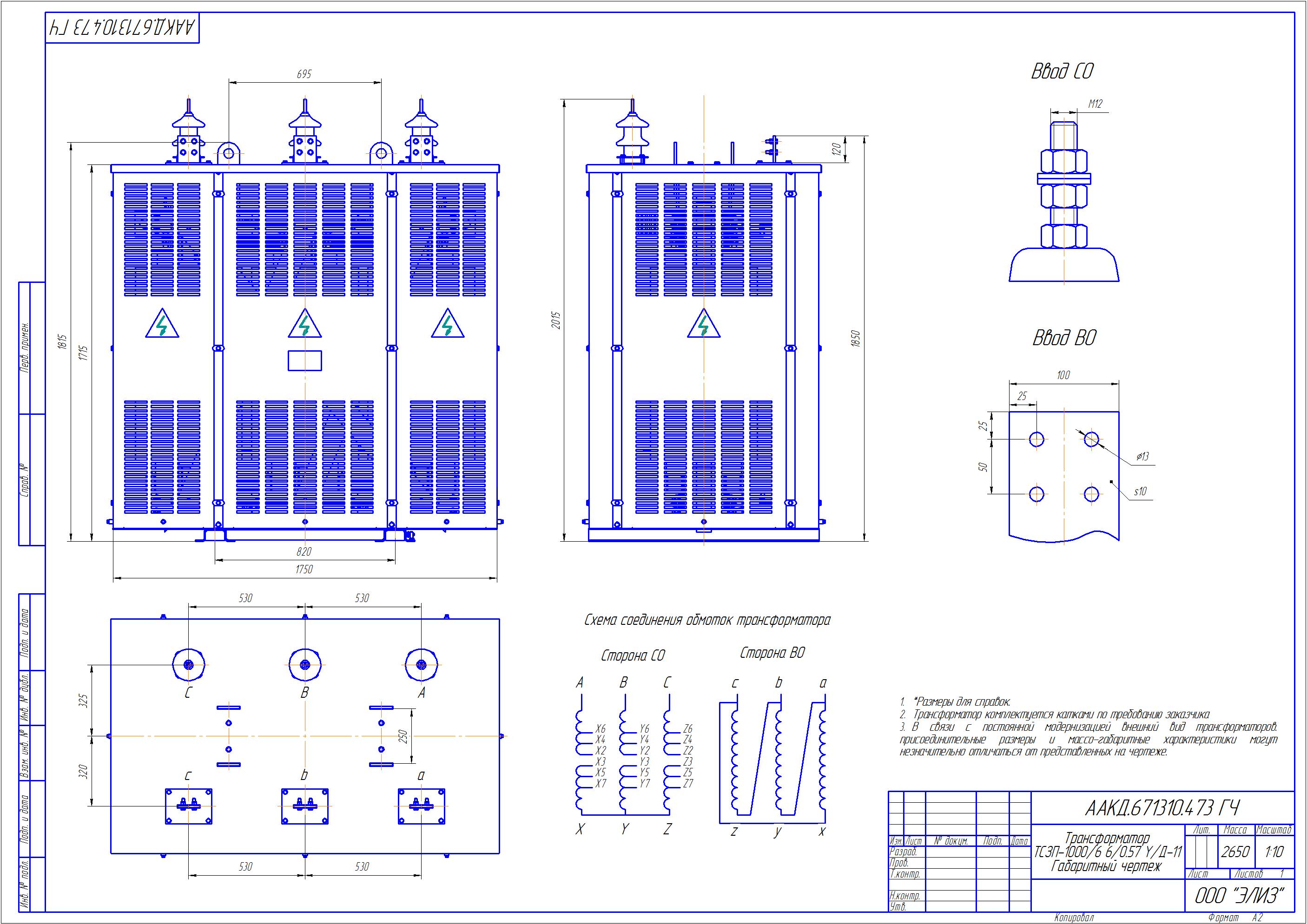

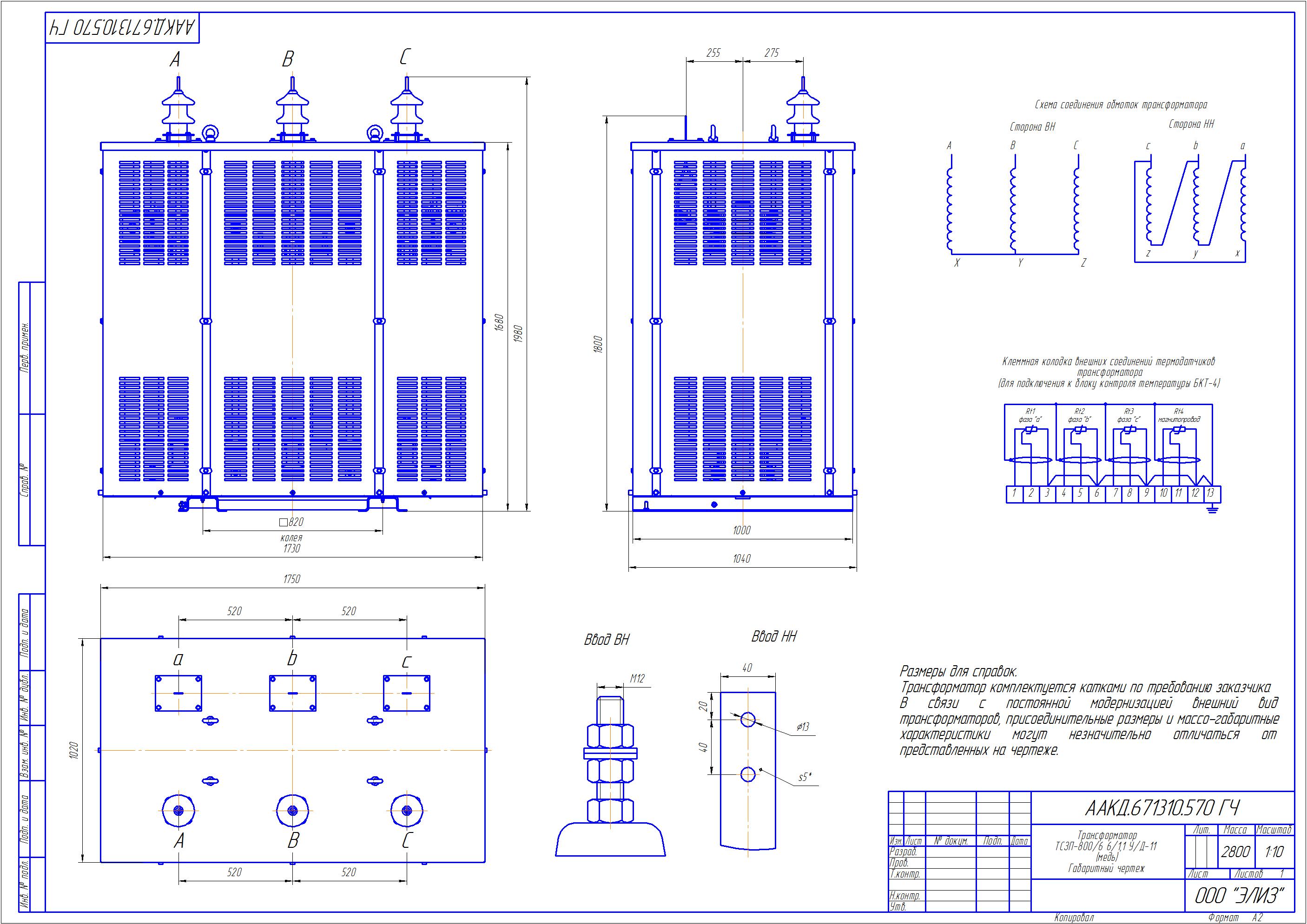

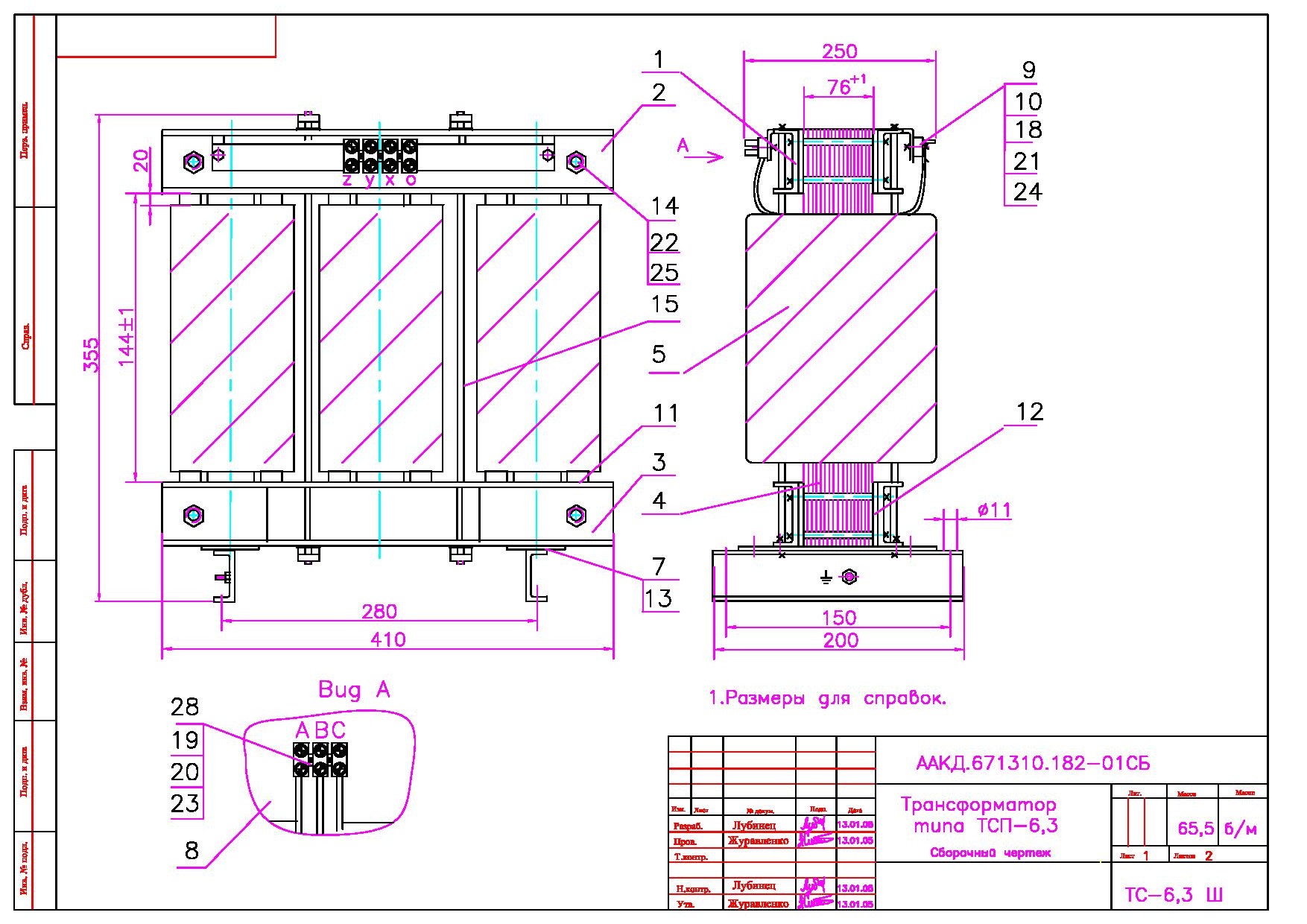

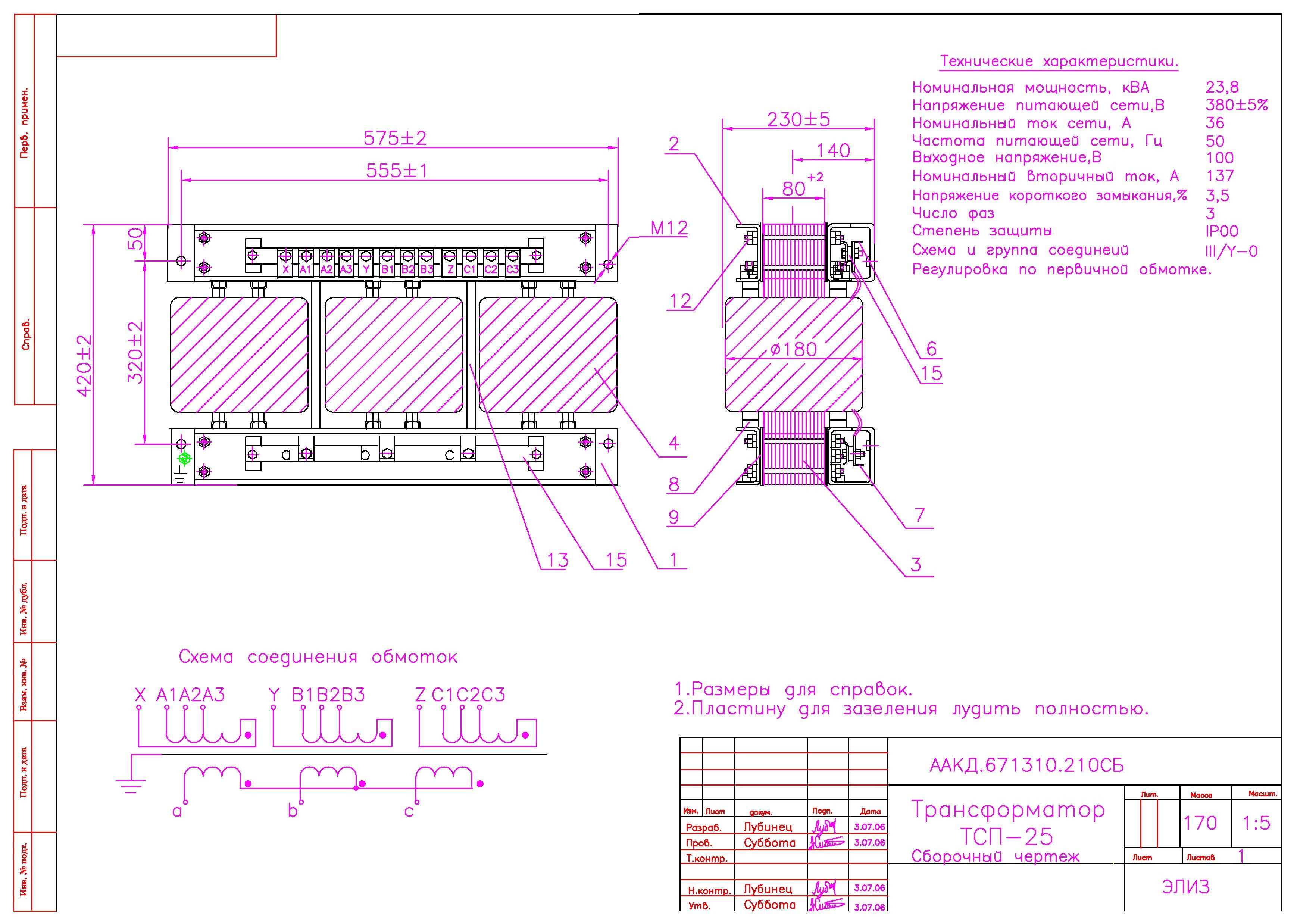

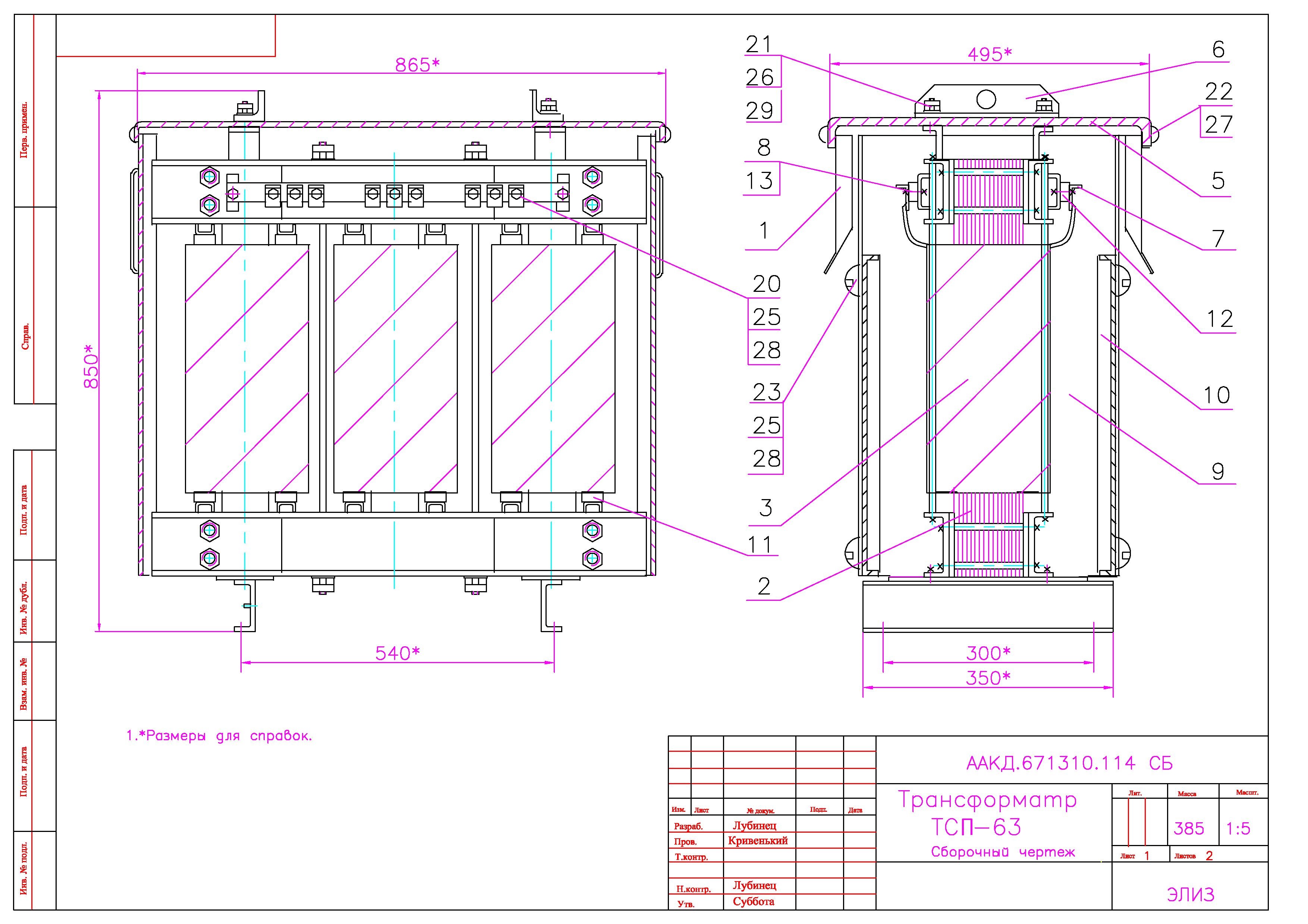

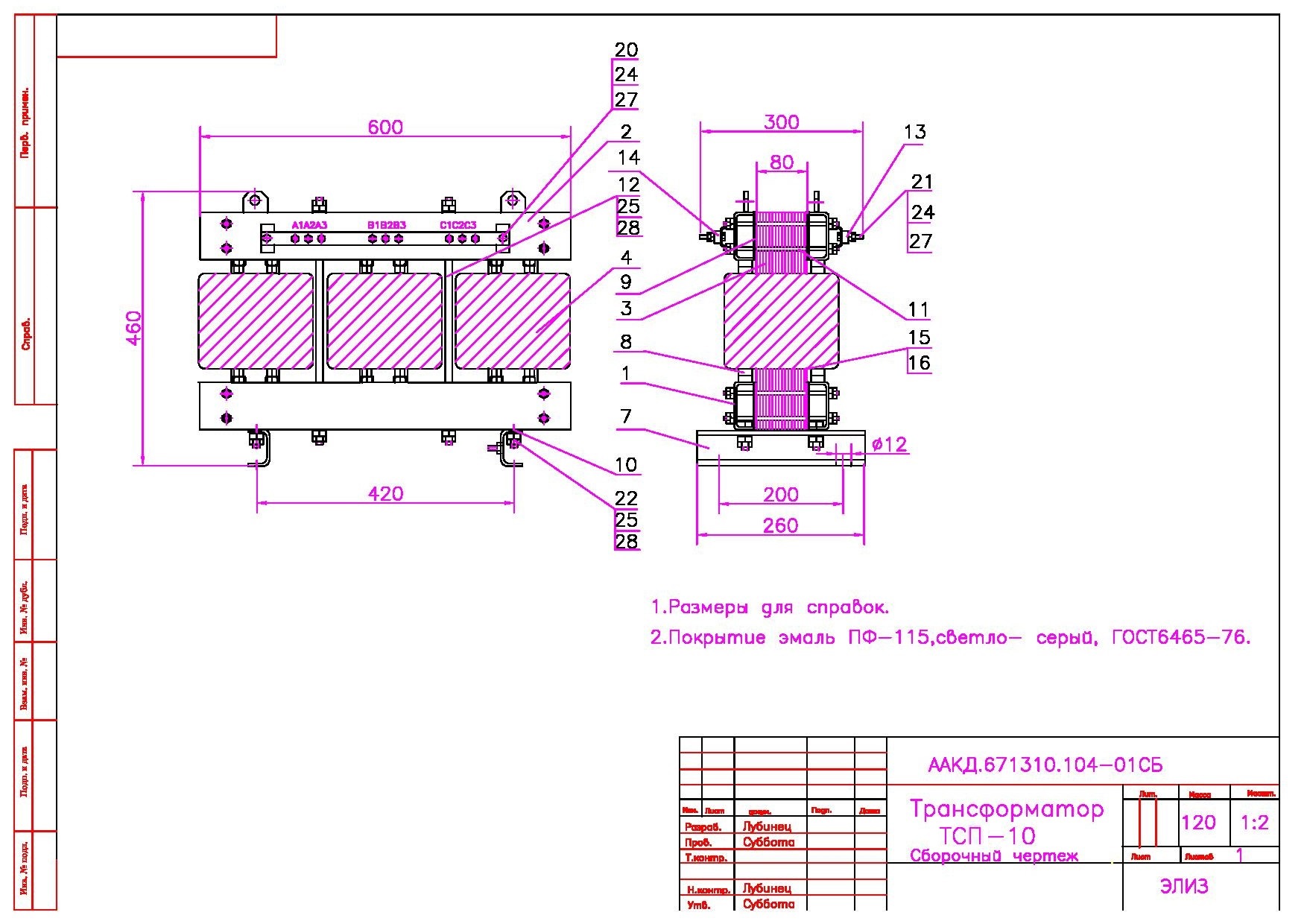

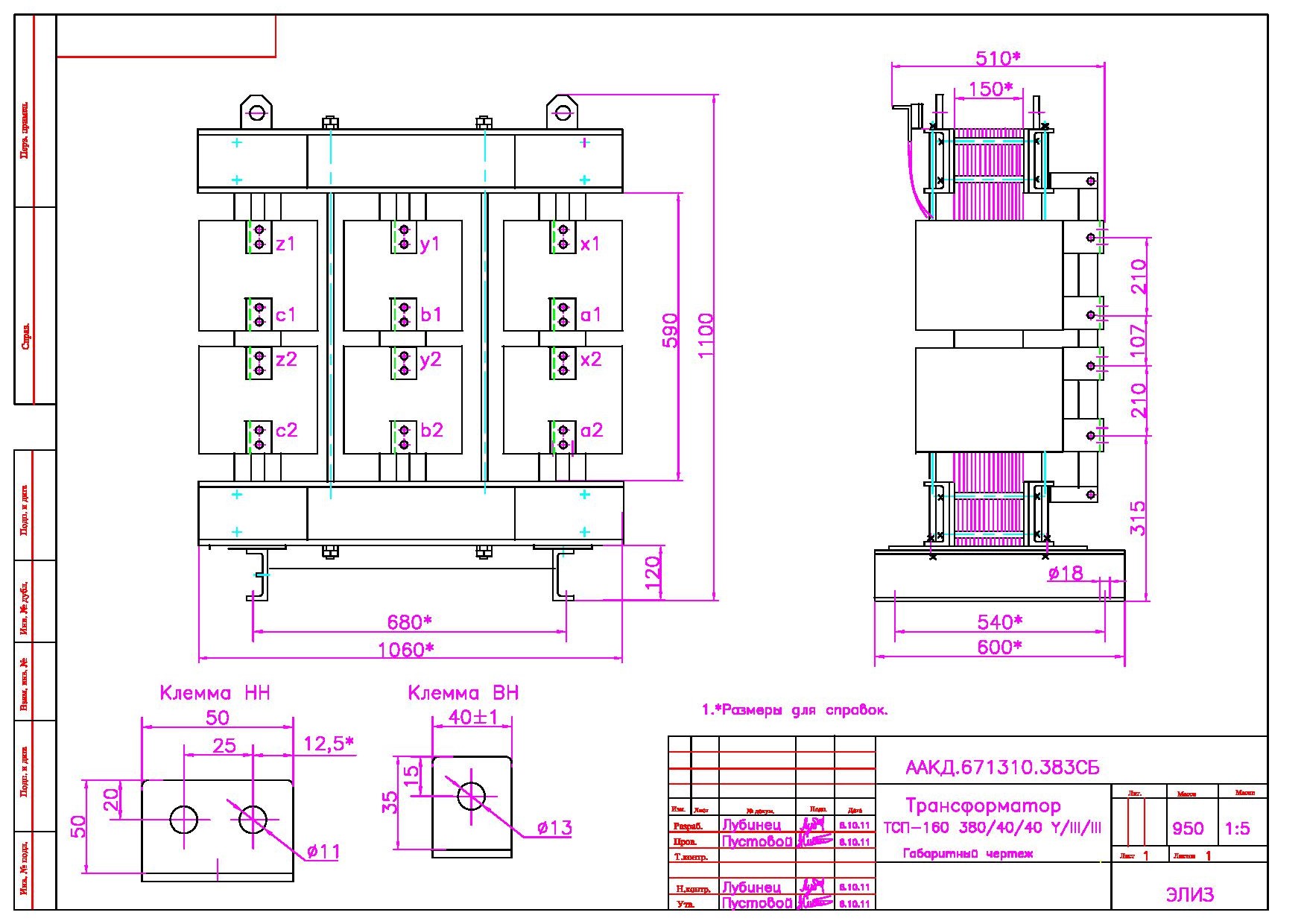

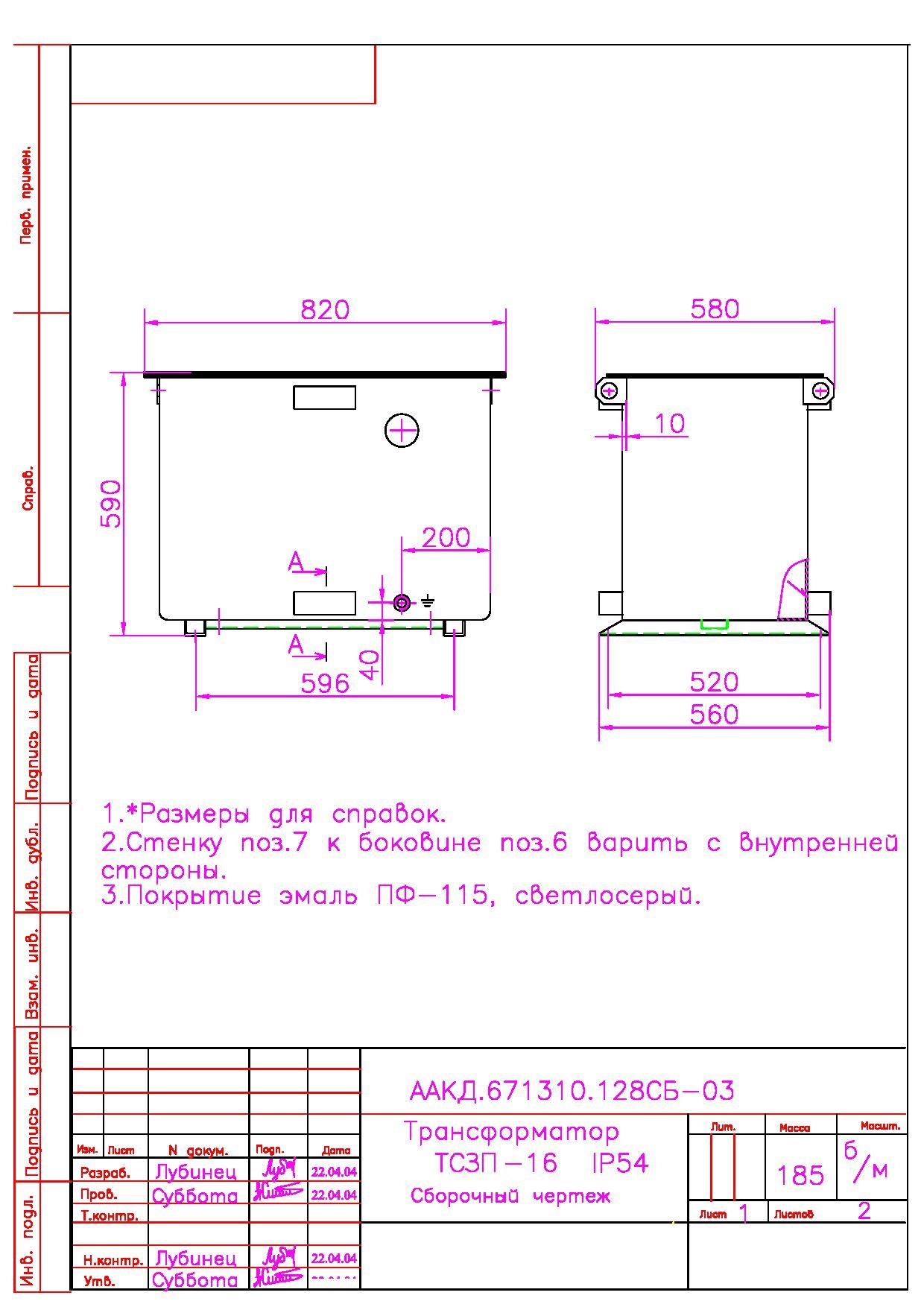

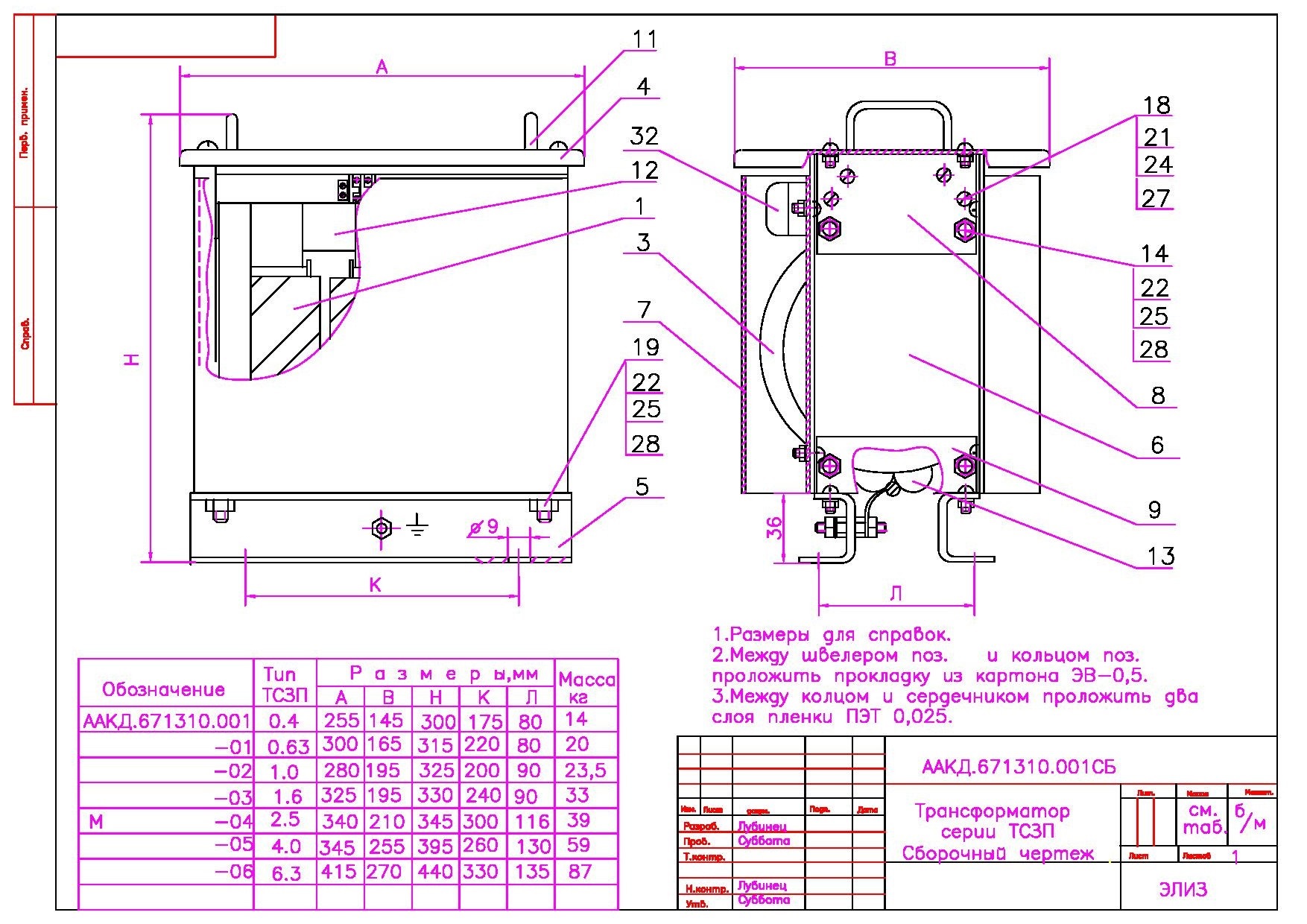

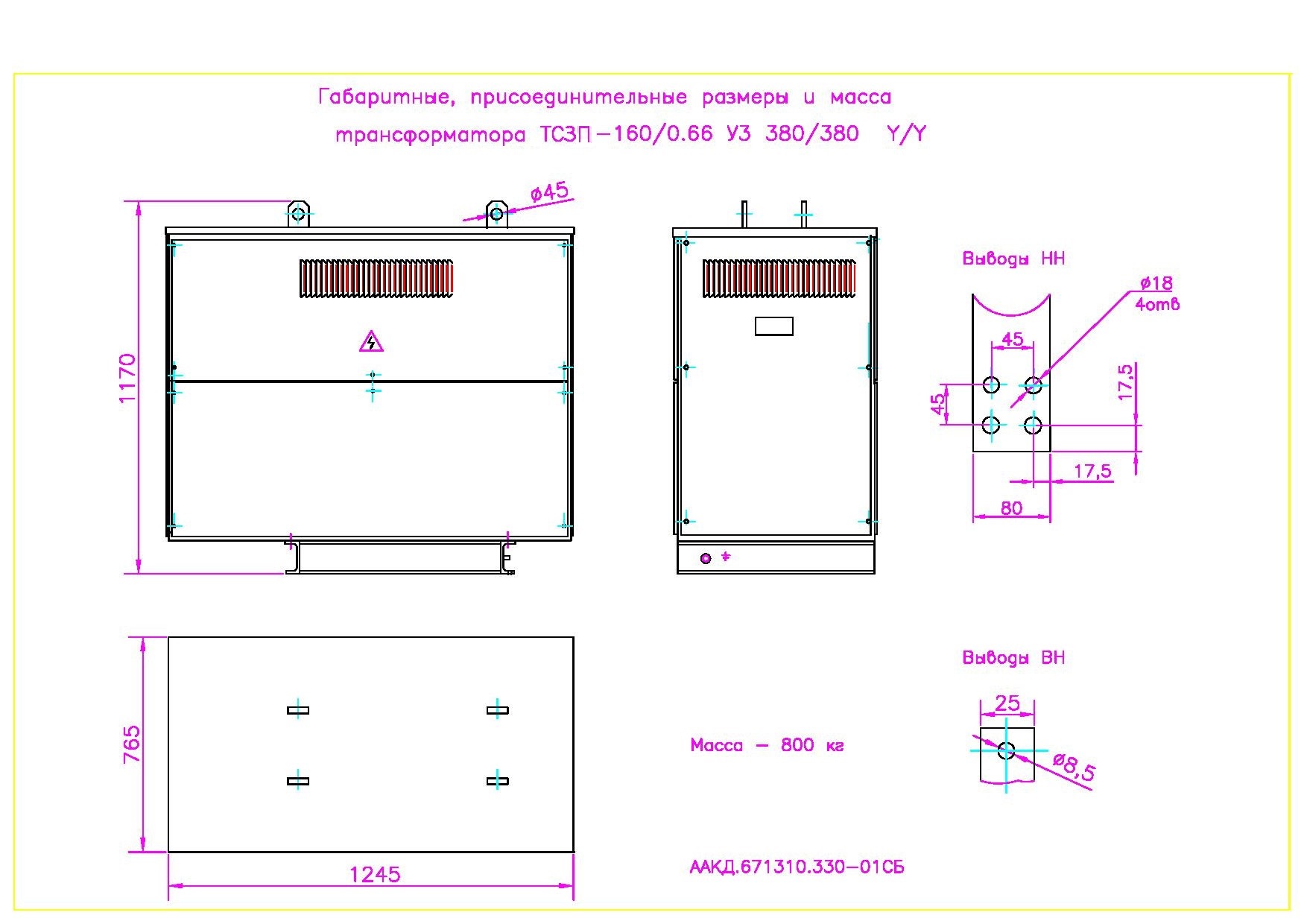

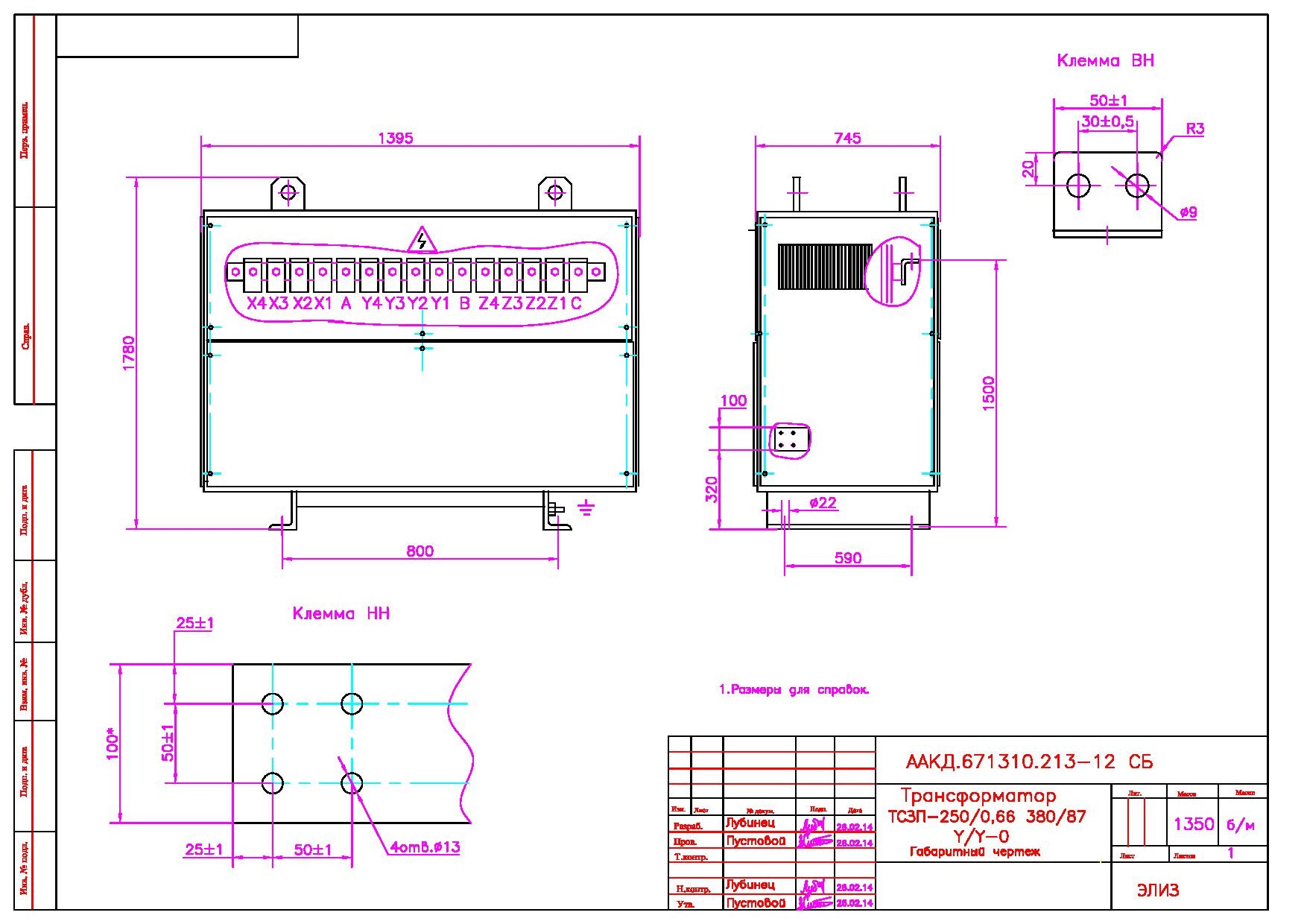

Dimentional drawings Type mark Rated power, kVA Rated voltage
  ТСЗП ТСЗВ HV windings, V LV vindings, V
  ТСЗ(P,V)-0,4-6,3/0,7   380; 400; 500; 660 205
    ТСЗ(P,V)-10/0,7 7,3 380; 400; 500; 660 205
    ТСЗ(P,V)-16/0,7 14,6 380; 400; 500; 660 410 / 205
      ТСЗ(P,V)-25/0,7 29,1 380; 400; 500; 660 410 / 205
32,7 380 102,5 - 60
      ТСЗ(P,V)-40/0,7
  ​    ТСЗ(P,V)-63/0,7 58 380; 400; 500; 660 410; 205
65,3 380 230
      ТСЗ(P,V)-100/0,7 93 380; 400; 660 205
104,4 380 230
      ТСЗ(P,V)-125/0,7 117 380; 400; 660 230
  ТСЗ(P,V)-160/0,7
    ТСЗ(P,V)-250/0,7
    ТСЗ(P,V)-800/0,7
    ТСЗ(P,V)-1000/0,7




The transformers are performed under TУ У 3.49-13608660-048-2000
The transformers are ГОСТ 16672-77 compliant.
