0,66kV ТС, ТСЗ, ОС, ОСЗ type transformers

0,66kV ТС, ТСЗ, ОС, ОСЗ type transformers

  The transformers are designed for installation into general-purpose electric devices, for various fields of industry, agriculture, urban municipal services etc.

Rated power, kVA Drawing + Dimetions ТС, LхWхH, mm Drawing + Dimentions ТСЗ, LхWхH, mm Weight ТС, kg Weight ТСЗ, kg

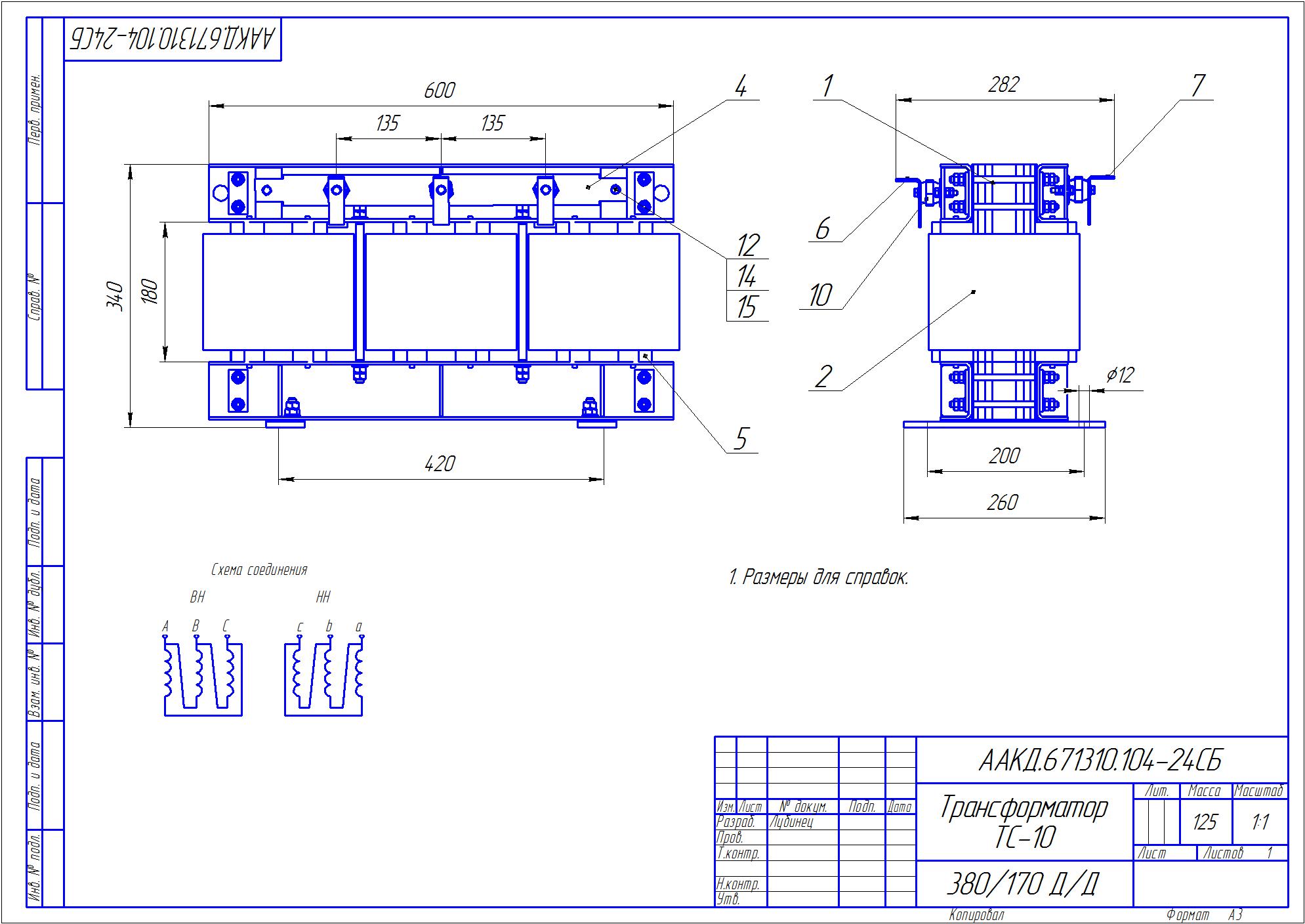

10 600 х 282 х 340   125
16 645 х 260 х 525   135

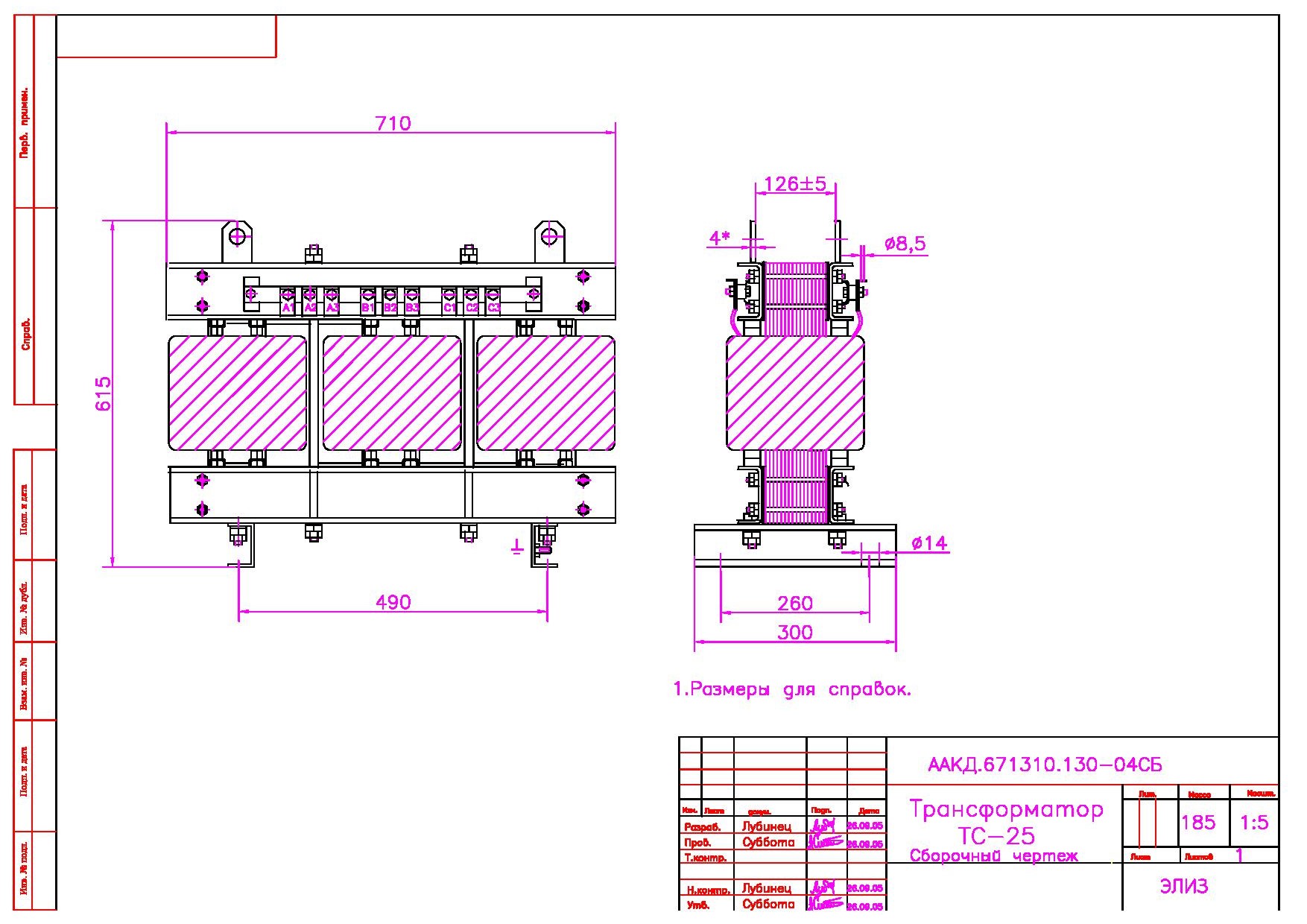

25  710 x 300 x 615  780 х 470 х 685 185 210

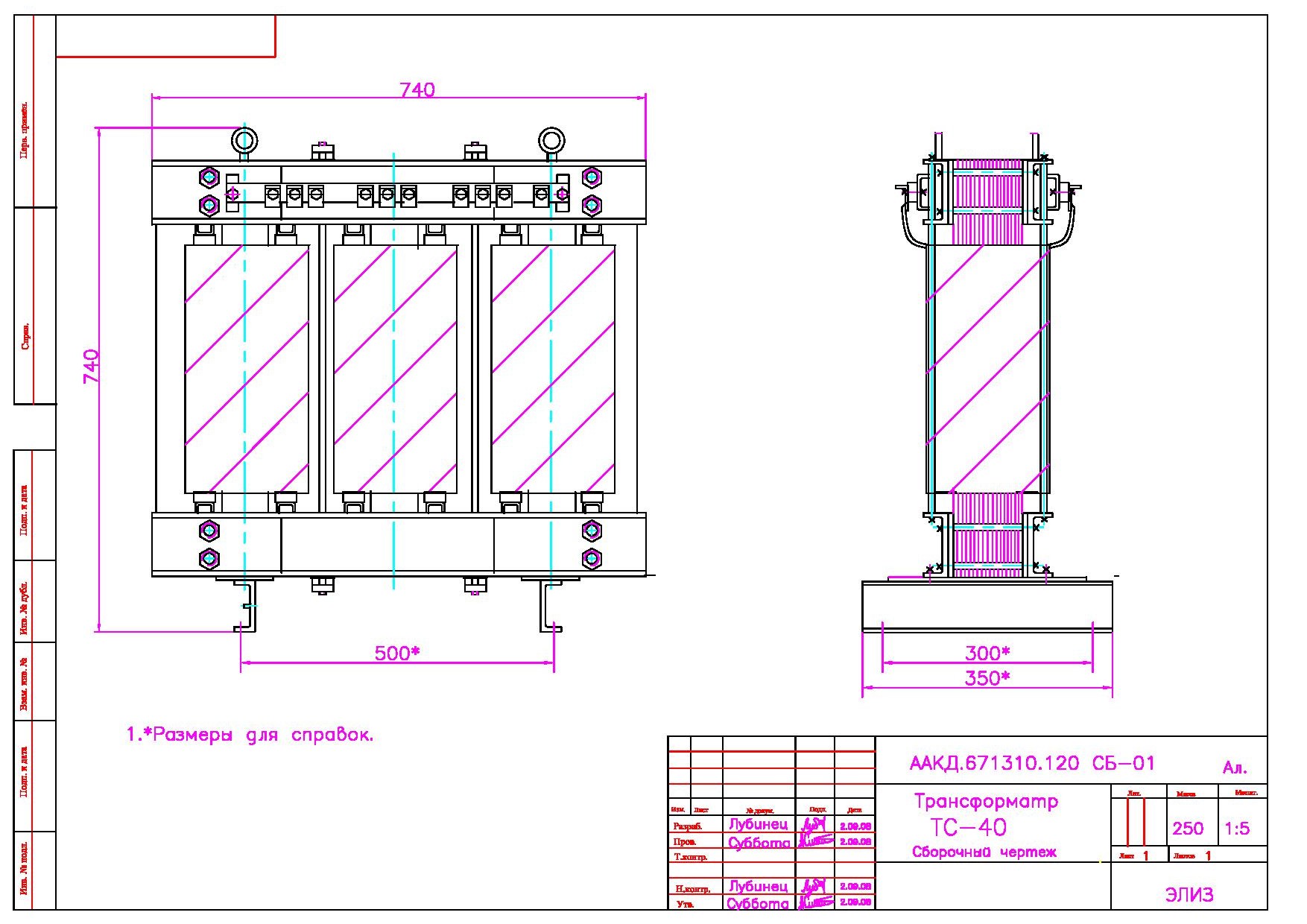

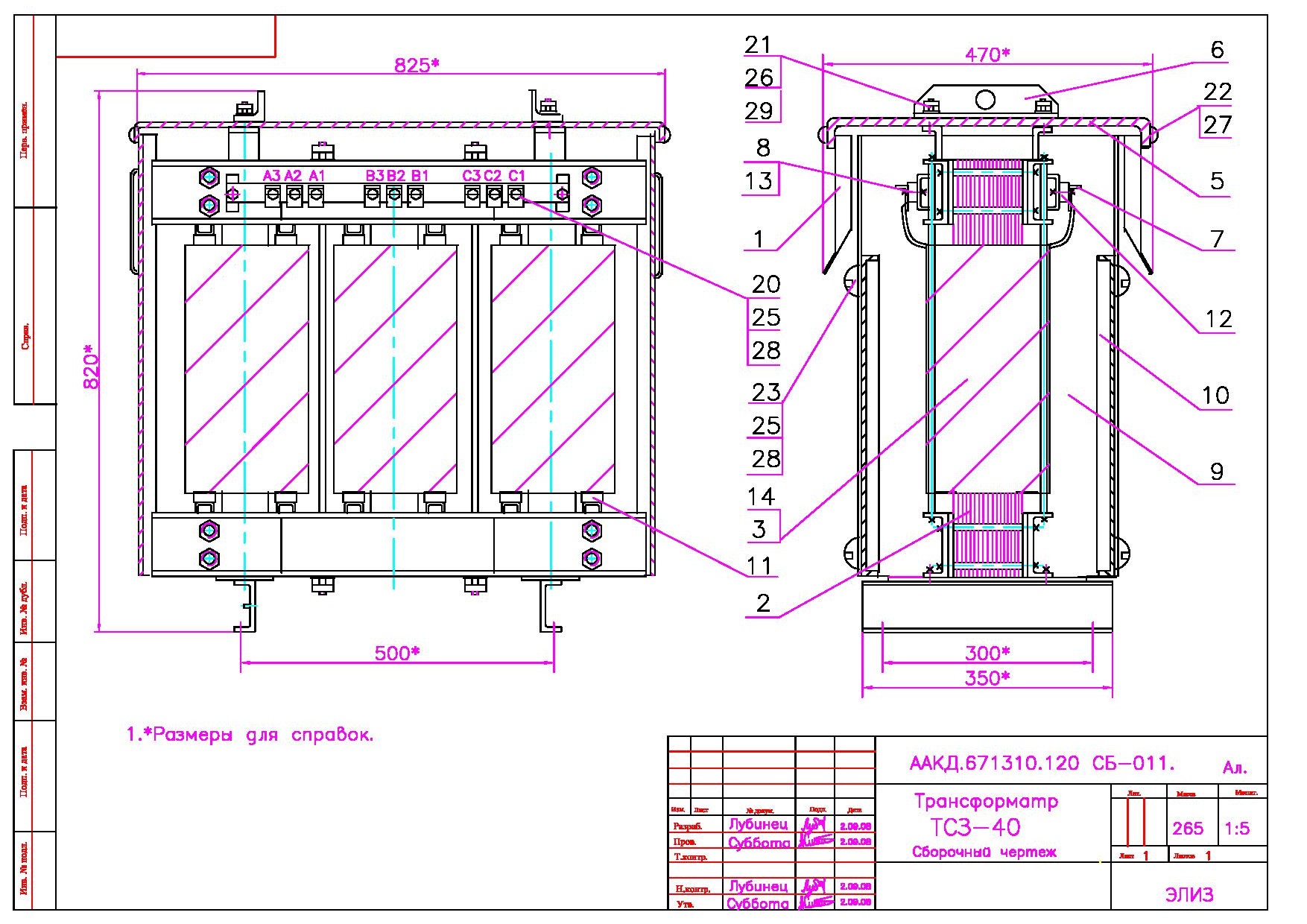

40  600 х 282 х 340  825 х 470 х 820 225 265

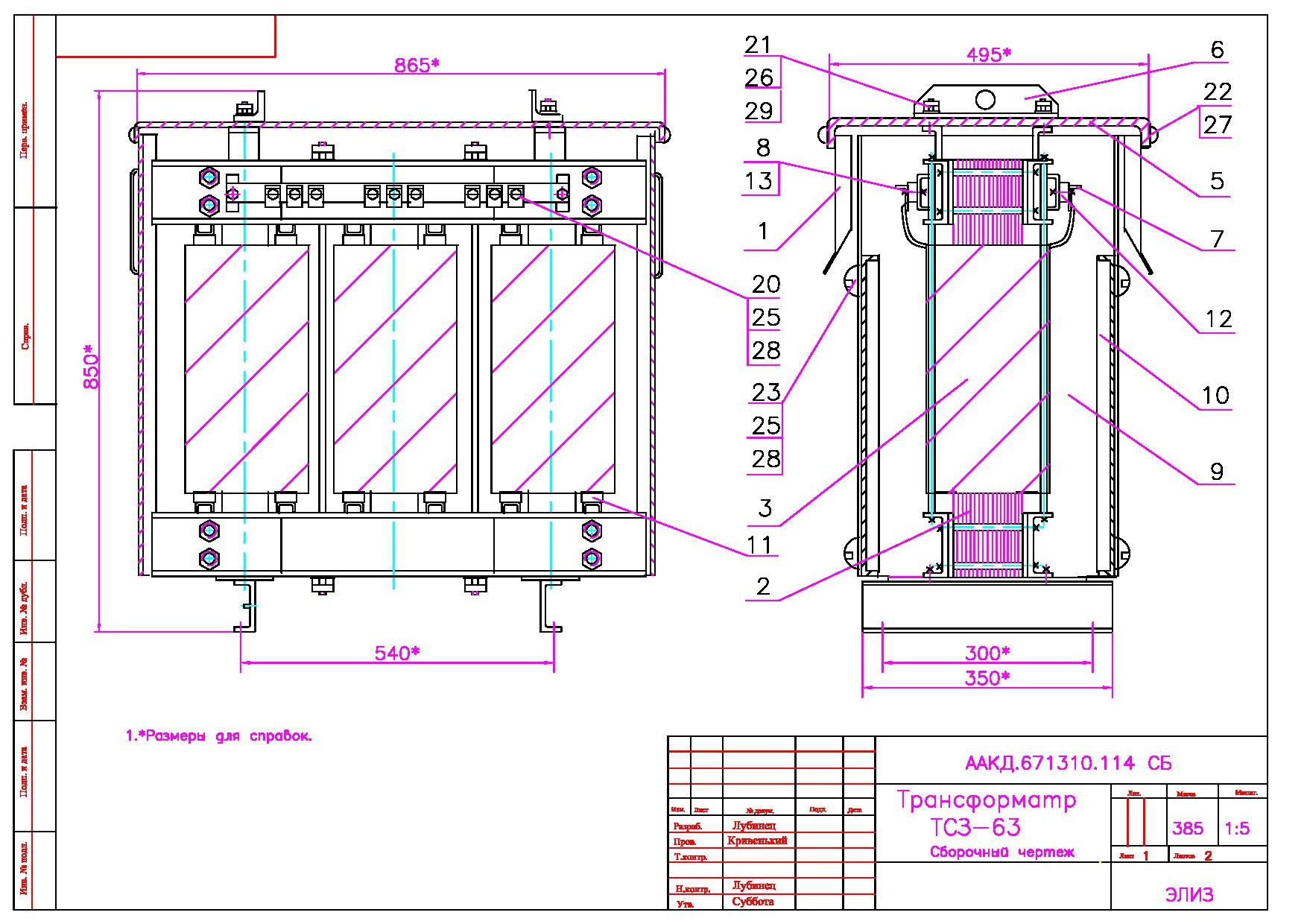

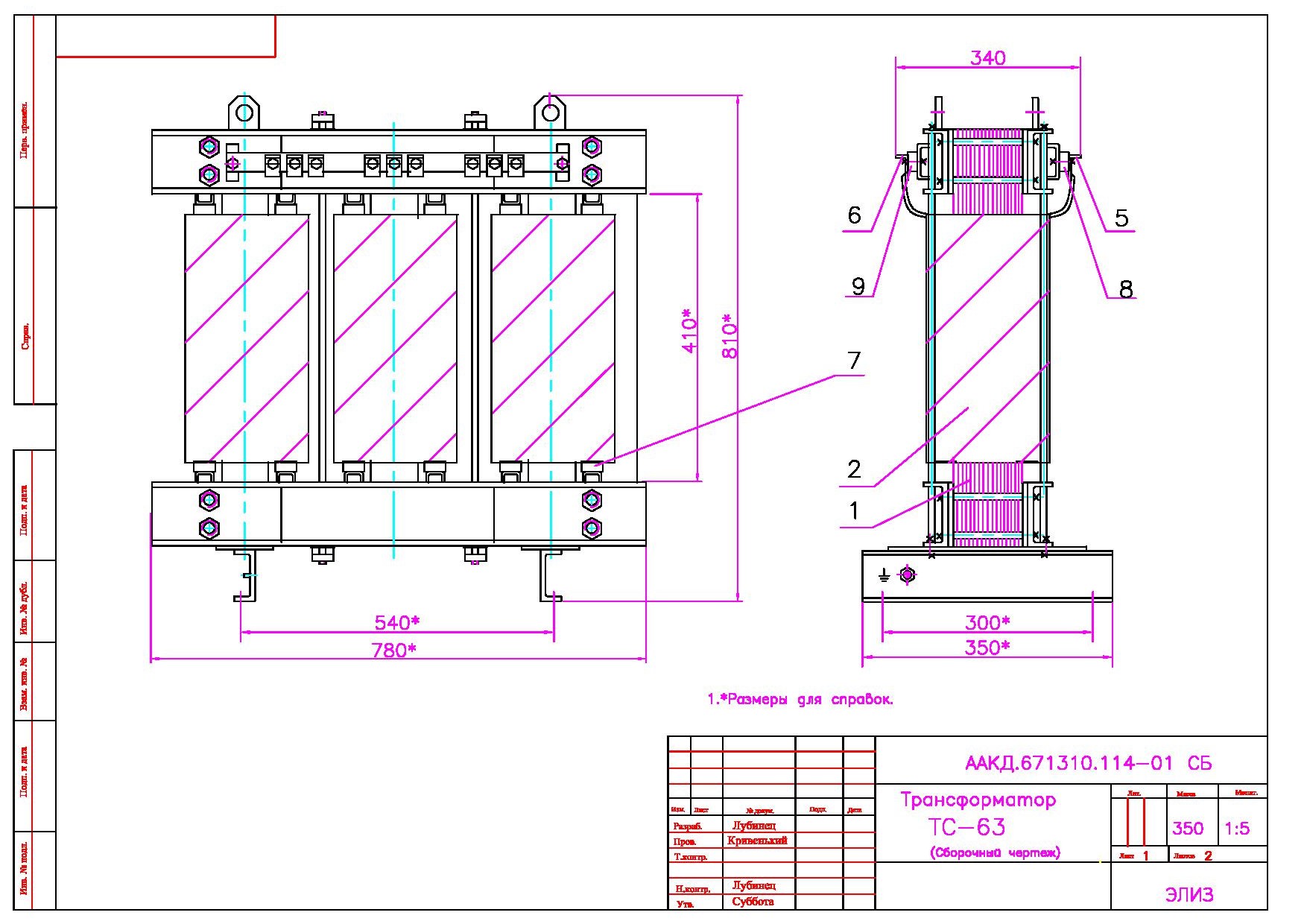

63  780 х 350 х 810  865 х 495 х 850 350 385

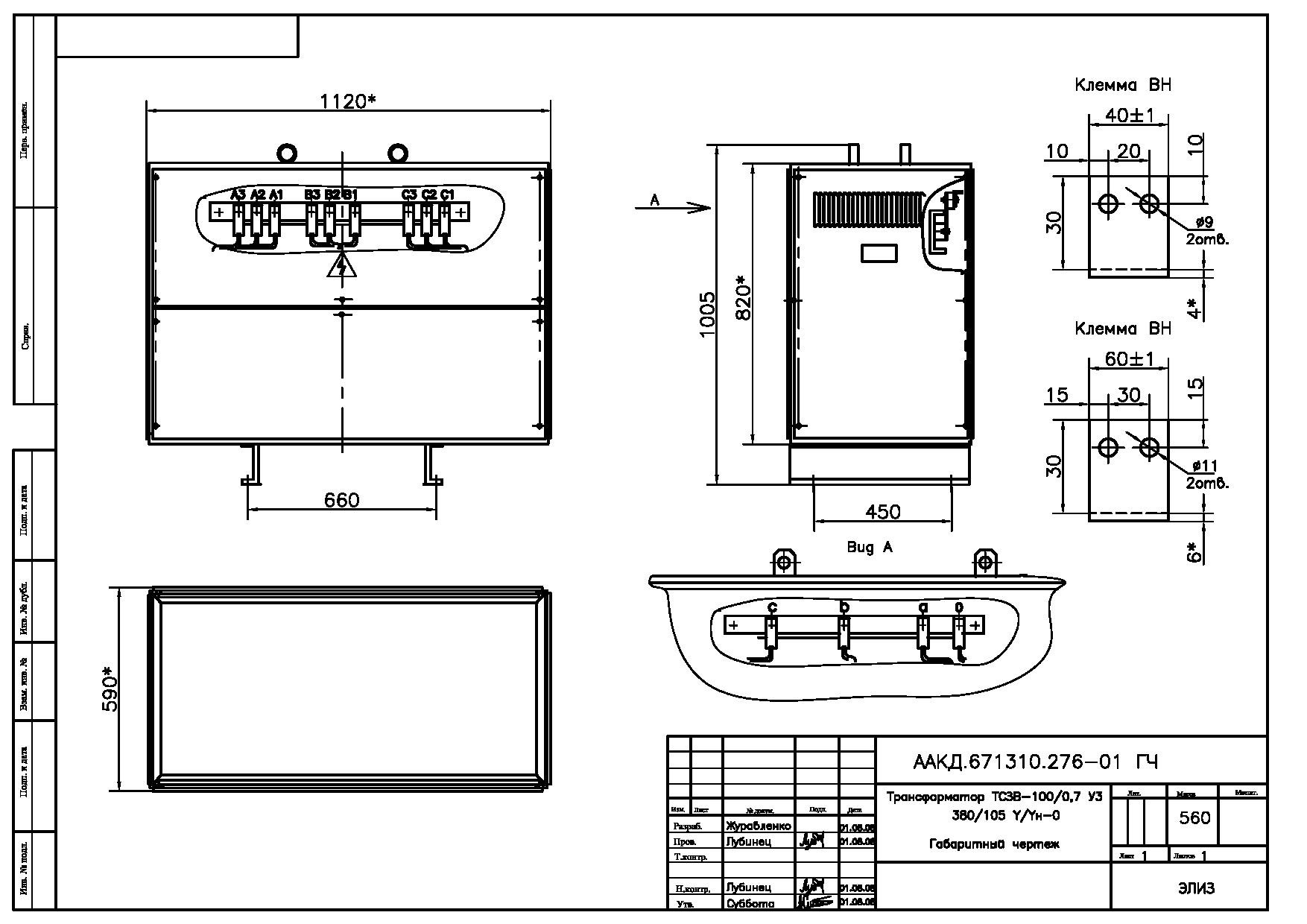

100    1120 х 590 х 1005   560

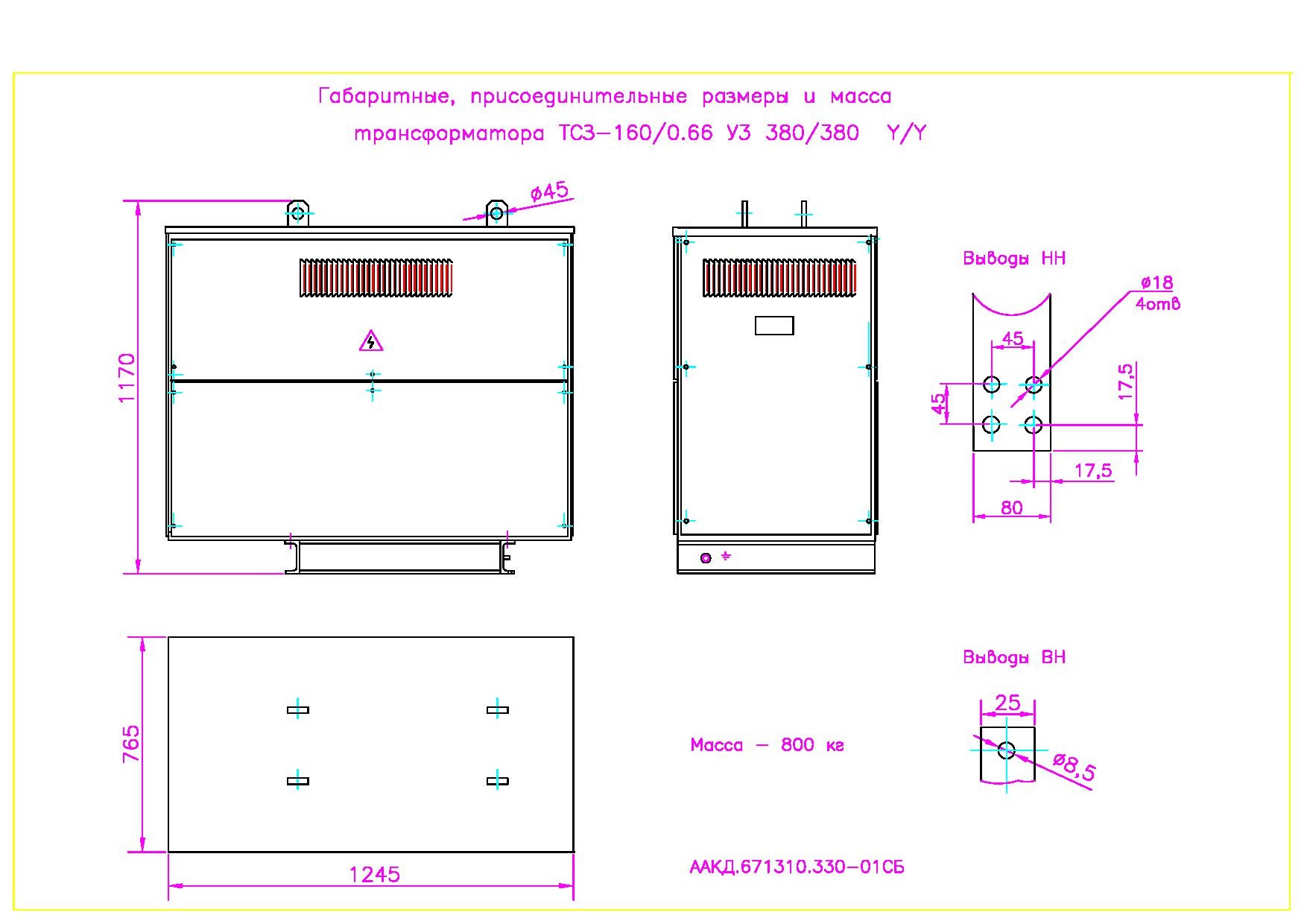

160    1245 х 765 х 1170   800

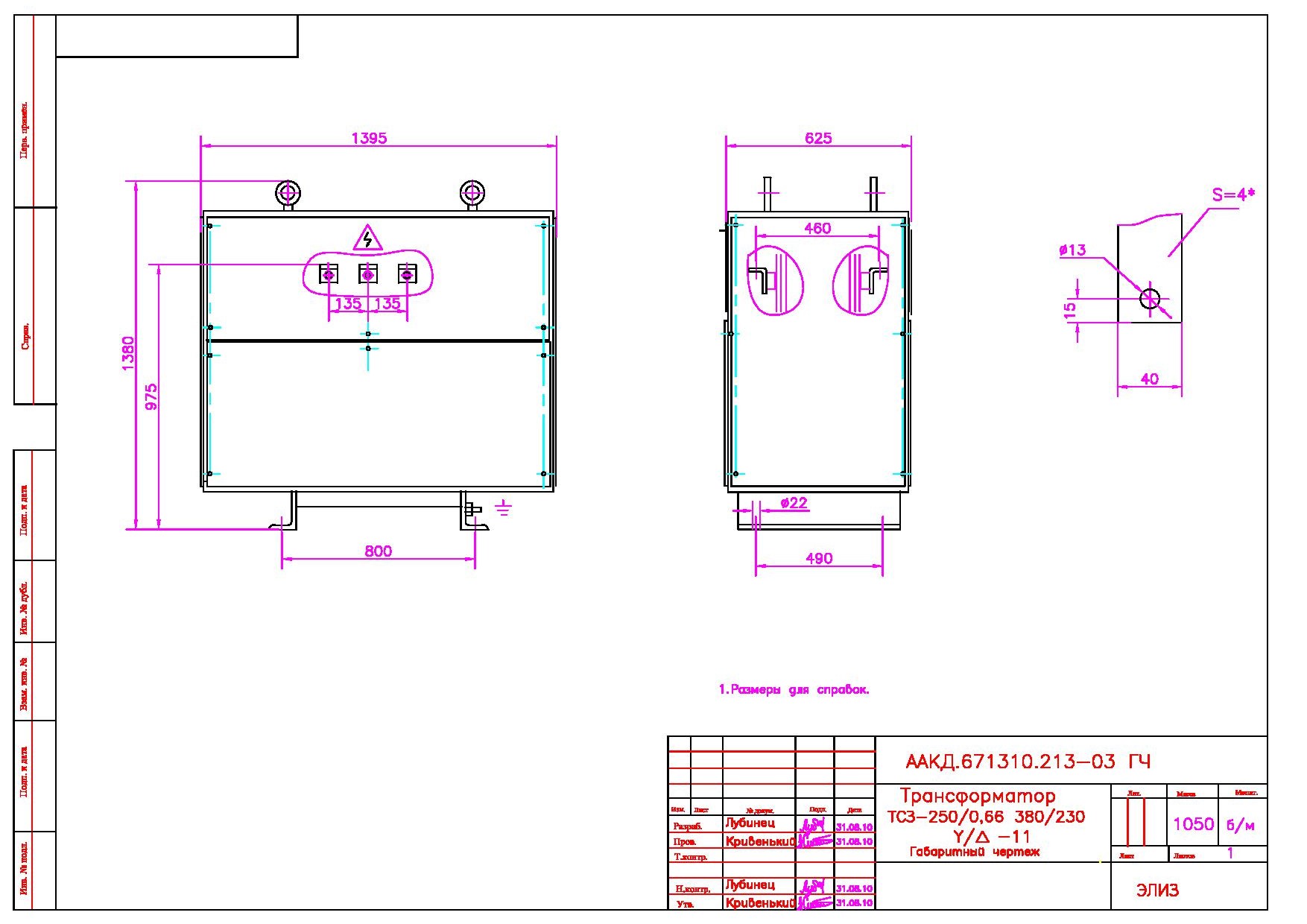

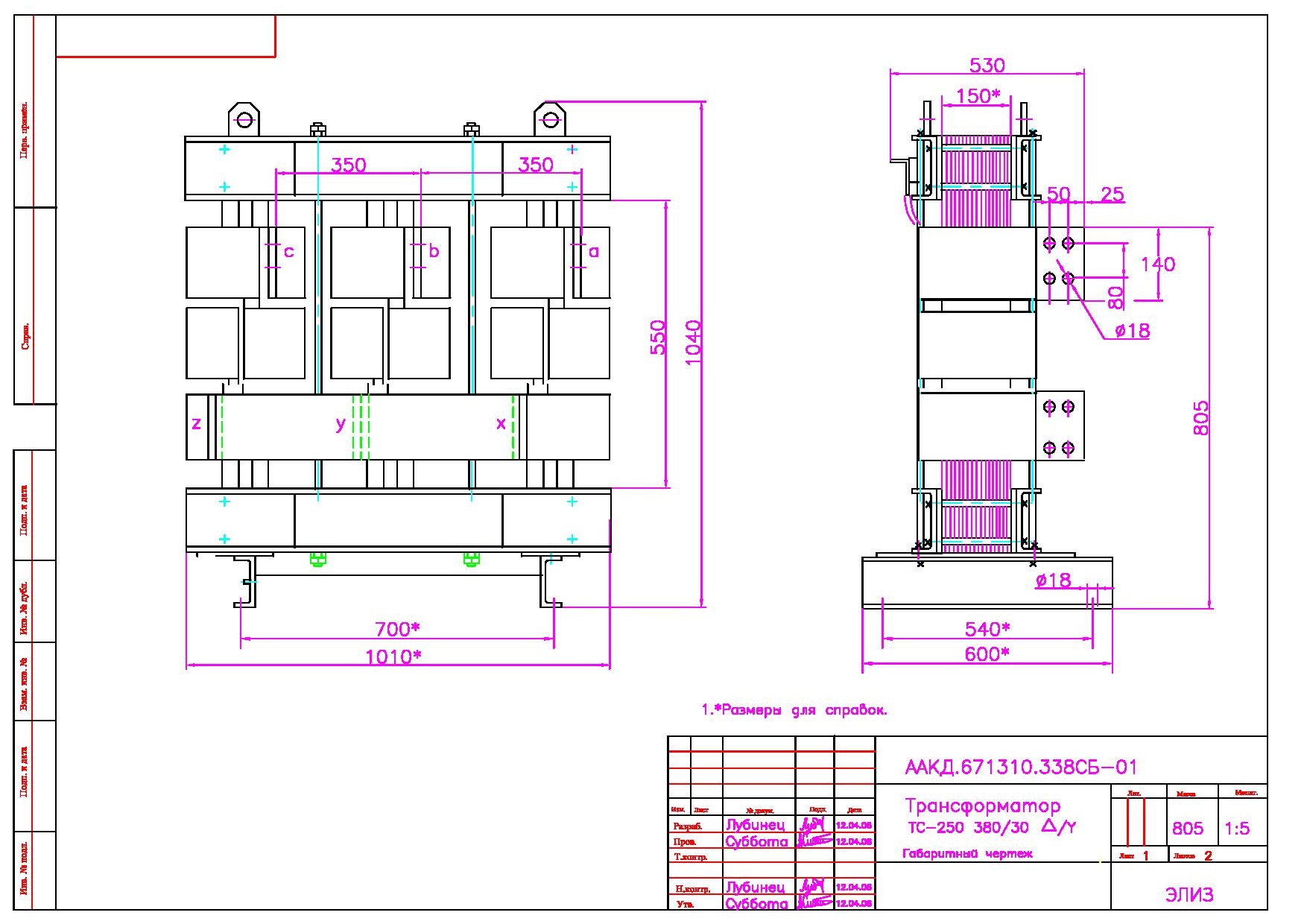

250  1010 х 600 х 1040  1395 х 625 х 1380 805 1050

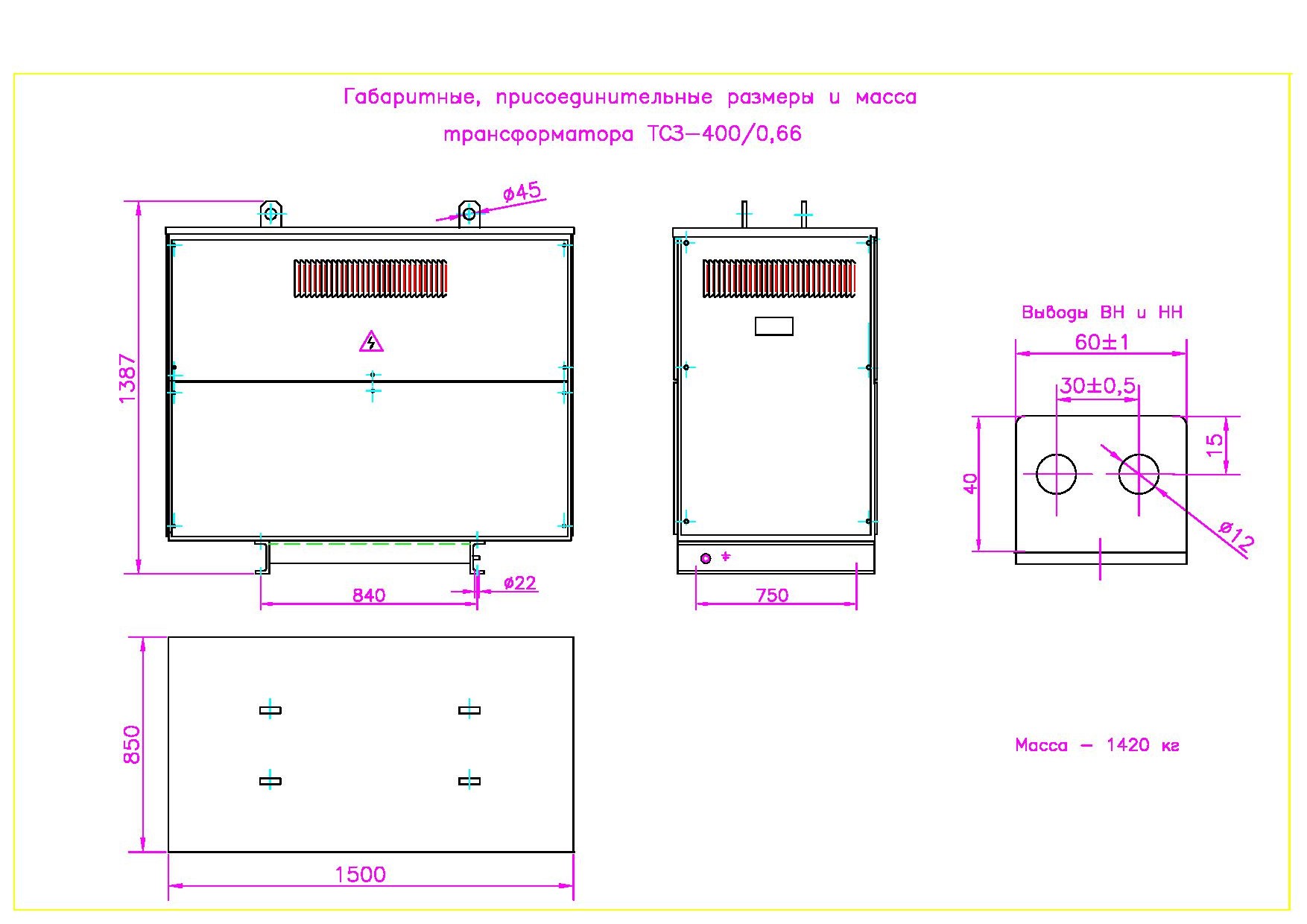

400    1500 х 850 х 1387   1420

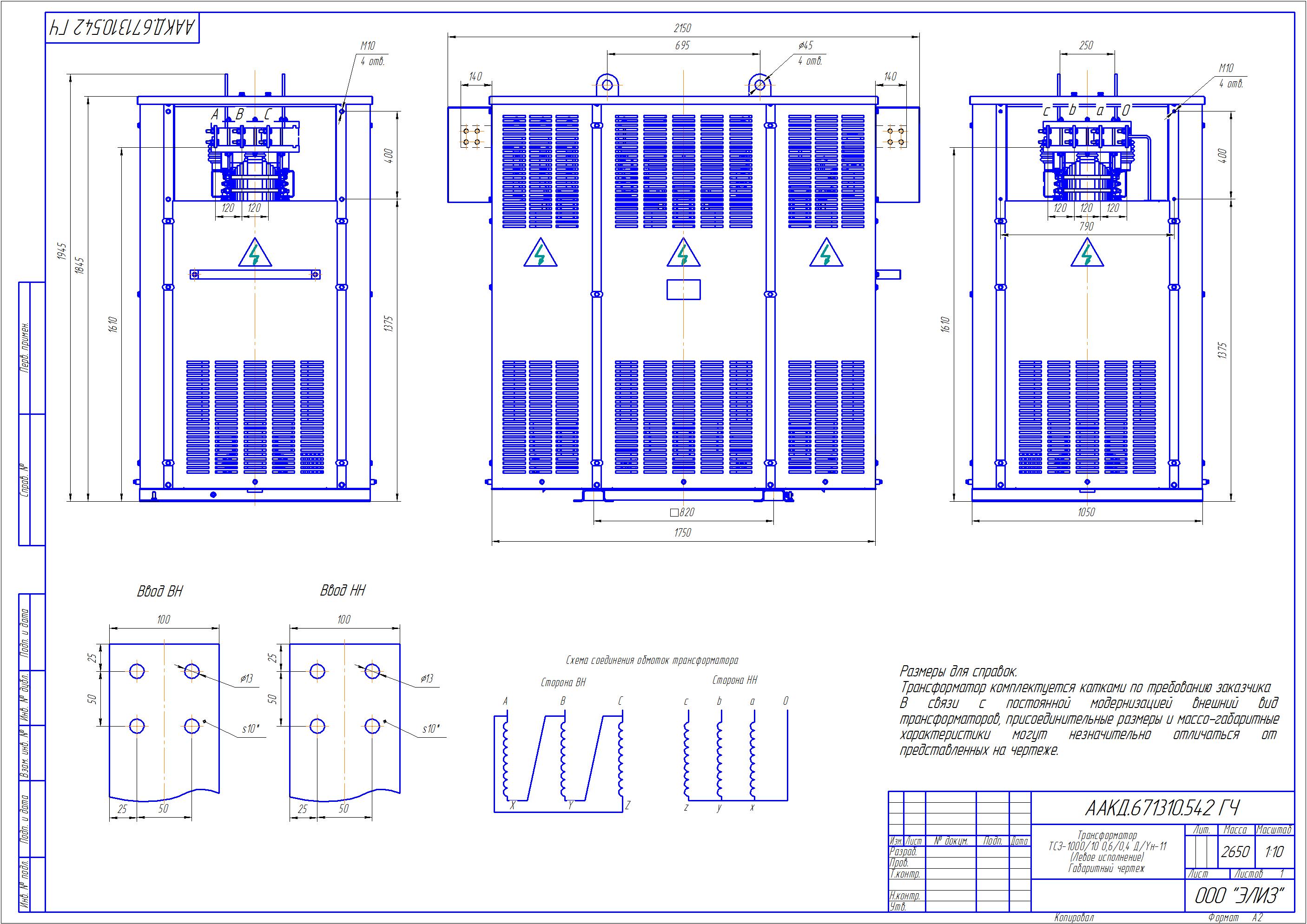

1000    2150 х 1050 х 1945   2650




The rated incoming voltage, V – 380÷660
The rated outgoing voltage, V – 36÷660
The transformers are made under TУ У 3.49-13608660-047-2000
The transformers are ГОСТ 11677 compliant.
  As per agreement with a customer, transformers with up to 1000 kVA rated power, and with parameters differ of the listed in the table below, may be manufactured.

As per agreement with a customer, transformers of open version (ТС type) may be manufactured.
  The protection degree (ГОСТ 14254) - IP00, IP21 as standard version up to IP34 after agreement with a customer.
  As per agreement with a customer, single-phase low-voltage transformers of ОС, ОСЗ type, with up to 1000 kVA rated power, may be manufactured.
