6-10kV Three-phase transformers ТСКС type

6-10kV Three-phase transformers ТСКС type

  Three-phase dry transformers of ТСКС type are special - purpose, has natural air cooling and designed for feeding switchgears own needs (КРУ cabinets).
Protection degree - IP00 under ГОСТ 14254.
  Power range: 10 – 40 kVA, HV voltage 6-10,5kV and LV voltage 0,23-0,4kV.
Windings scheme and connection group Y/Yn-0.
Please fill and agree with us the questionnaire: [attachment=22].


ТСКС TECHNICAL AND DIMENTIONAL (WEIGHT) DATA

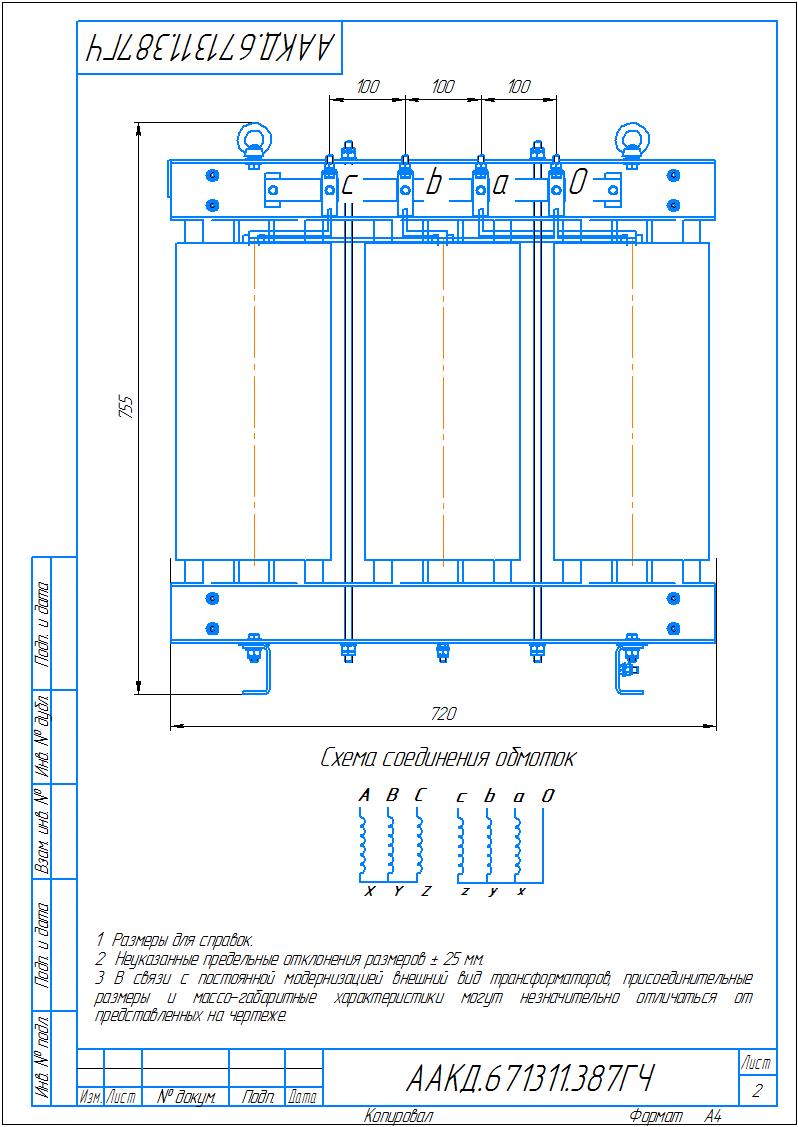

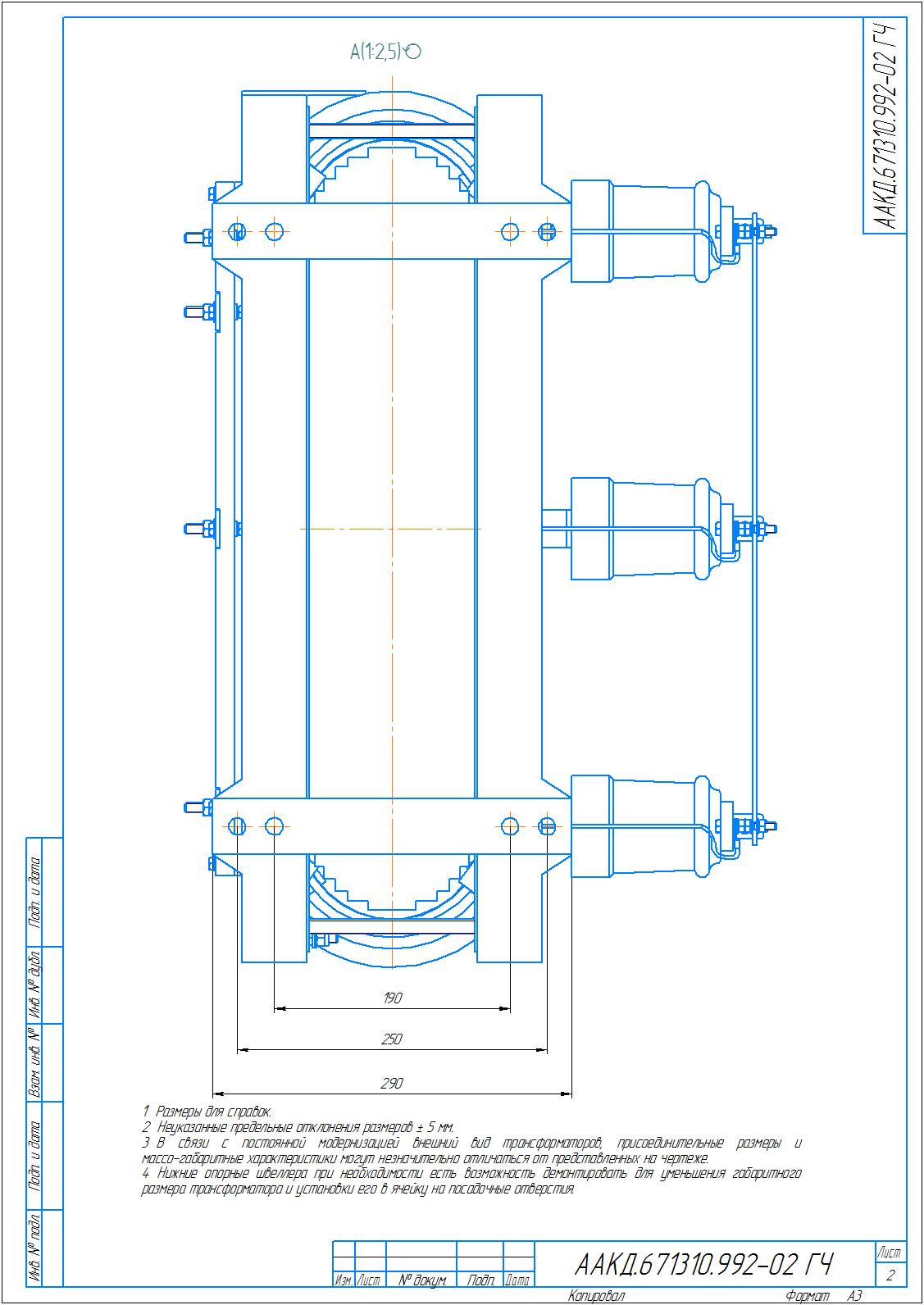

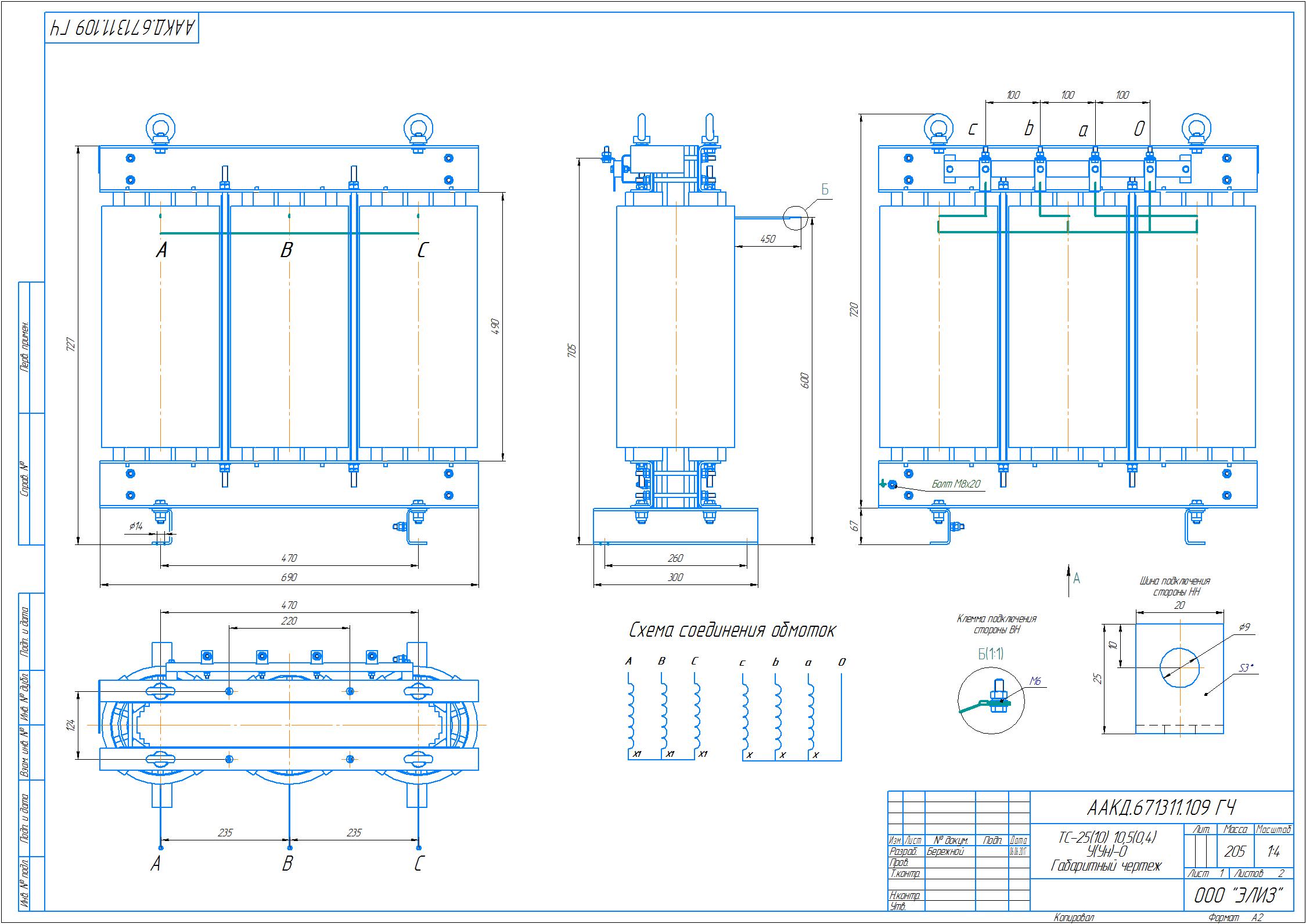

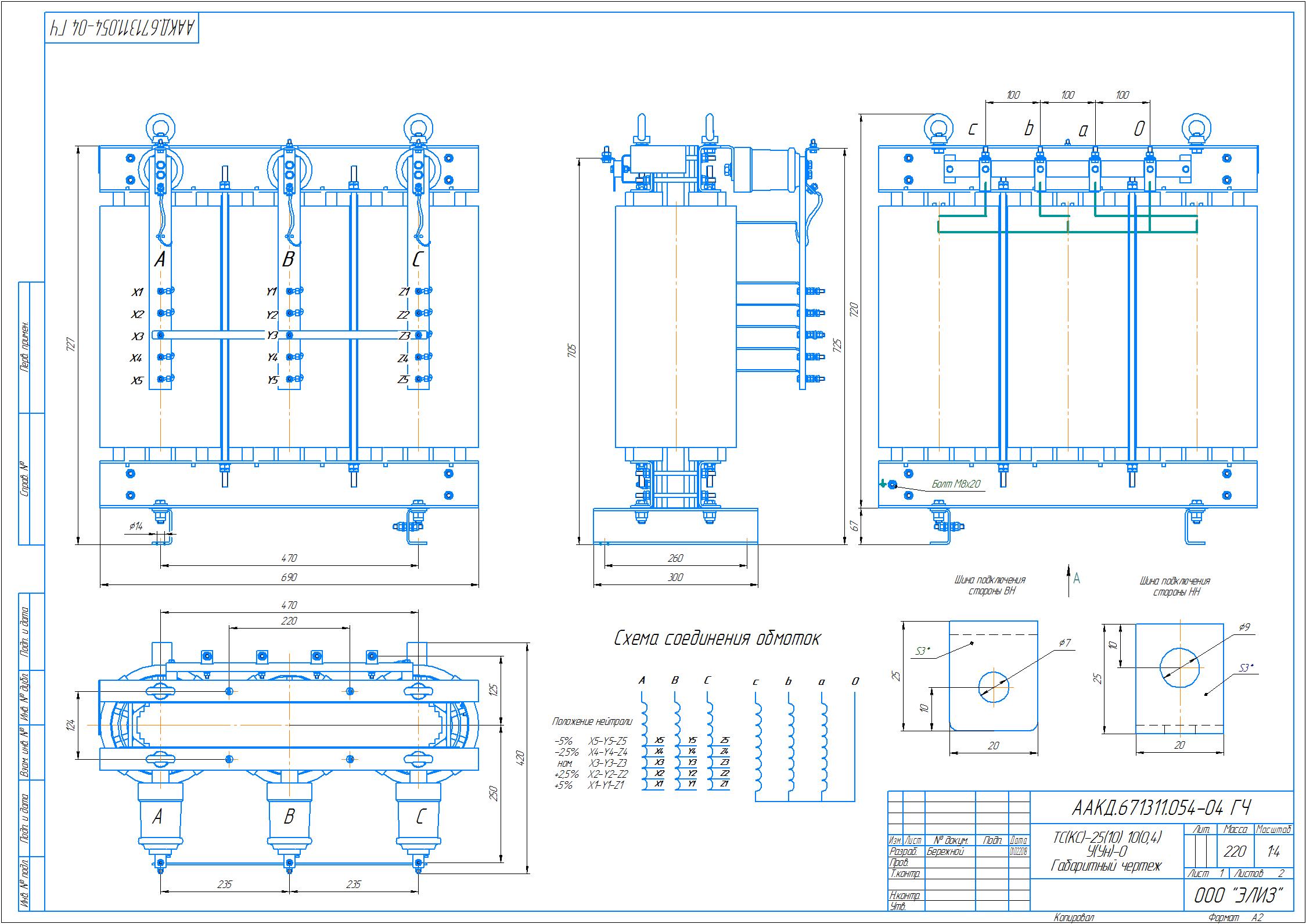

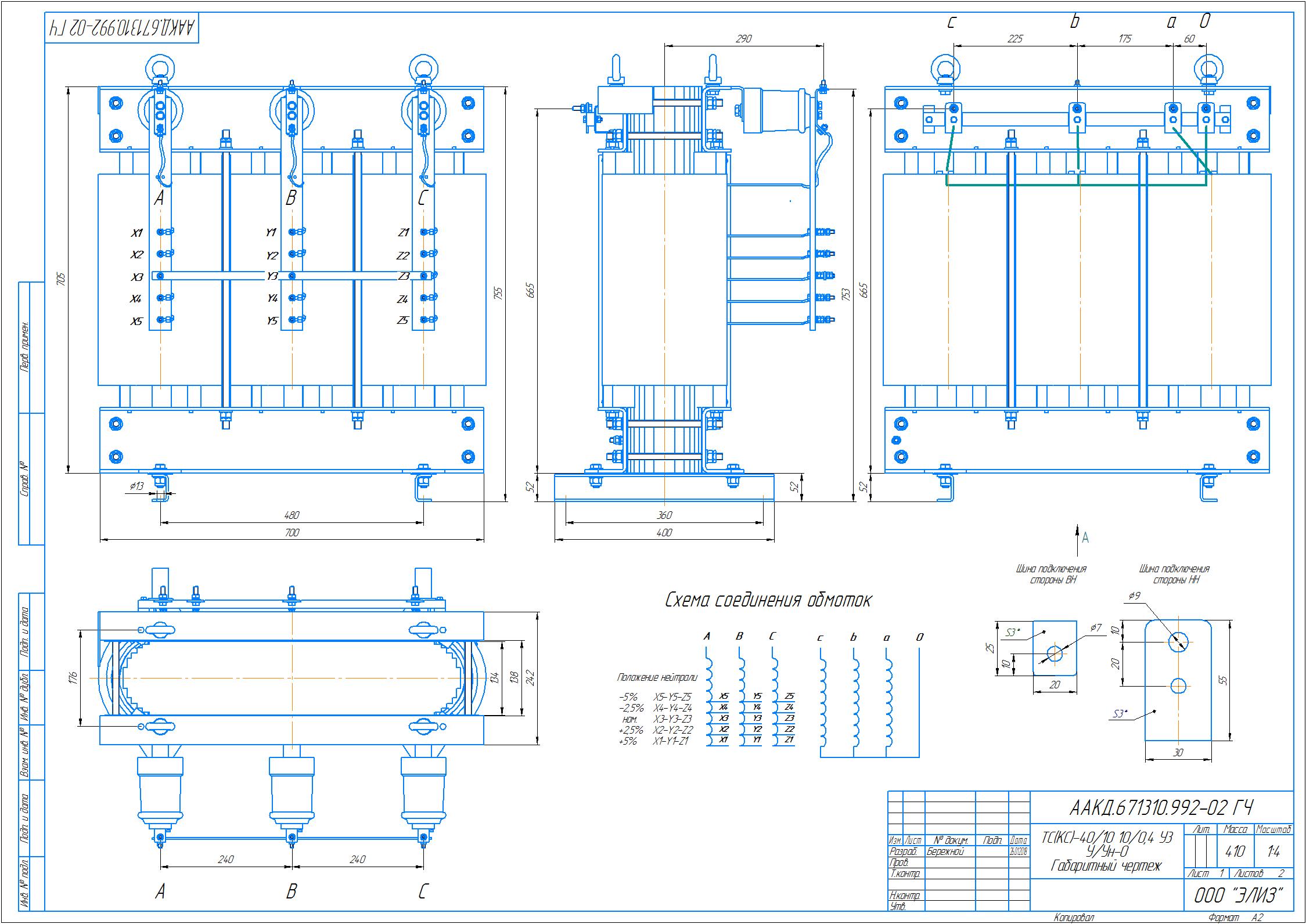

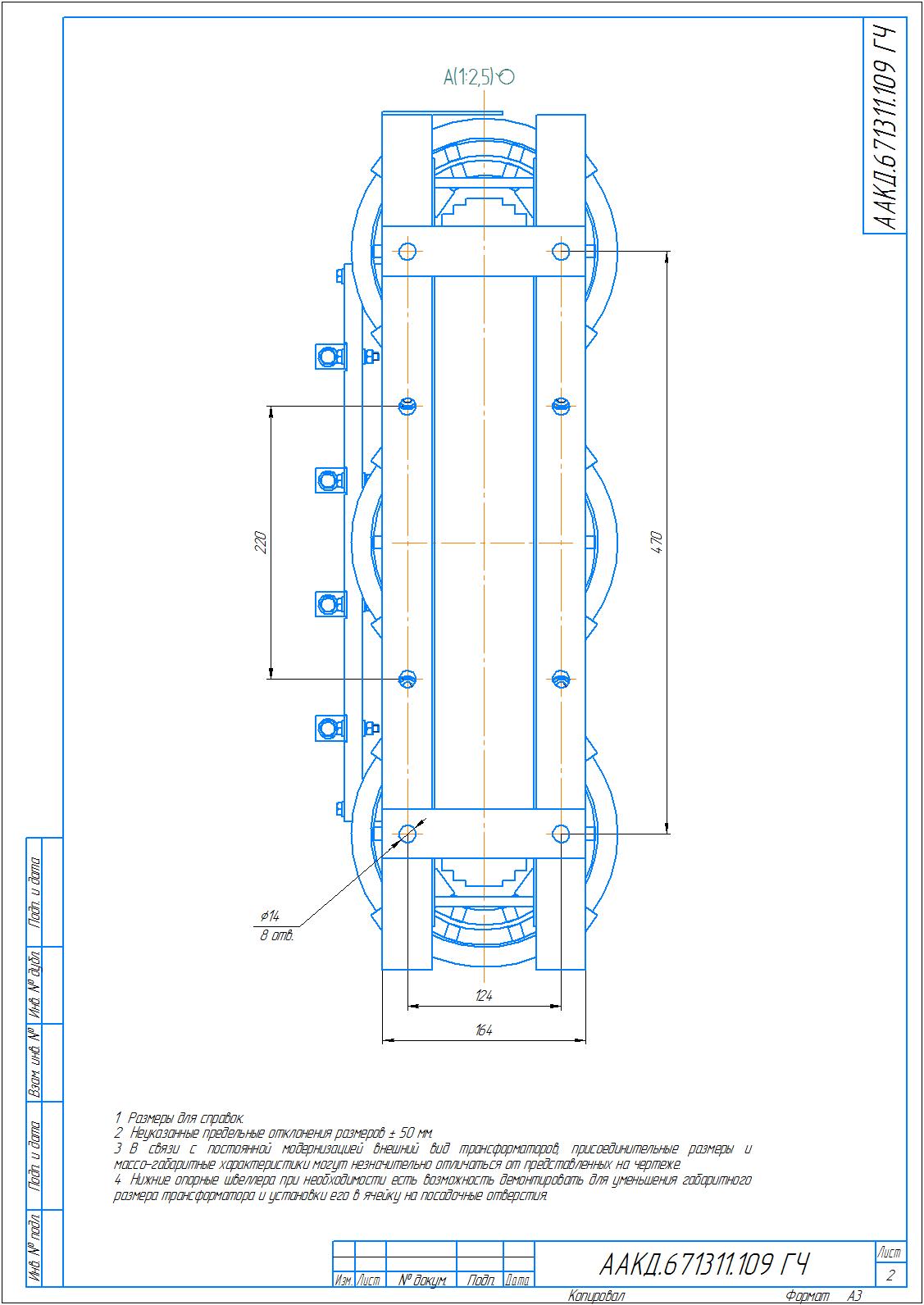

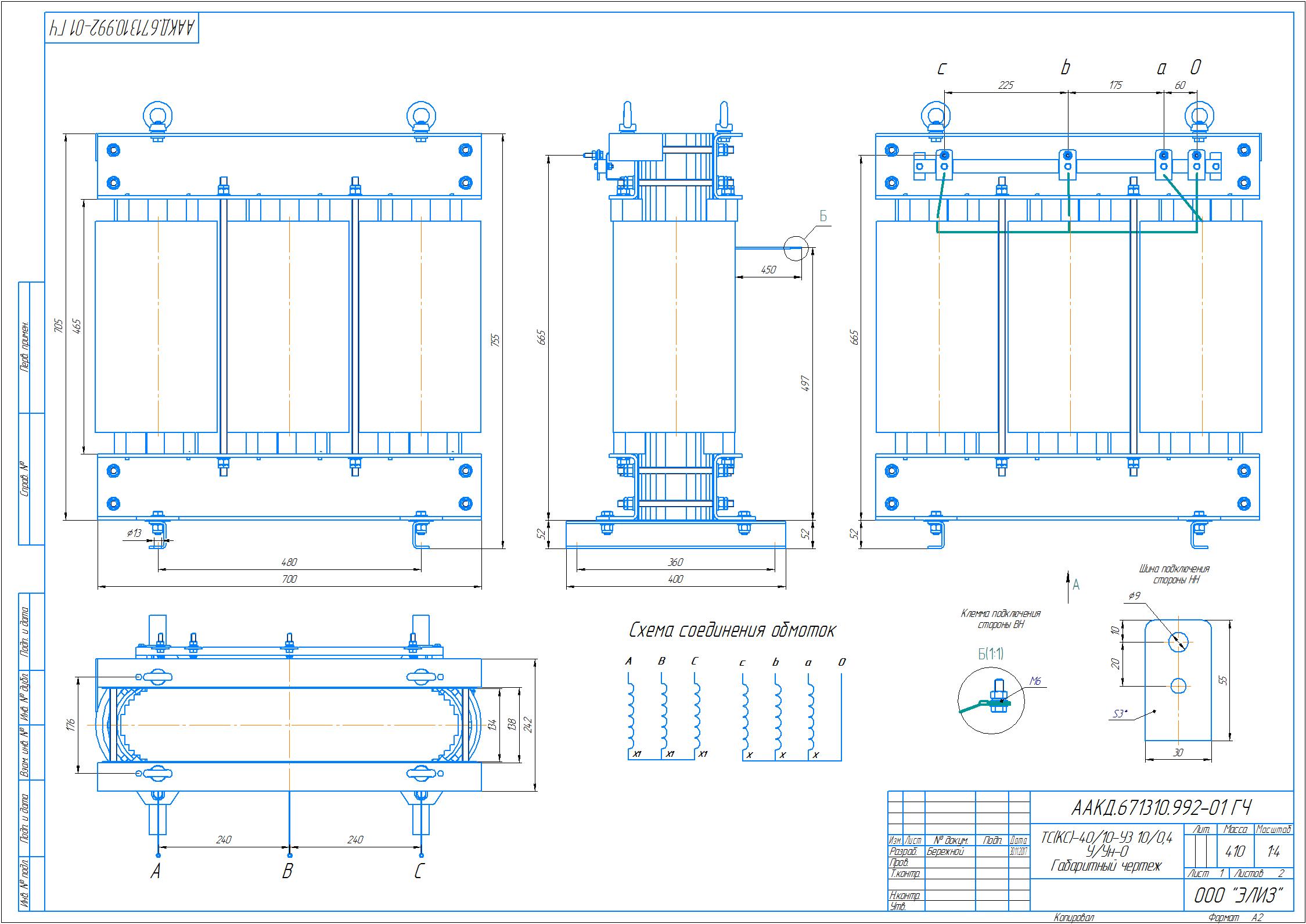

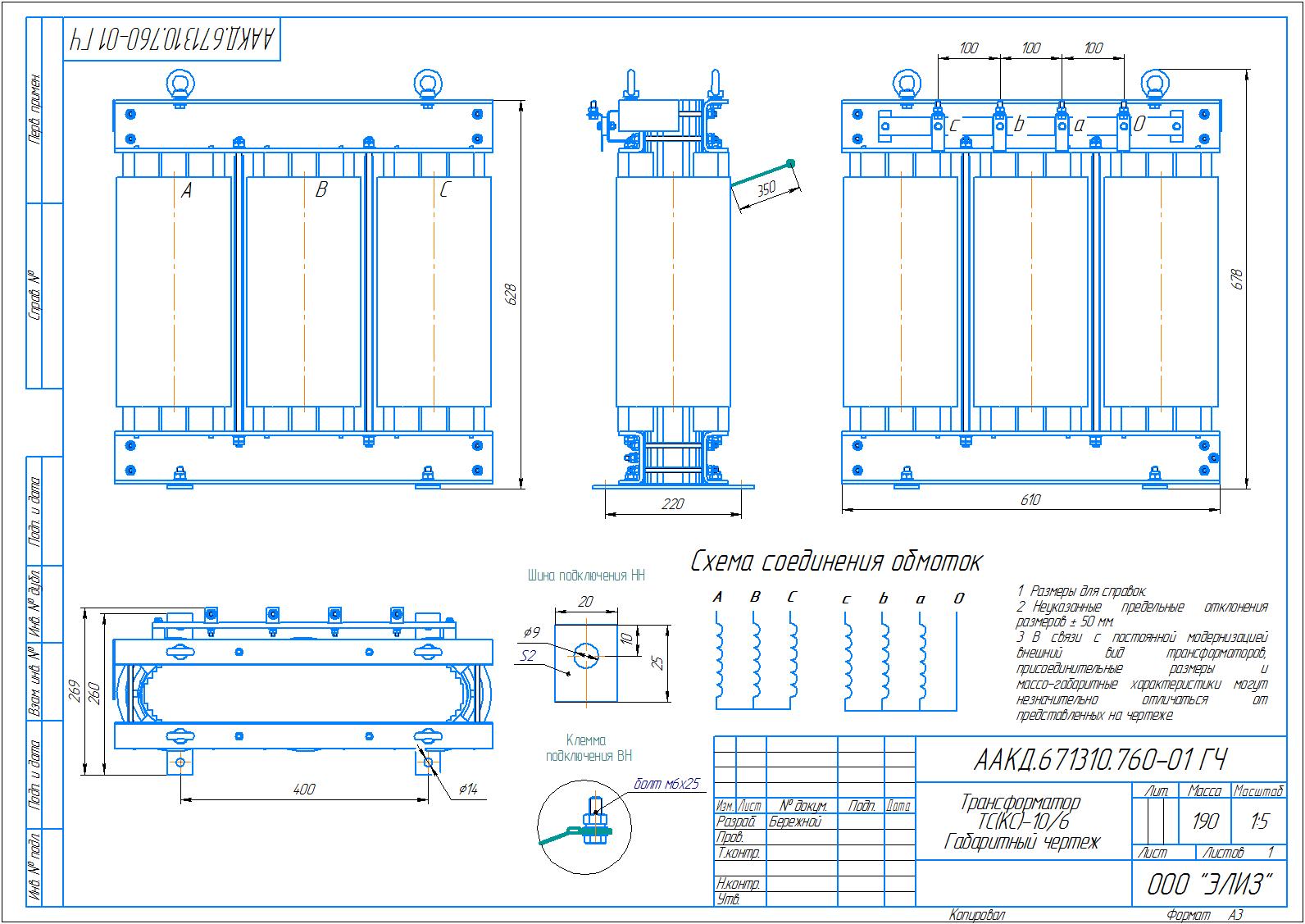

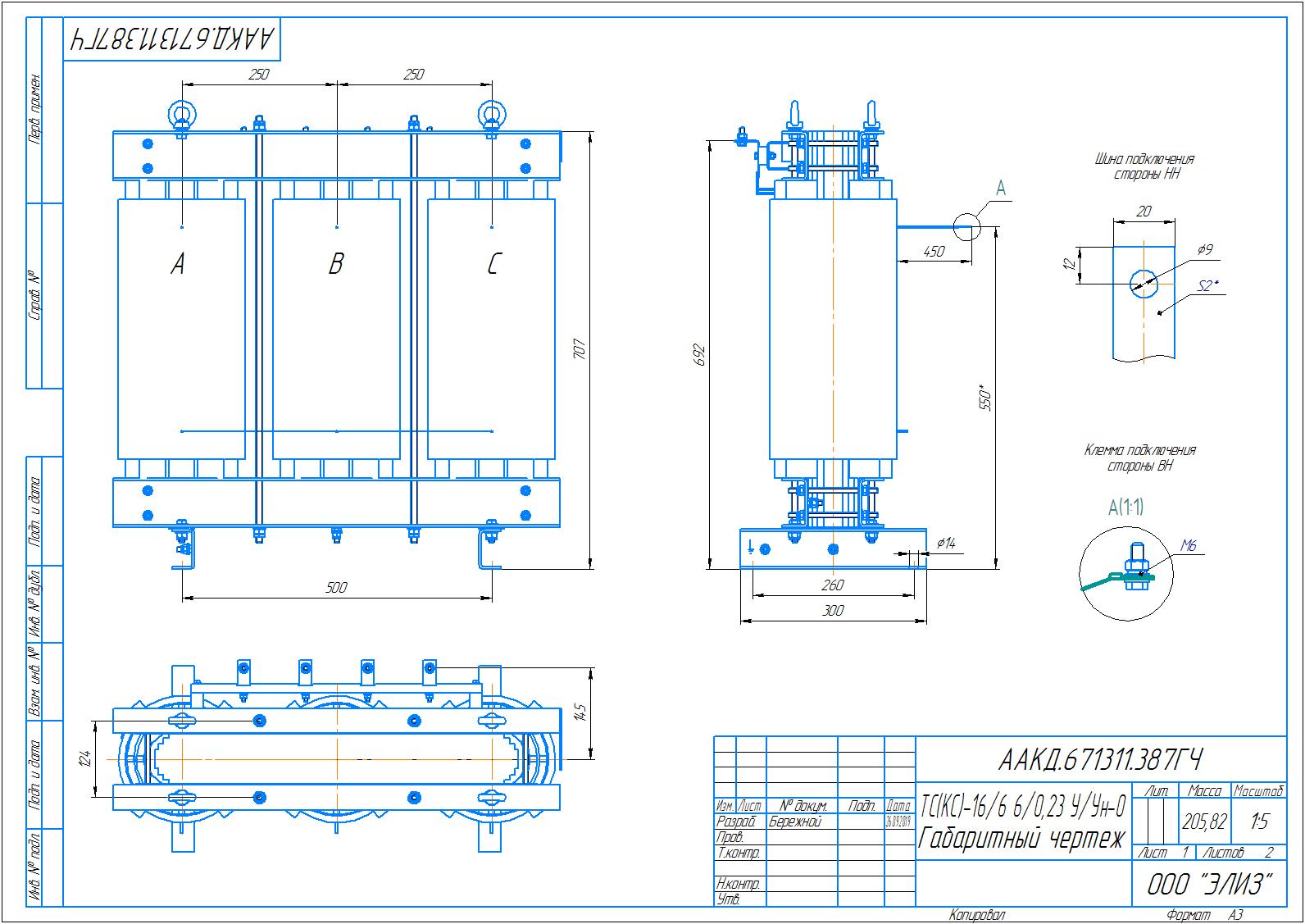

drawings Rated power, kVA Rated voltage Length, mm Width, mm Height, mm Weight, kg
HV, kV LV, kV
10

6;

6,3;

10;

10,5

0,23;

0,4



 750 300 720 156,5

16 750 300 720  195

Without Switching device without excitation:


Switching device without excitation:


 25 765 300 740 205

Without Switching device without excitation:


Switching device without excitation:


 40 702 242 705  385

  At presence of special requirements on dimentions, the transformers may be redesigned accordingly.

  Protection degree as per ГОСT 14254 – IP00.

The transformers are performed under TУ У 3.49-13608660-048-2000.

The transformers are ГОСT 11677 compliant.
