6-10kV Single-phase voltage transformers ОЛС, ОЛСП type

6-10kV Single-phase voltage transformers ОЛС, ОЛСП type

   The ОЛС, ОЛСП type transformers are designed for power industry and used for feeding a partitioning power items and automatic transfer switch (ATS) on 6-10 kV electric grids. Also, these transformers are components and intended for use in the complete switchgear (КРУ) for outdoor installation and can be used in AC electrical  frequency of 50 Hz or 60 Hz exposed to lightning surges, in conventional lightning protection measures, for power measurement, protection, automation, signaling and control circuits.

    The ОЛСП transformers feature is built-protective signaling safety device.


ОЛС-ОЛСП transformers technical data

The parameter The transformer marking
ОЛС(П)-0,63/6 ОЛС(П)-0,63/10 ОЛС(П)-1,25/6 ОЛС(П)-1,25/10
Voltage class, kV 6 10 6 10
Maximum operating voltage, kV 7,2 12 7,2 12
Primary windings rated voltage, kV 6,3; 6,6 10,5; 11 6,3; 6,6 10,5; 11
Secondary windings rated voltage, V


 x_a1 100
x_a2 209
x_a3 220
x_a4 231
Rated frequency, Hz 50 or 60
Rated power for the rated voltages 100 and 220 V, VA 630 1250
For OLSP only:
resistor as part of the safety shield apparatus, rated resistance, Ohm		 18 36/18 6 13
For OLSP only:
rated resistors power, W		 0,25 0,25/0,125 0,25
Windings scheme and connections group 1/1-0
Weight, kg 29 29,5 29 29,5

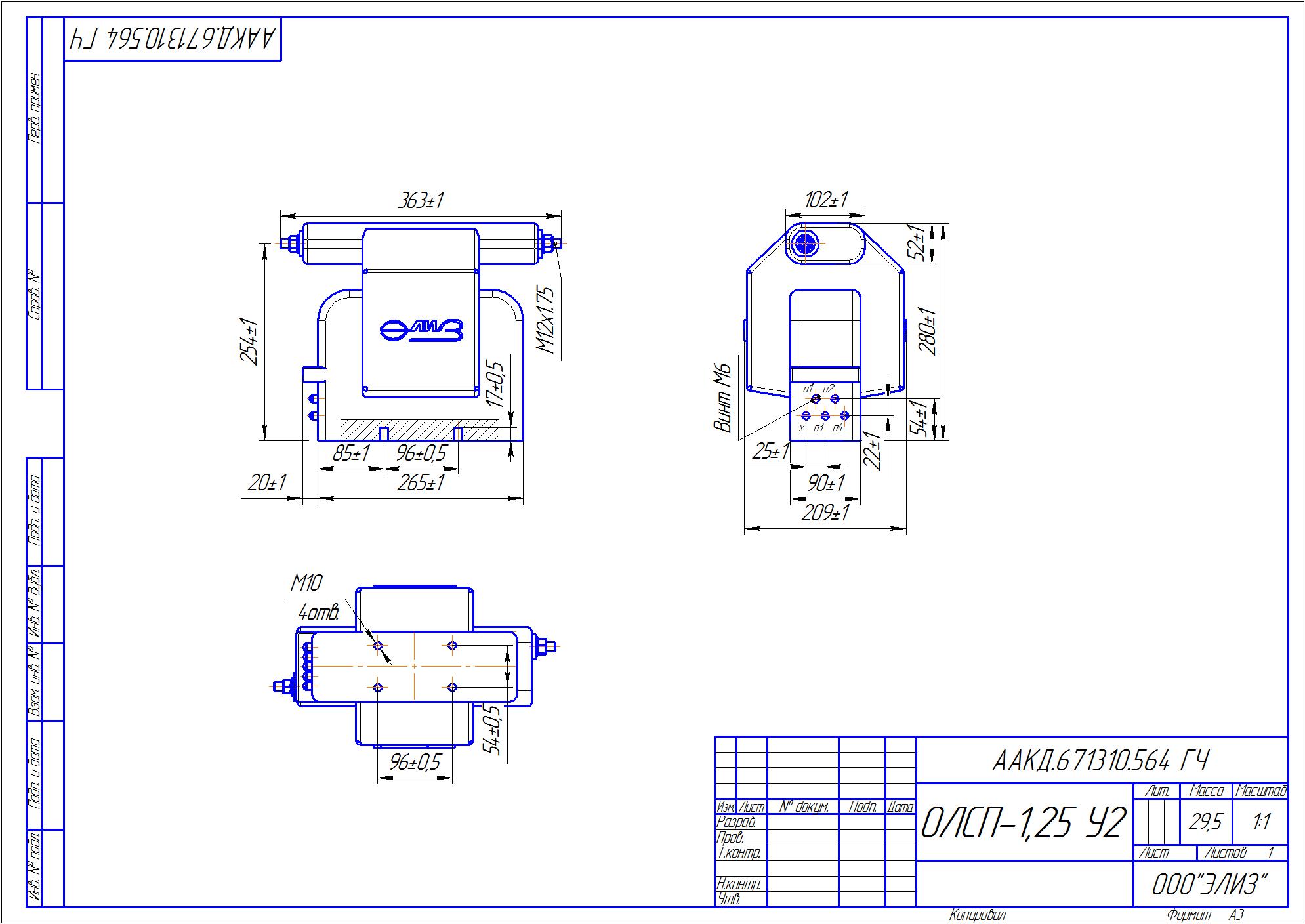

Dimentional drawings: All of ОЛС All of ОЛСП

An active part of all ОЛС / ОЛСП


Transformers have a normal insulation of "B" level according to ГОСТ 1516.1-76, thermal class "B" according to ГОСT 8865-93 and flammability class FH 1 according to ГОСТ 28779-90. Transformers have a climatic version ''У'', accomodation category 2 according to ГОСТ 15150-69 and are intended for use in the following conditions:
- Altitude - not over 1000 meters;
- Upper operating ambient temperature 55°C;
- Lower operational ambient temperature minus 45°C;
- Relative humidity and air pressure - according to the norms of ГОСТ 15543.1-89;
- Environment not explosive, not containing aggressive vapors in concentrations destroying metals and insulation ГОСТ 15150-69;
- Transformer operating position - any.
