6-20kV Three-phase dry cast insulation transformers ТС(З)ЛУ type (analogue ТСЗСЛУ, ТСЗГЛ)

6-20kV Three-phase dry cast insulation transformers ТС(З)ЛУ type (analogue ТСЗСЛУ, ТСЗГЛ)

  Three - phase dry cast power transformers is a kind of dry transformers which have one or more windings with cast resin insulation with compound based on epoxy resin with silica filler.
  Designed for power conversion in electric power grid systems and consumers of AC 50Hz nominal frequency and are installed in commercial and public buildings, which have an increased requirements in terms of fire/explosion protection, environmental cleanliness.
Please fill and agree with us the questionnaire OL-TSLU.doc [153 Kb] (downloads: 15).


  High fire safety and operational reliability, low noise level and compactness made it possible to exploit these transformers in locations with high security requirements - in chemical, metallurgy, oil refining industries, as well as public buildings and facilities. Cast resin transformers are easy to maintain and comply with CENELEC requirements for E2 class on environmental safety, C2 class for work in adverse weather conditions, F1 class on fire safety.
  The protection degree under ГОСТ 14254 - IP00; IP11; IP21, manufacture a transformers with protection degree up to IP34 is possible after coordination with a customer.

Power range of commercially available transformers: from 16 to 2500kVA.

 After coordination with a customer, manufacture transformers with up to 10000 kVA is possible.

HV windings rated power, kV: 6; 10

LV windings rated power, kV: 0,23; 0,4; 0,69

Windings connection schemes: Y/Yн-0; Δ/Δ-0; Δ/Yн-11; Y/Δ-11



DIMENTIONAL & WEIGHT CHARACTERISTICS OF ТС(З)ЛУ TRANSFORMERS:

Rated power Drawing + Dimentions of ТСЛУ, LхWхH, mm Drawing + Dimentions of ТСЗЛУ, LхWхH, mm Weight ТСЛУ, kg Weight ТСЗЛУ, kg
16 720х300х737   220

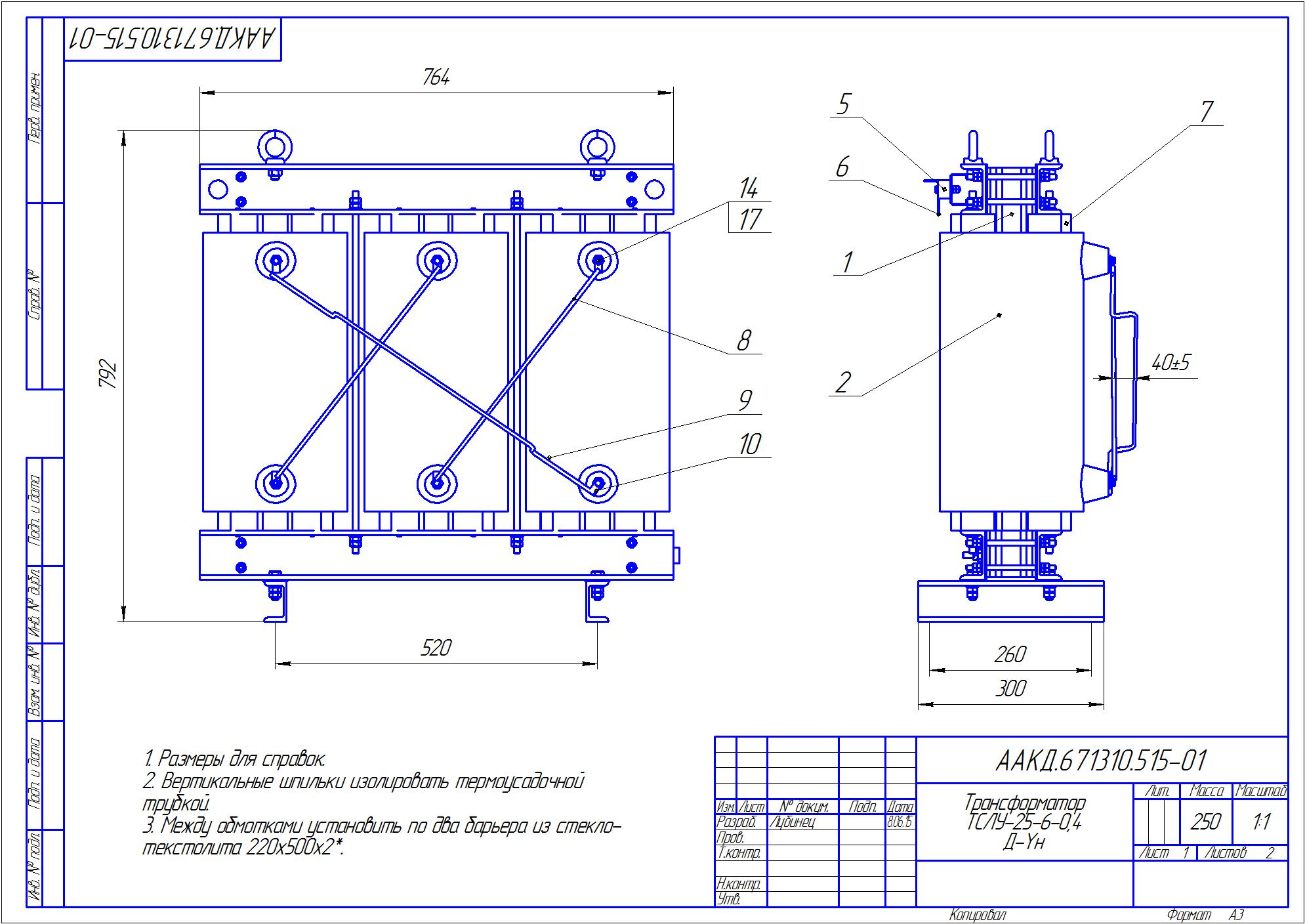

25 764х300х792   250
40 710х285х705   385
63 1020х450х792   350

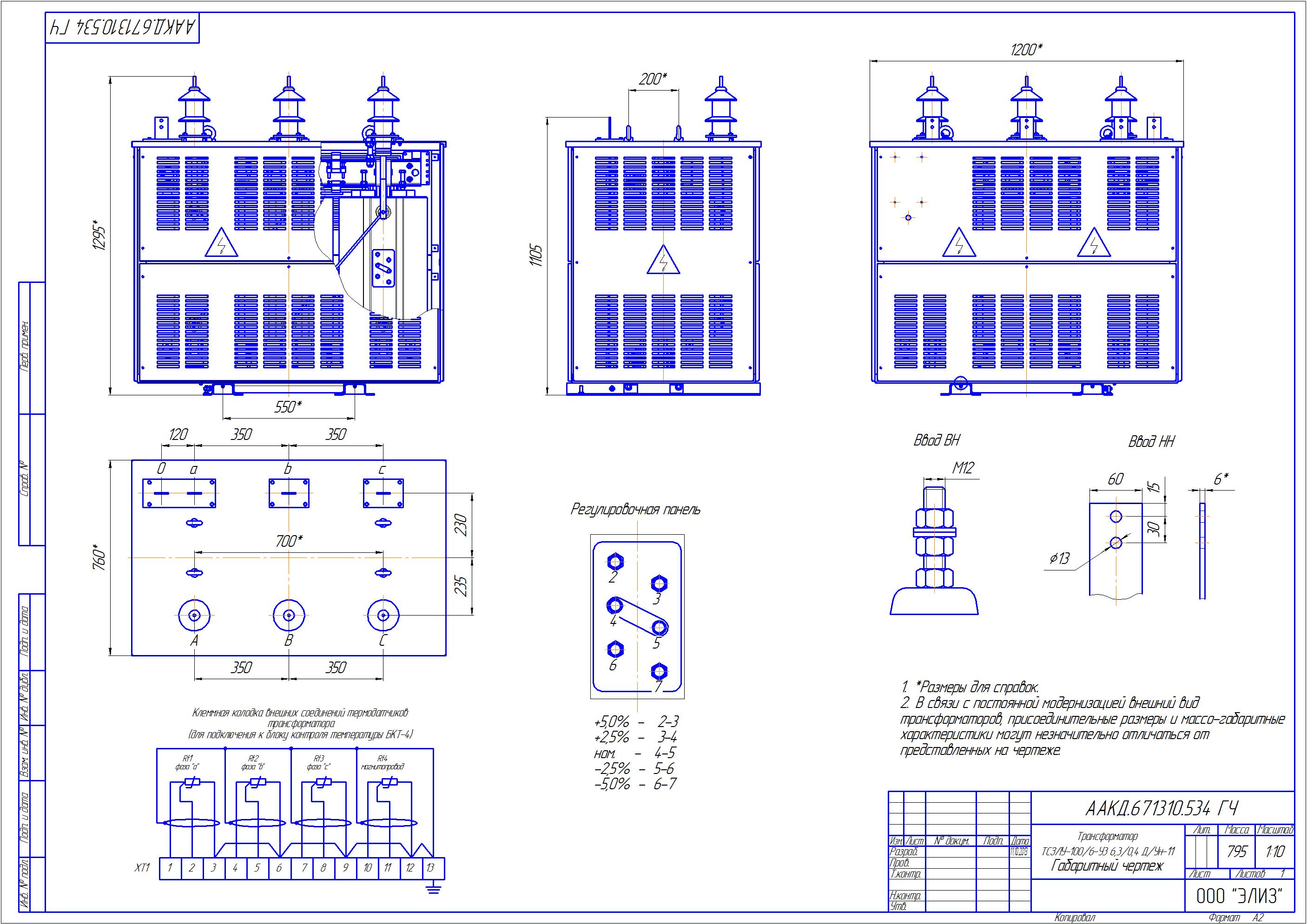

100  1070х730х1000  1200х760х1295 632 795

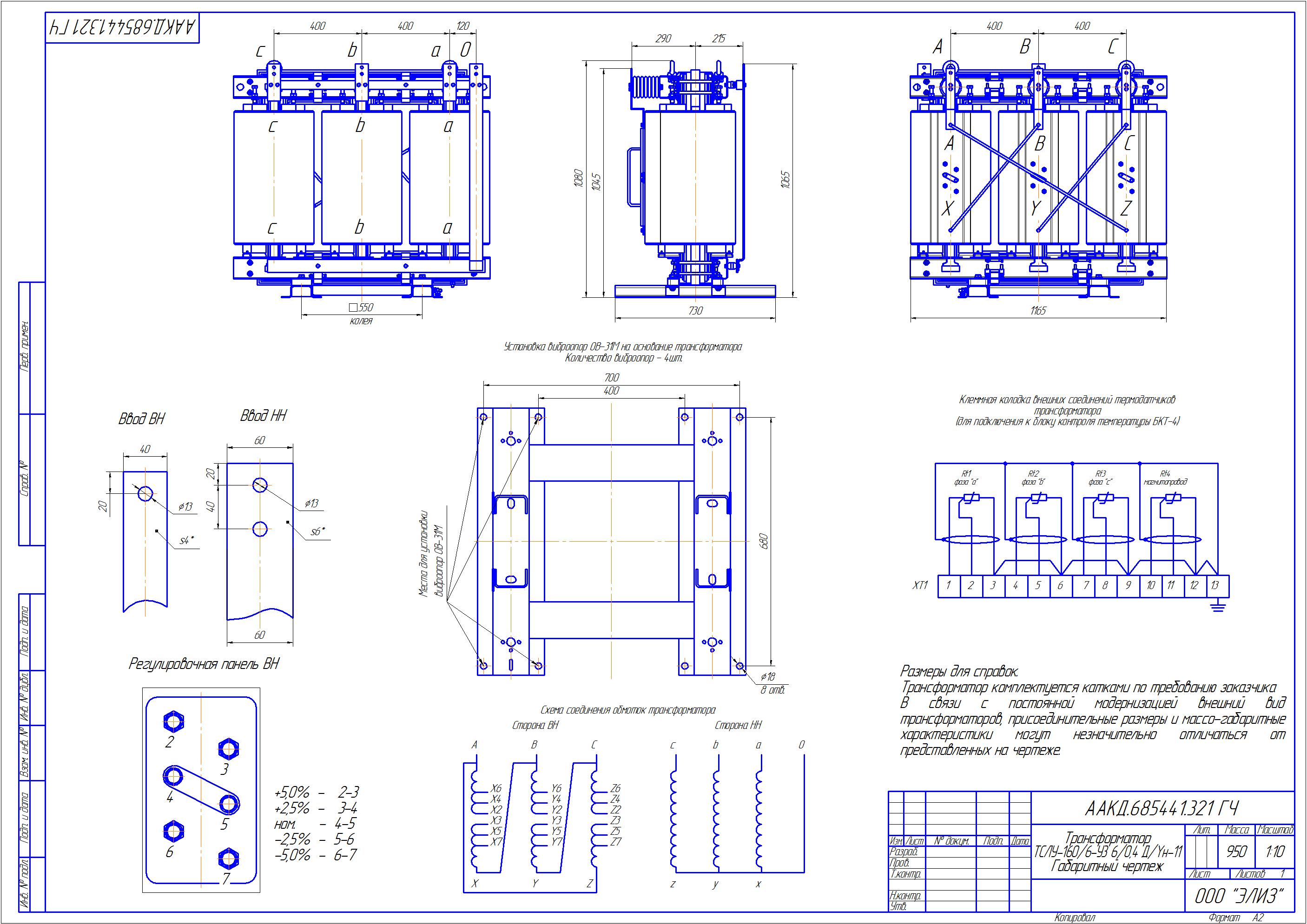

160 1165х730х1080   950

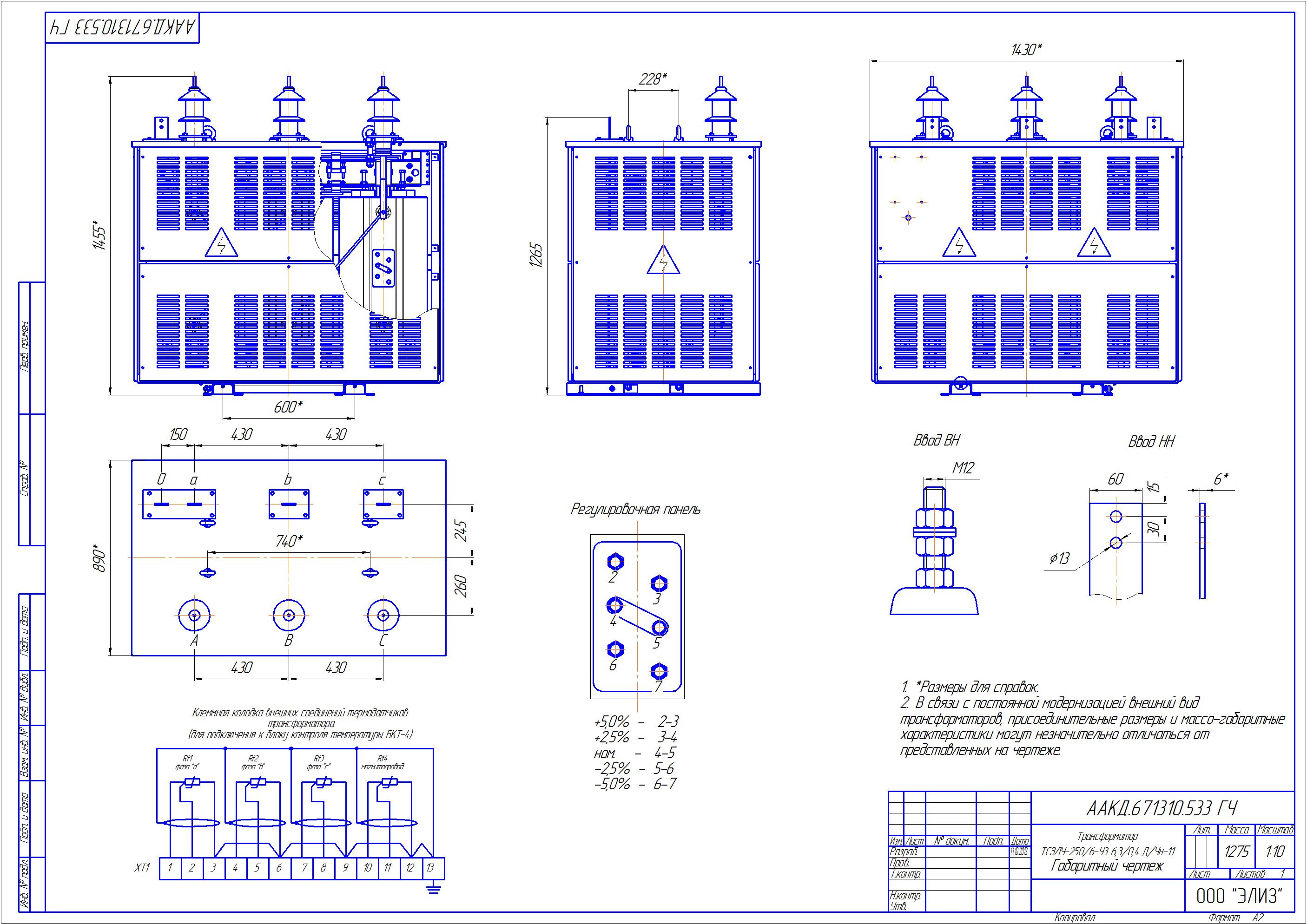

250  1260х880х1130 1430х890х1455 1180 1275
400 1455x880x1175  1650х850х1600 1650 1830
630 1495х1050х1400 1665X985X1785 2165 2330

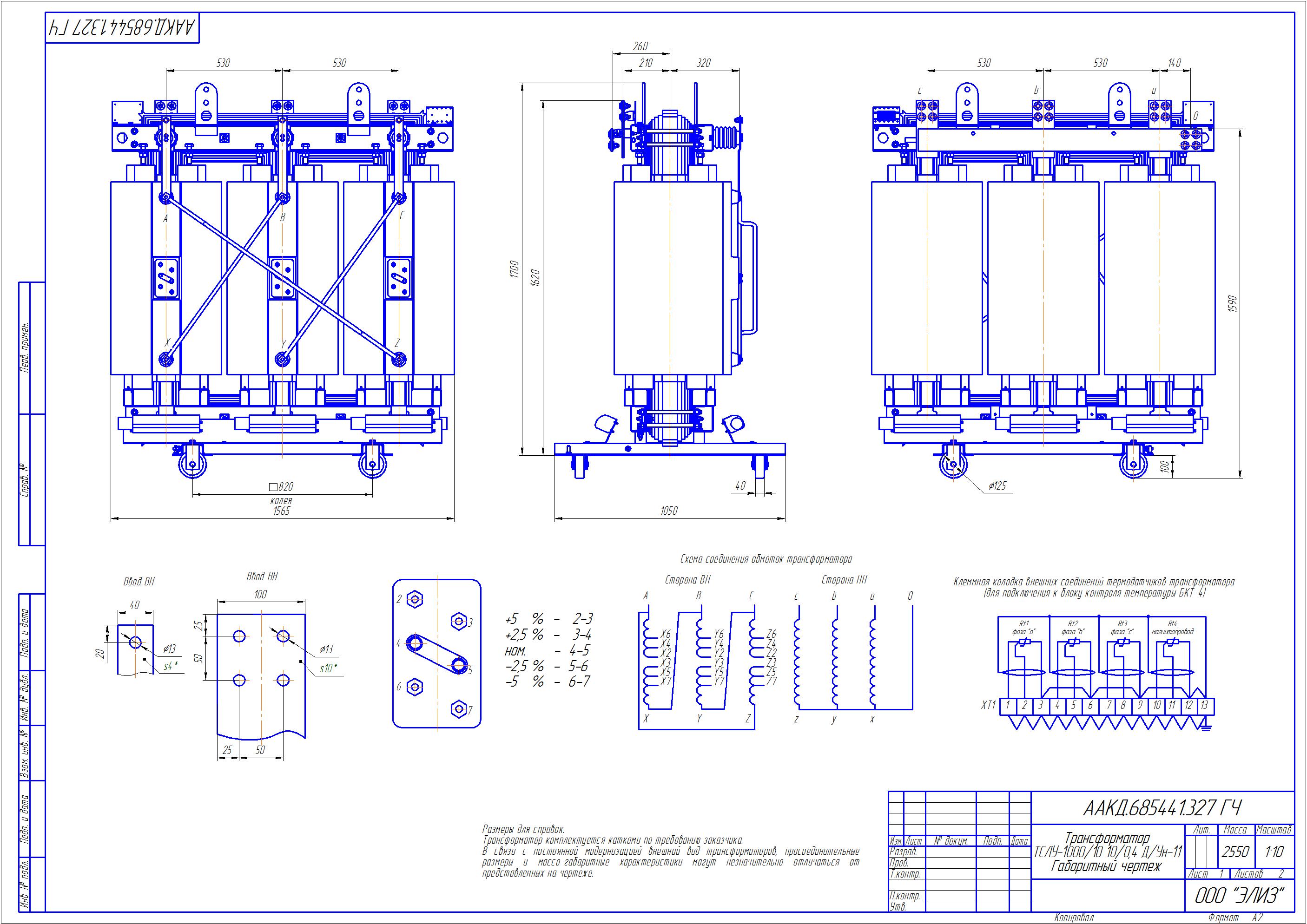

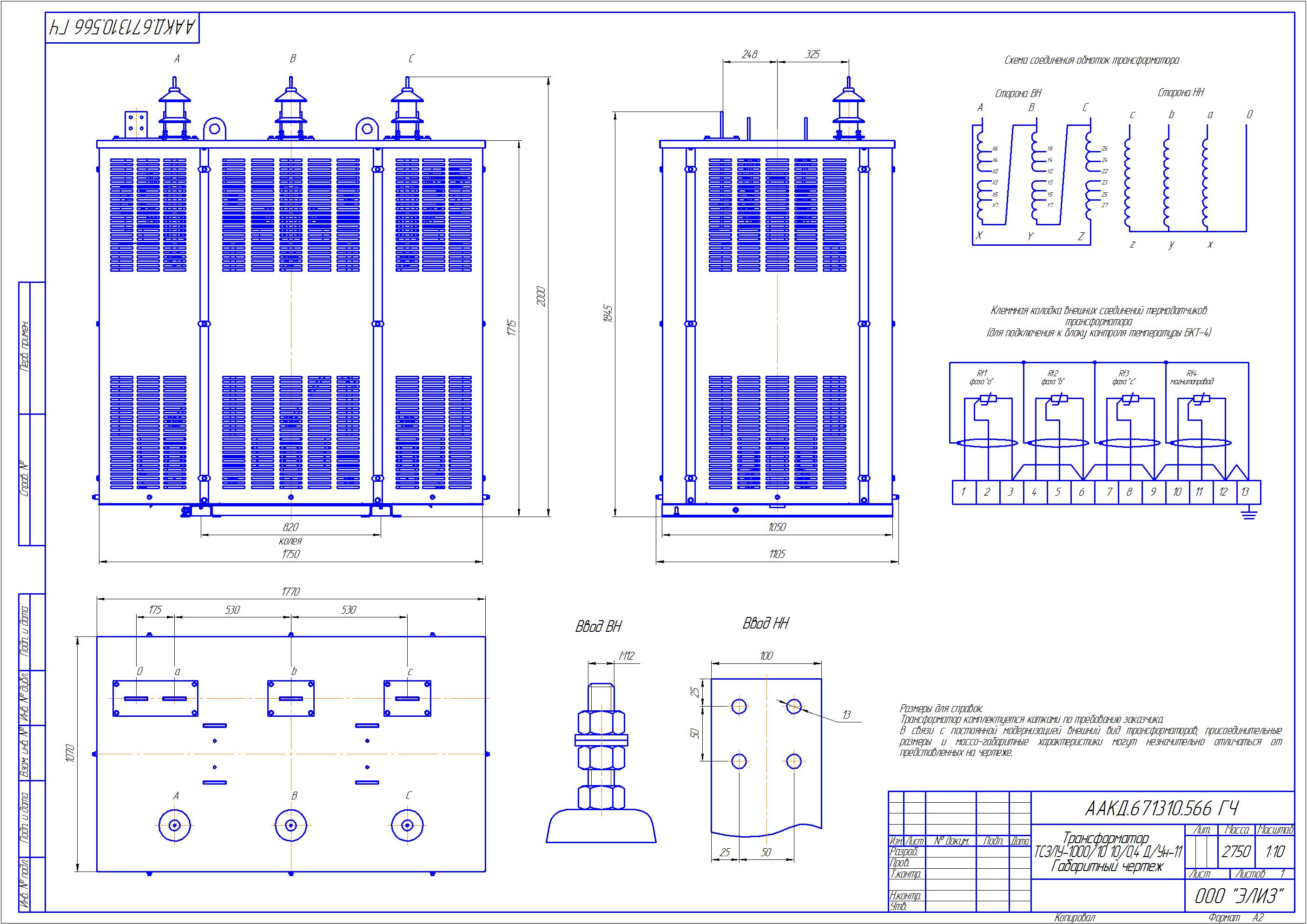

1000 1565х1050х1700 1750х1105х2000 2550 2750

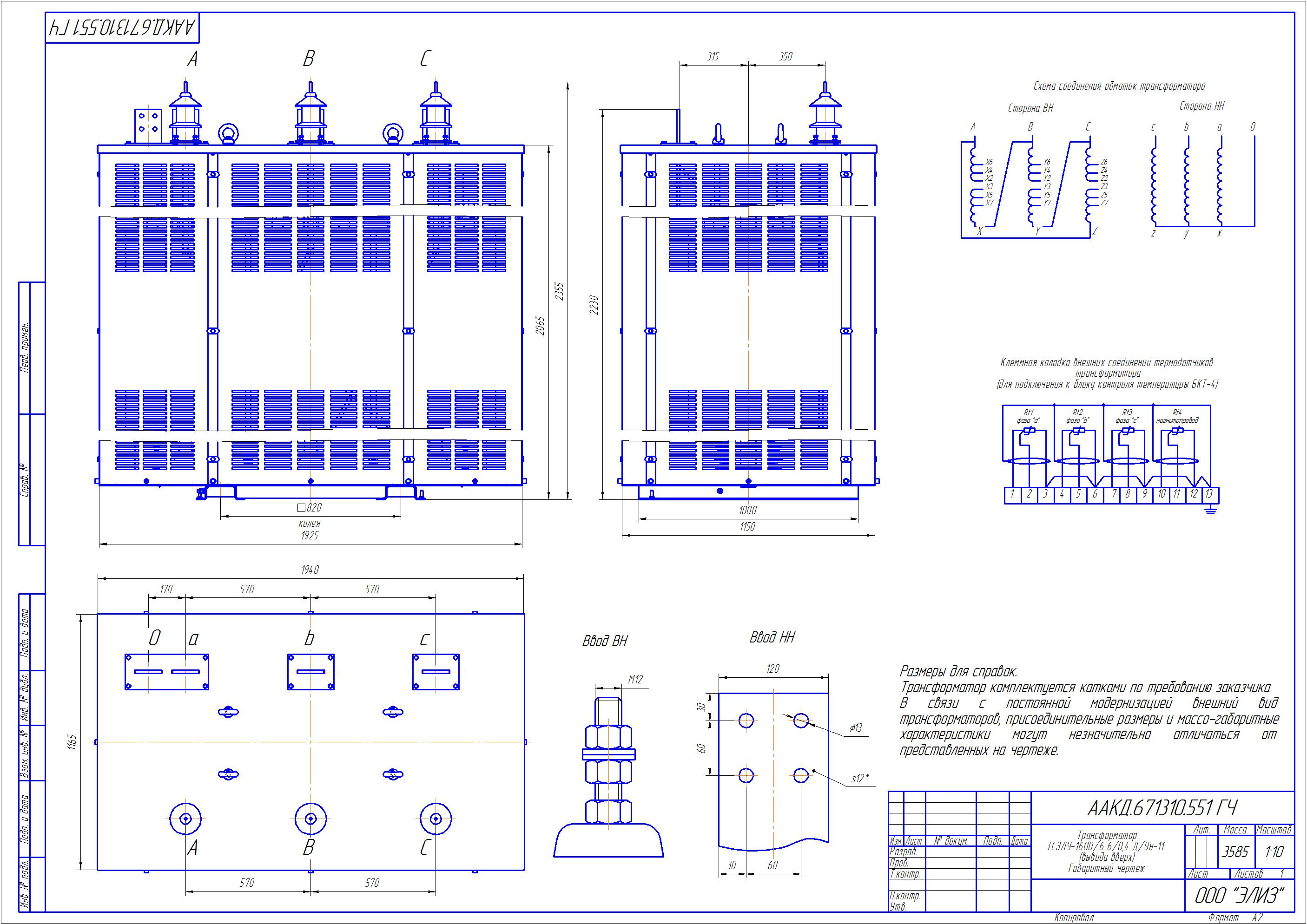

1600 1685x1000x1955 1925x1150x2355 3410 3585

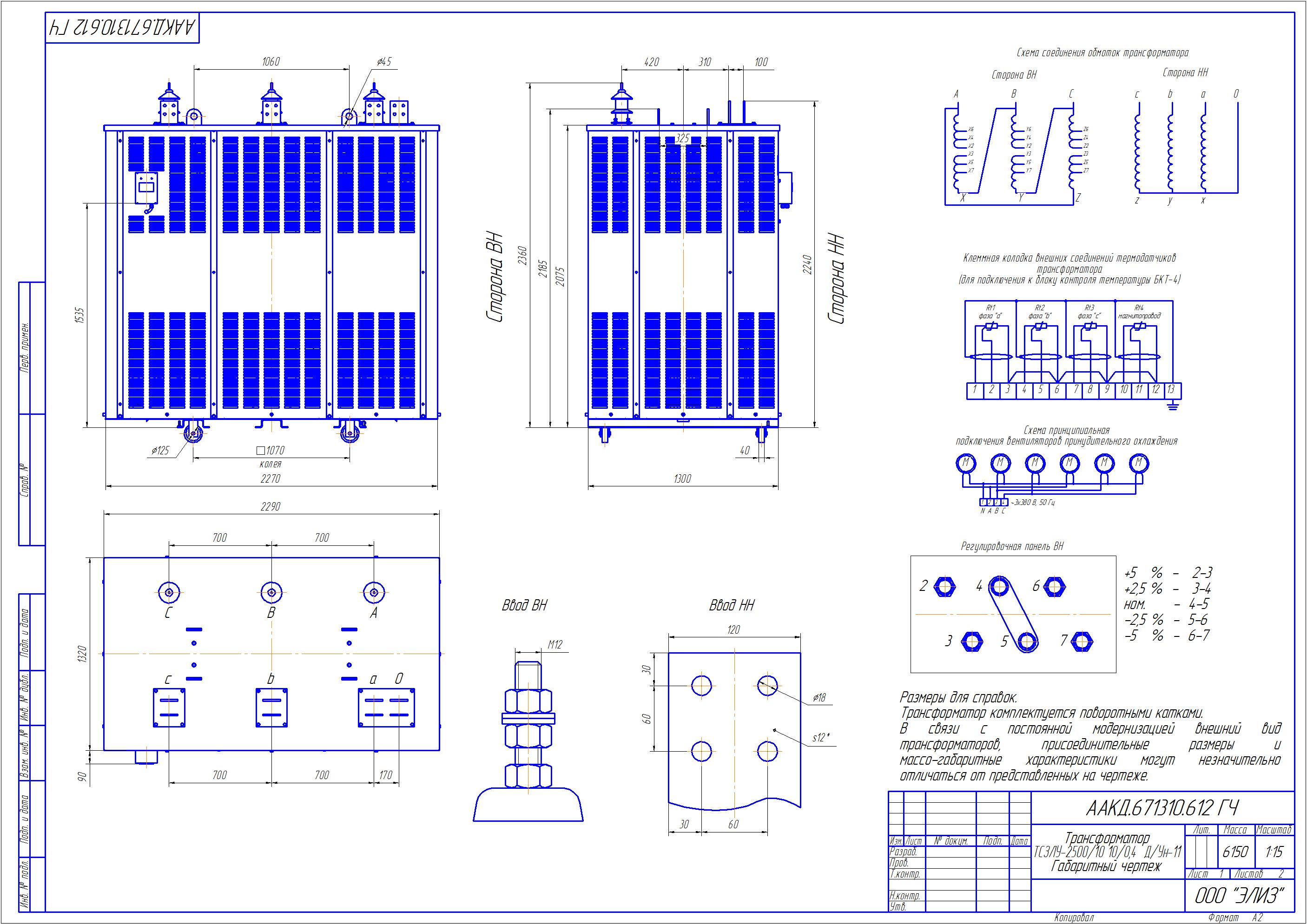

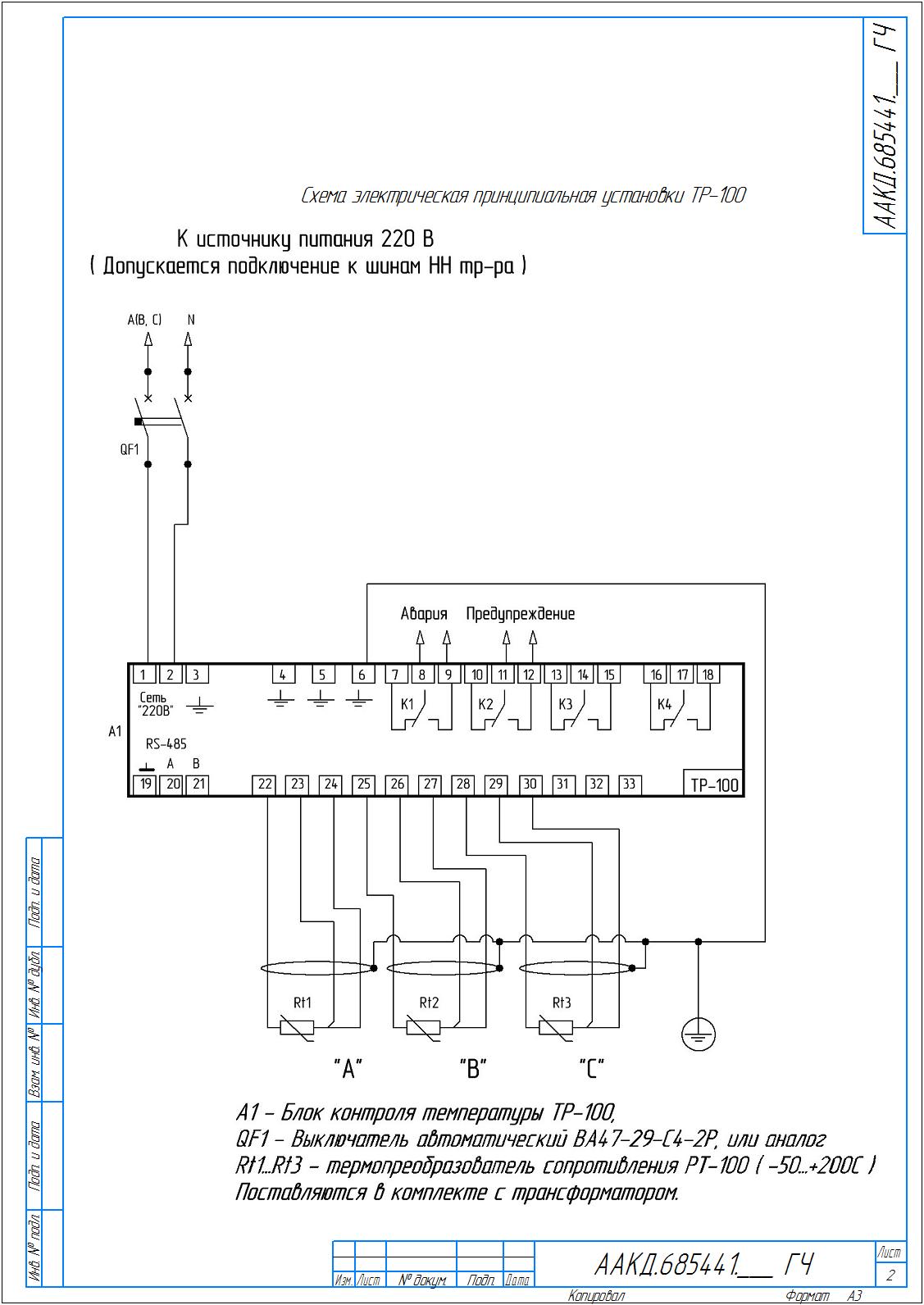

2500
2005х1300х2210		  2270x1300x2360 5750 6150
