6-10kV Dry transformers of ТС, ТСЗ, ТСЗН, ТСЗС, ОС, ОСЗ types

6-10kV Dry transformers of ТС, ТСЗ, ТСЗН, ТСЗС, ОС, ОСЗ types

  The transformers with air-barrier insulation are designed for electric power conversion in three-phase AC 50Hz electric grids and are installed in industrial facilities and municipal buildings with increased requirements in fire safety, explosive protection, environmental cleanliness. The advantage of the given transformers type is high reliability combined with advanced technical parameters and repairability.
  Due to big quantity of the possible versions of the product, please fill and agree with us the questionnaire OL-TS.doc [295 Kb] (downloads: 21).

DIMENTIONS & WEIGHT DATA OF ТС, ТСН, ТСЗ, ТСЗН TYPE TRANSFORMERS

The rated power, kVA Drawing + Dimentions for ТС, ТСН, LхWхH, mm Drawing + Dimentions for ТСЗ, ТСЗН, LхWхH, mm Weight of ТС, ТСН, kg Weight of ТСЗ, ТСЗН, kg

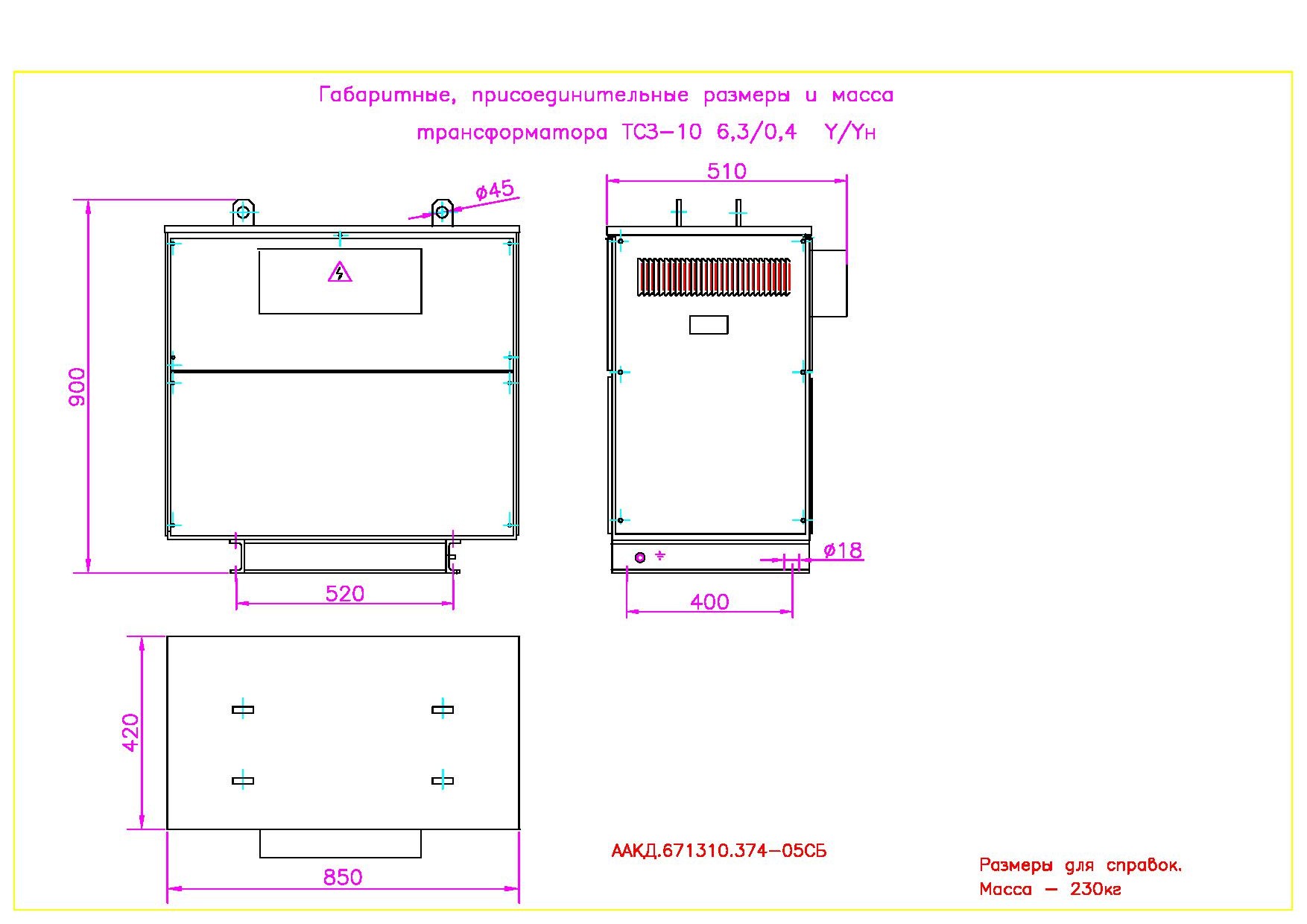

10 750х300х720  850х510х900 156 230

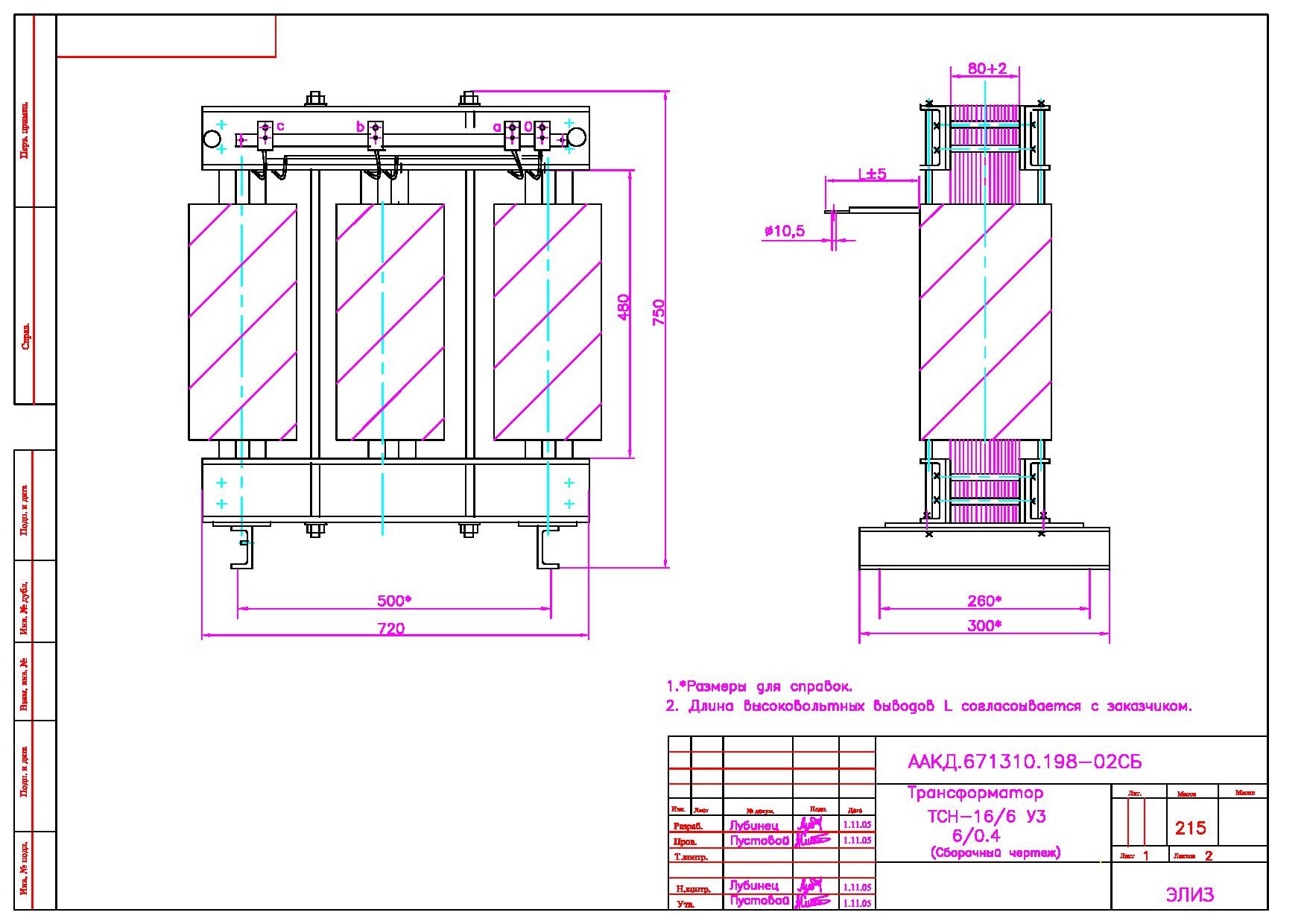

16  720x300x750   195

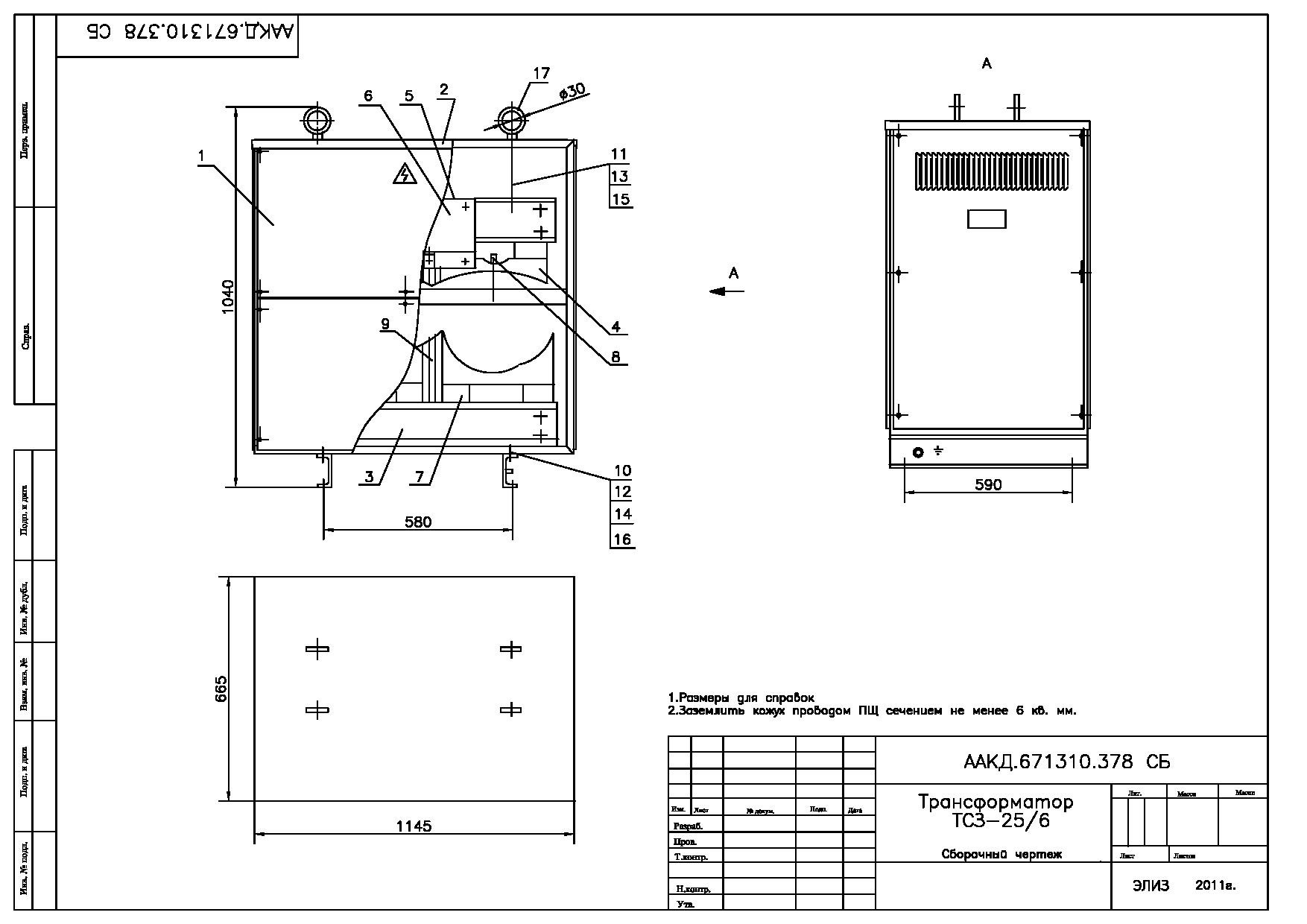

25 765x300x740  1145х665х1040 205

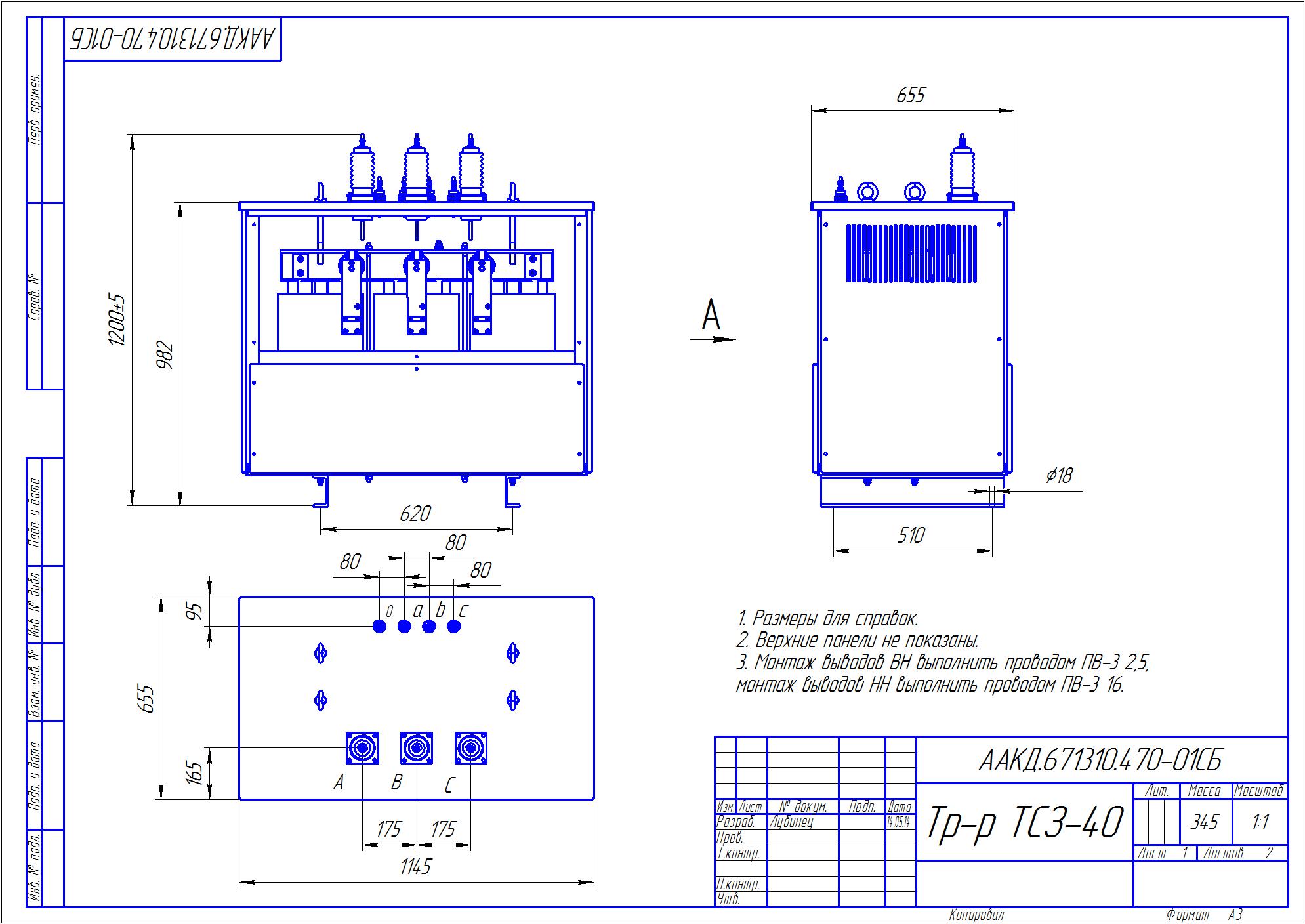

40 702x242x705  1145х655х982 385 345

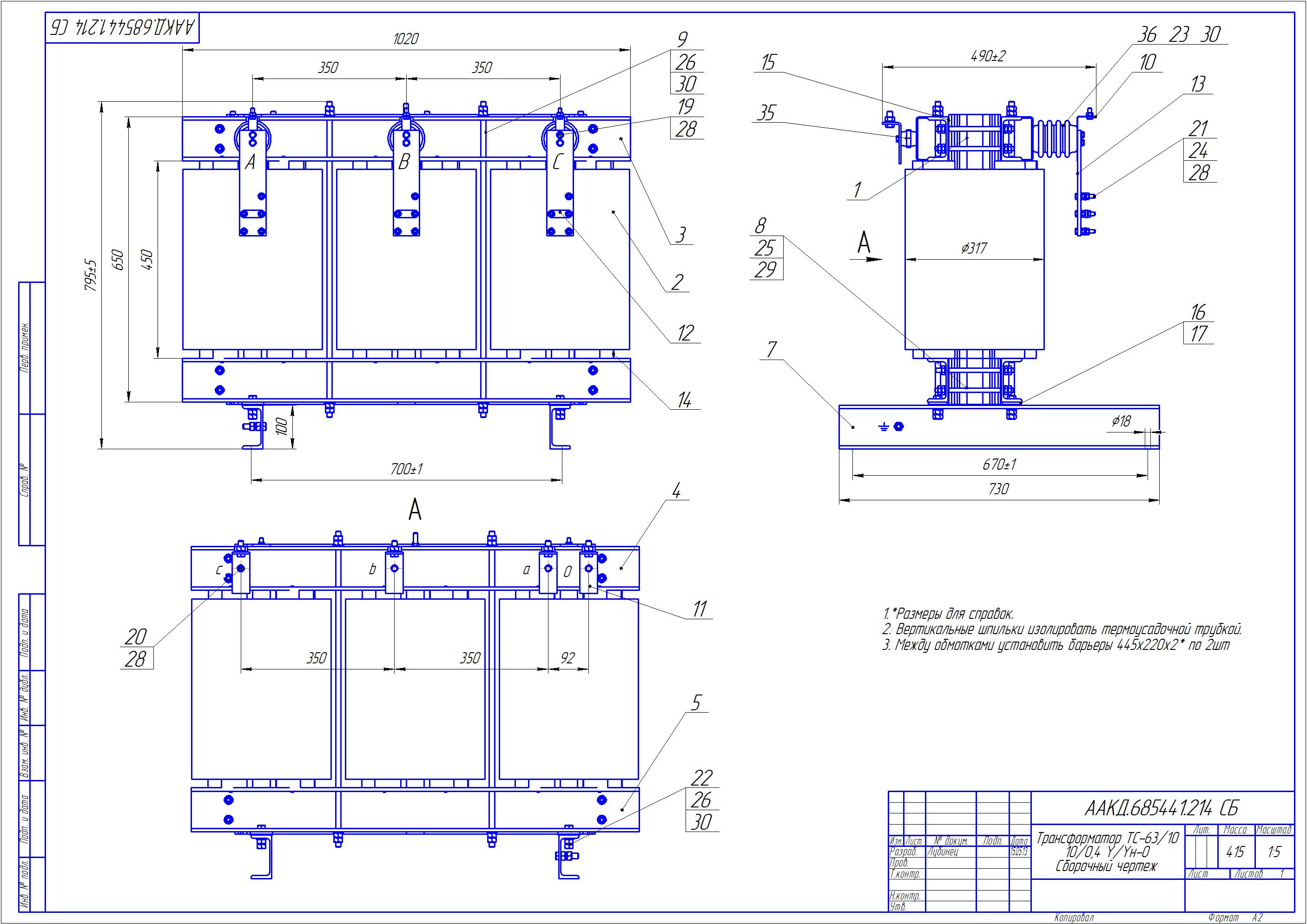

63 1020x730x795   415

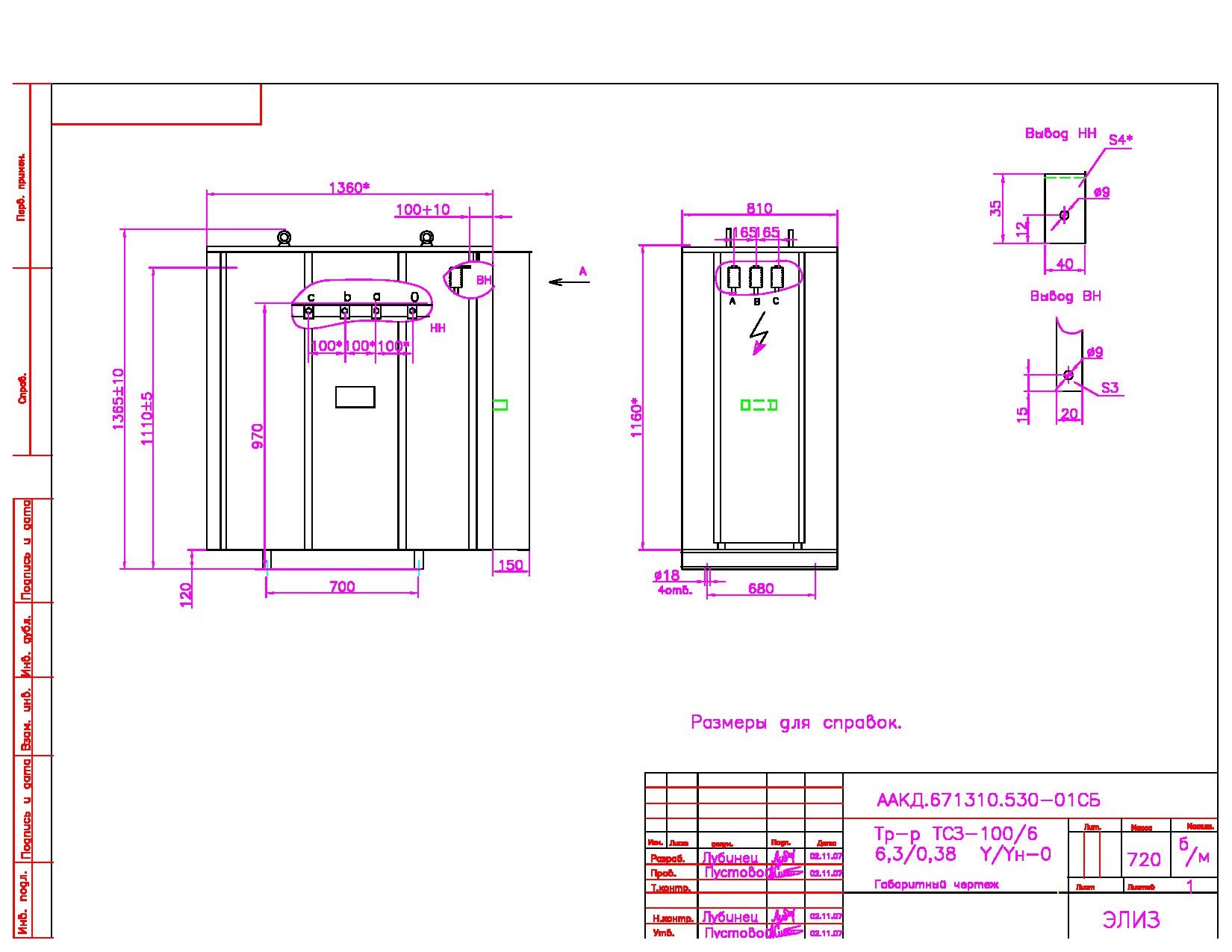

100    1360х810х1365   720

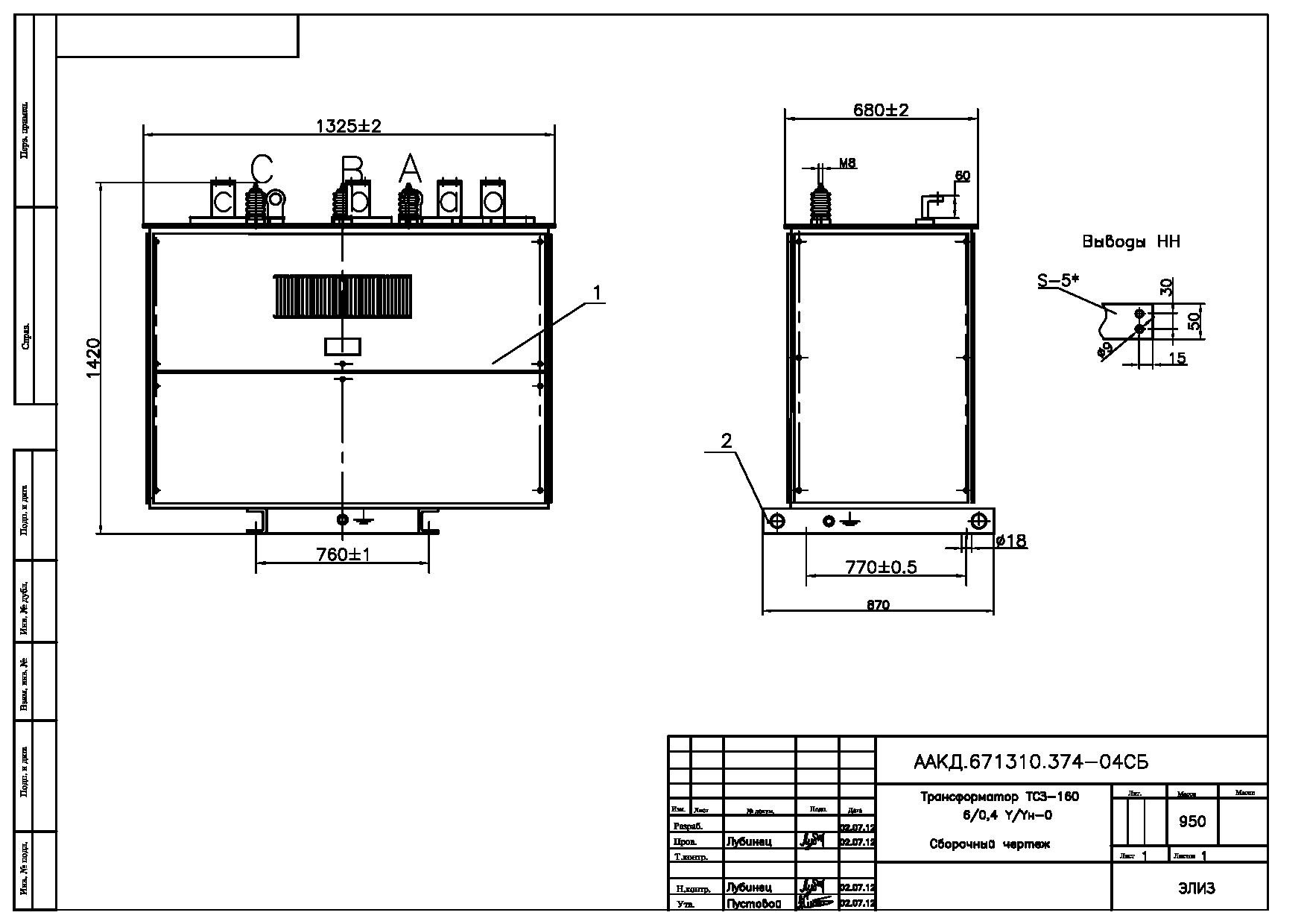

160    1325х870х1420   950

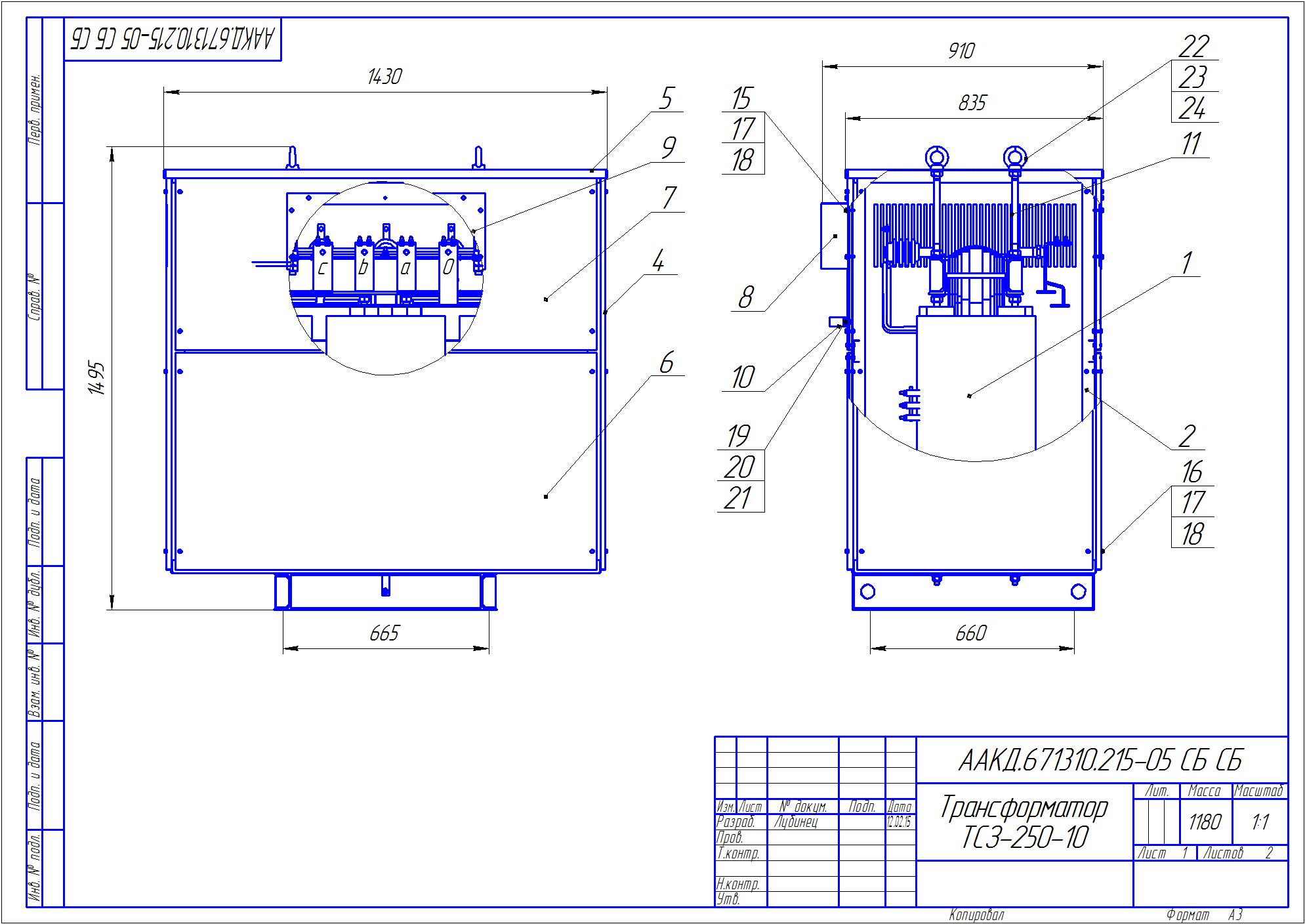

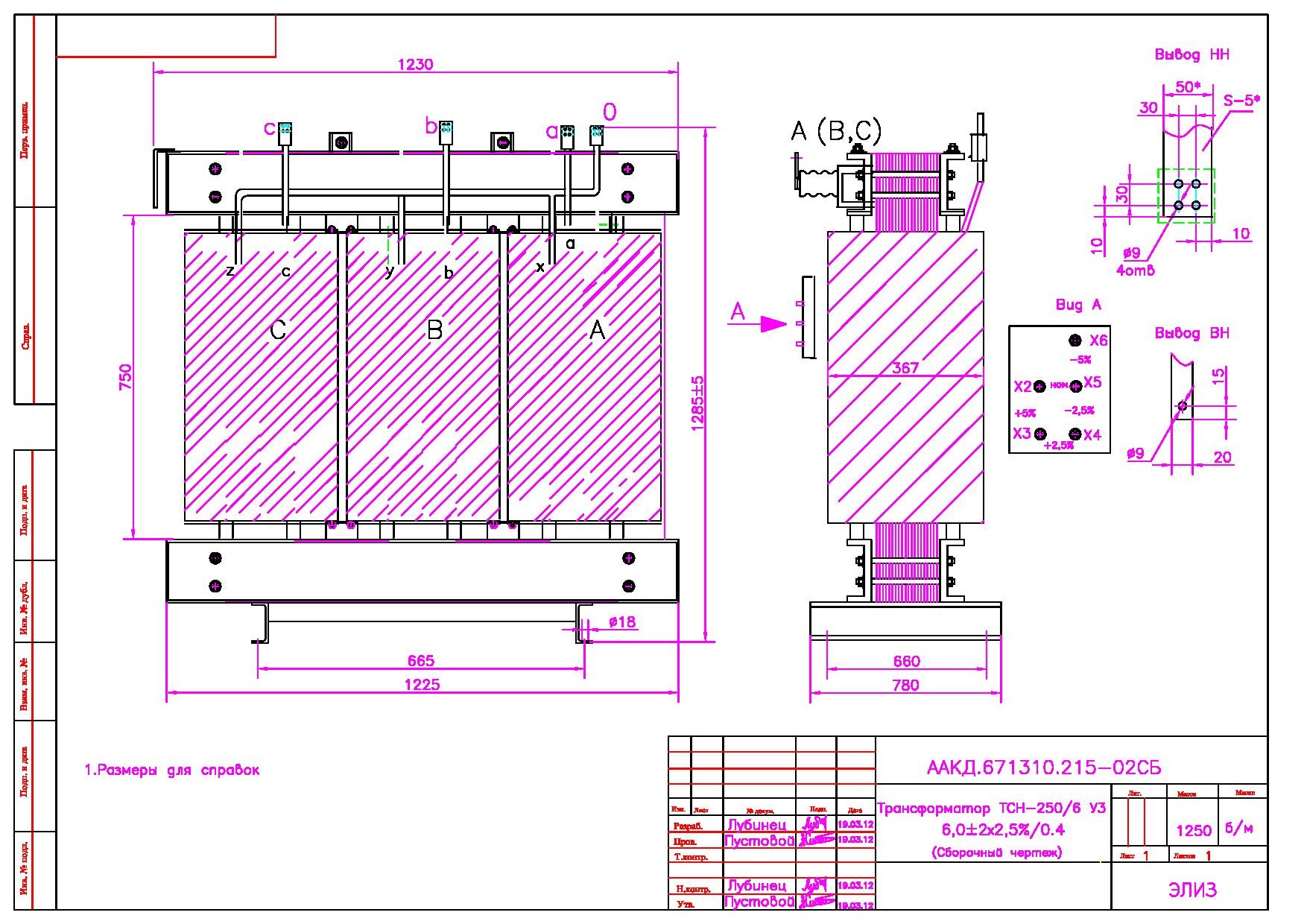

250 1255x780x1285  1430х835х1495 1250 1180

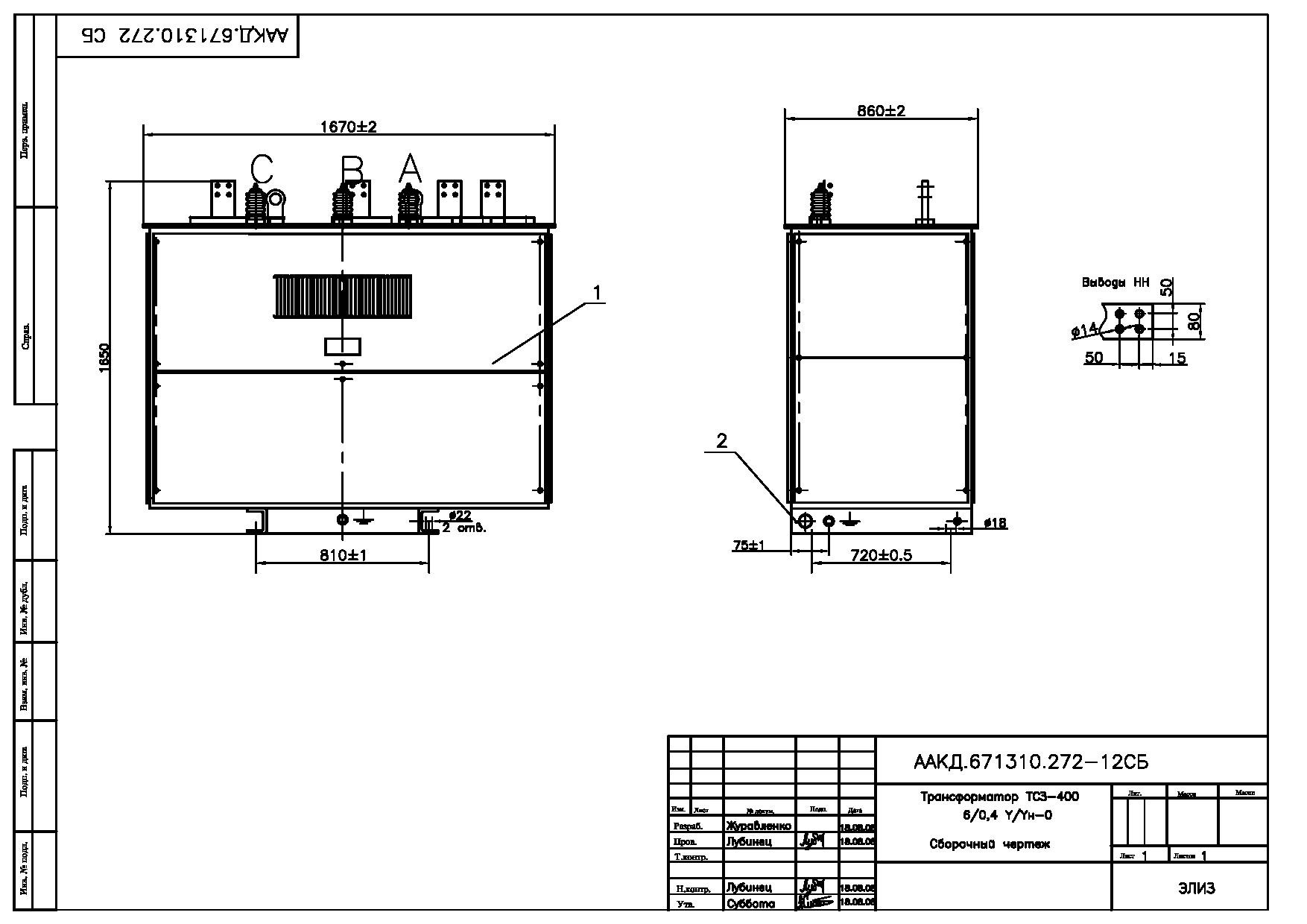

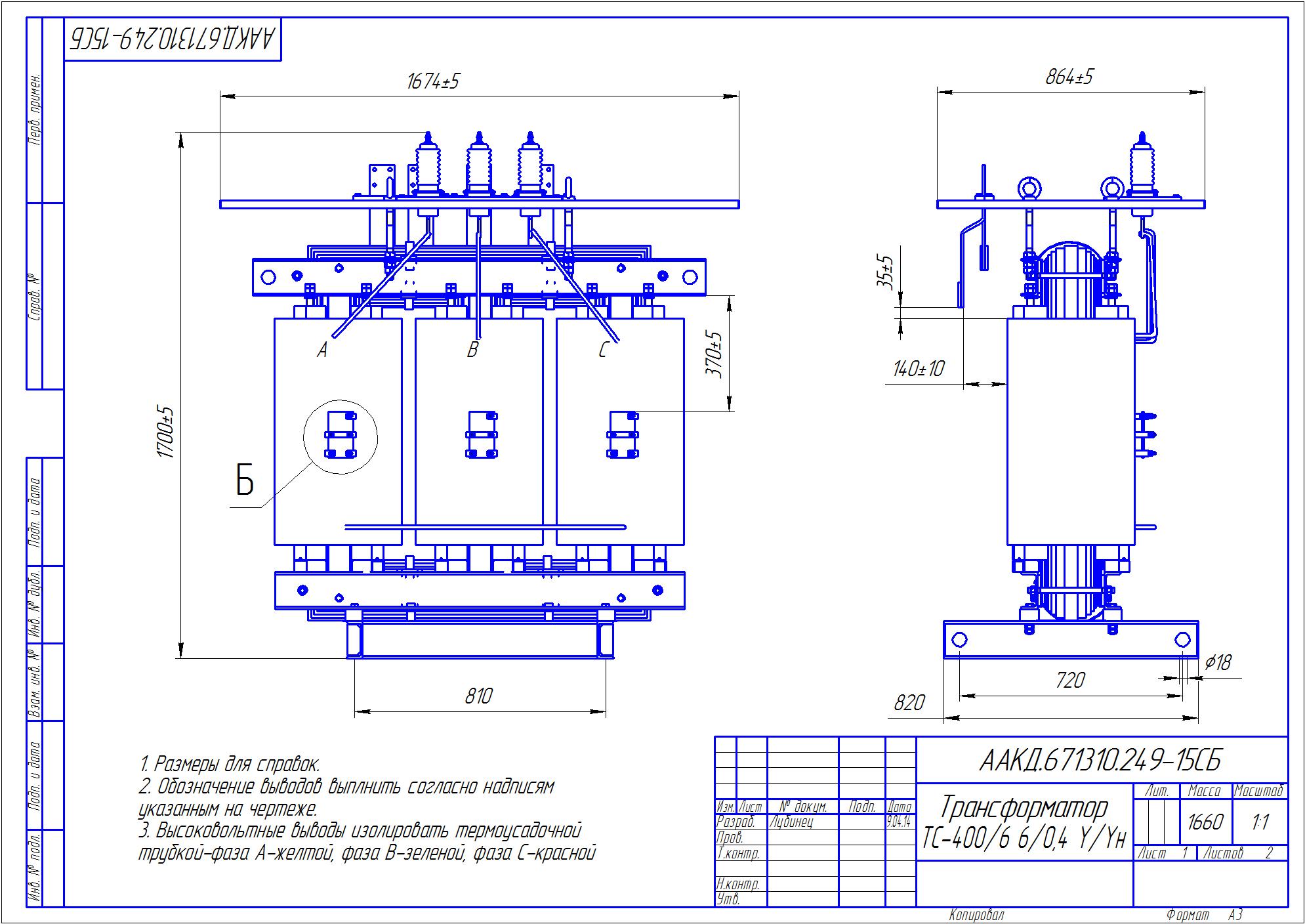

400 1674x864x1700  1670х860х1650 1660

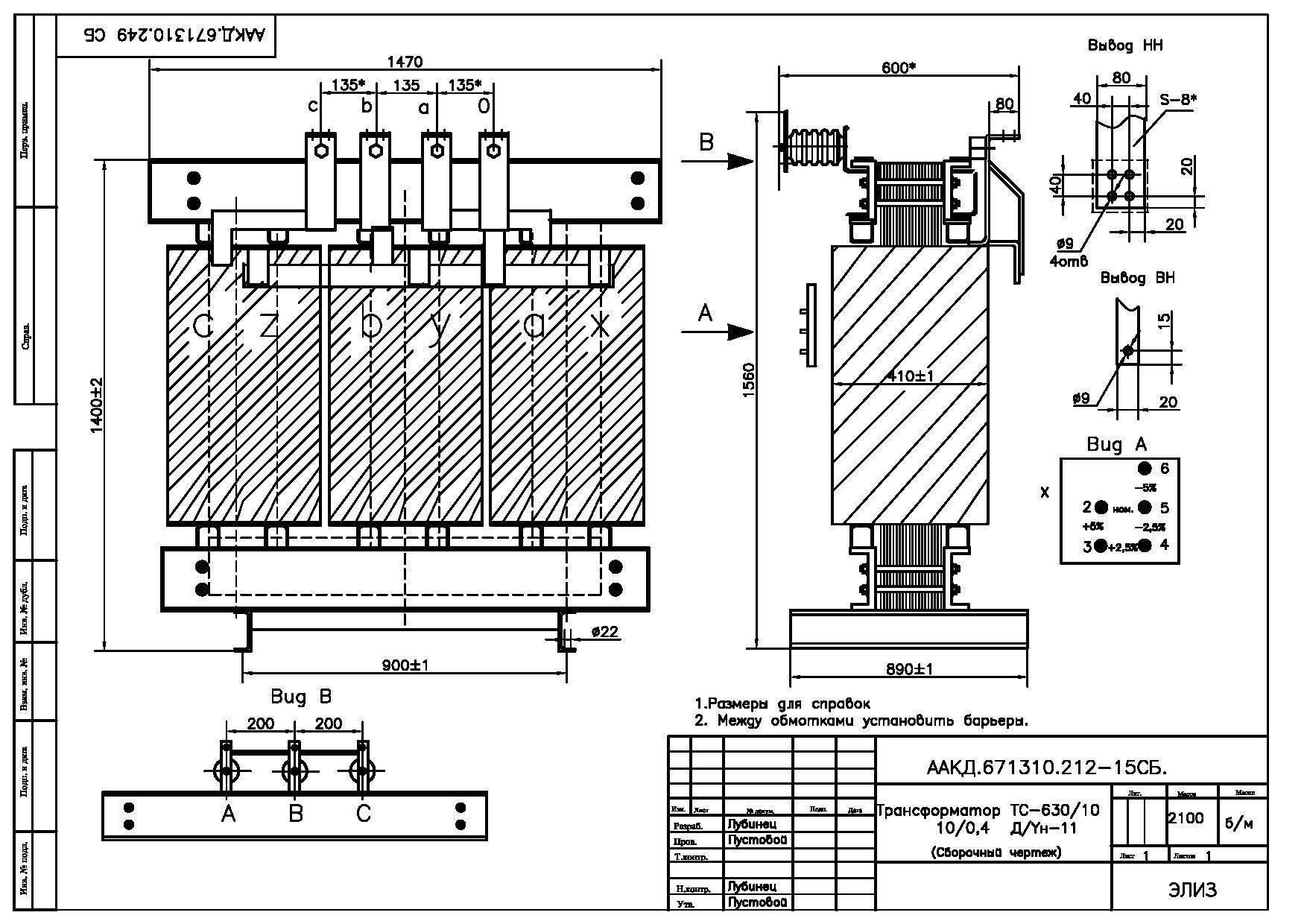

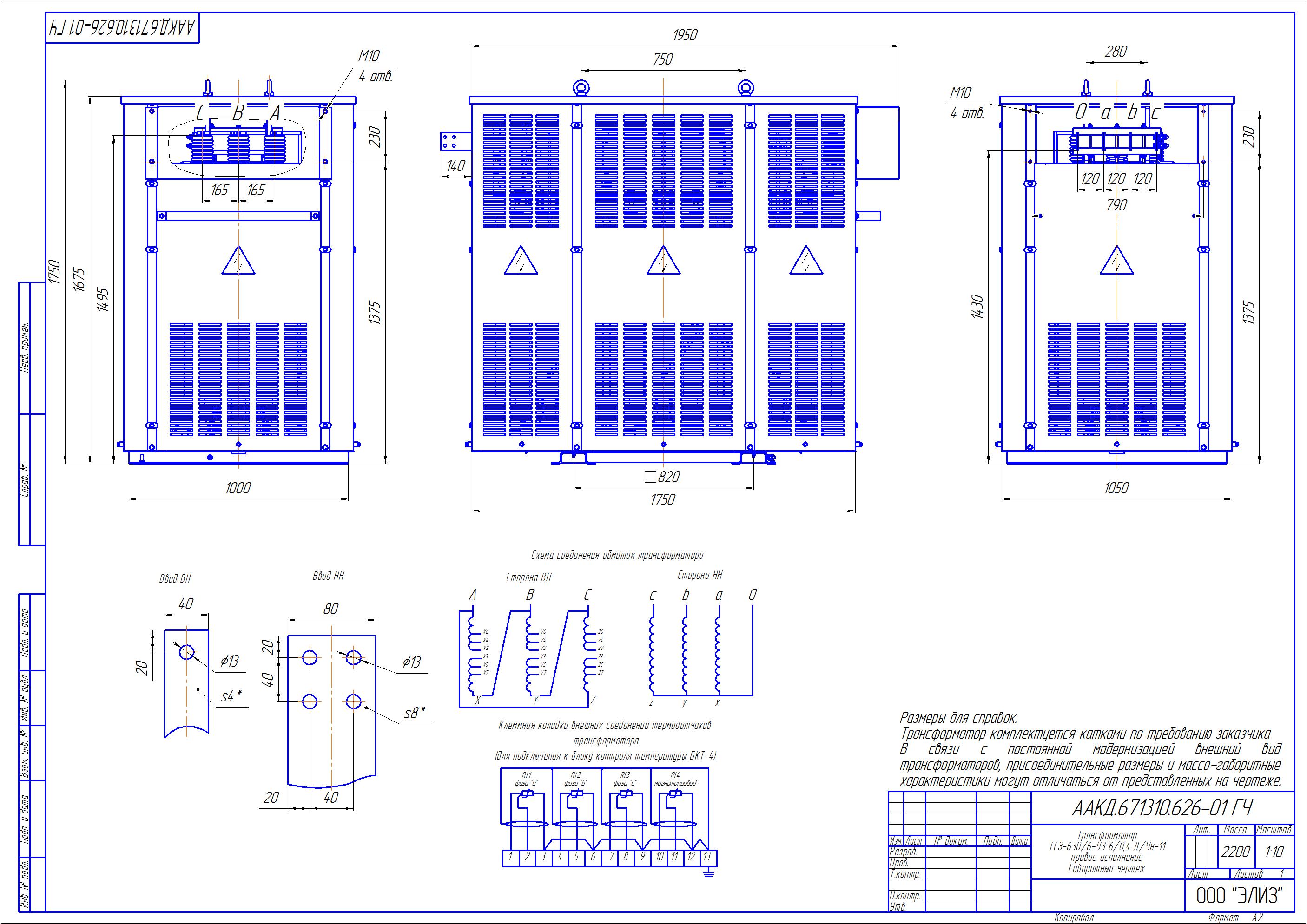

630 1470х890х1560  1750х1050х1750 2100 2200

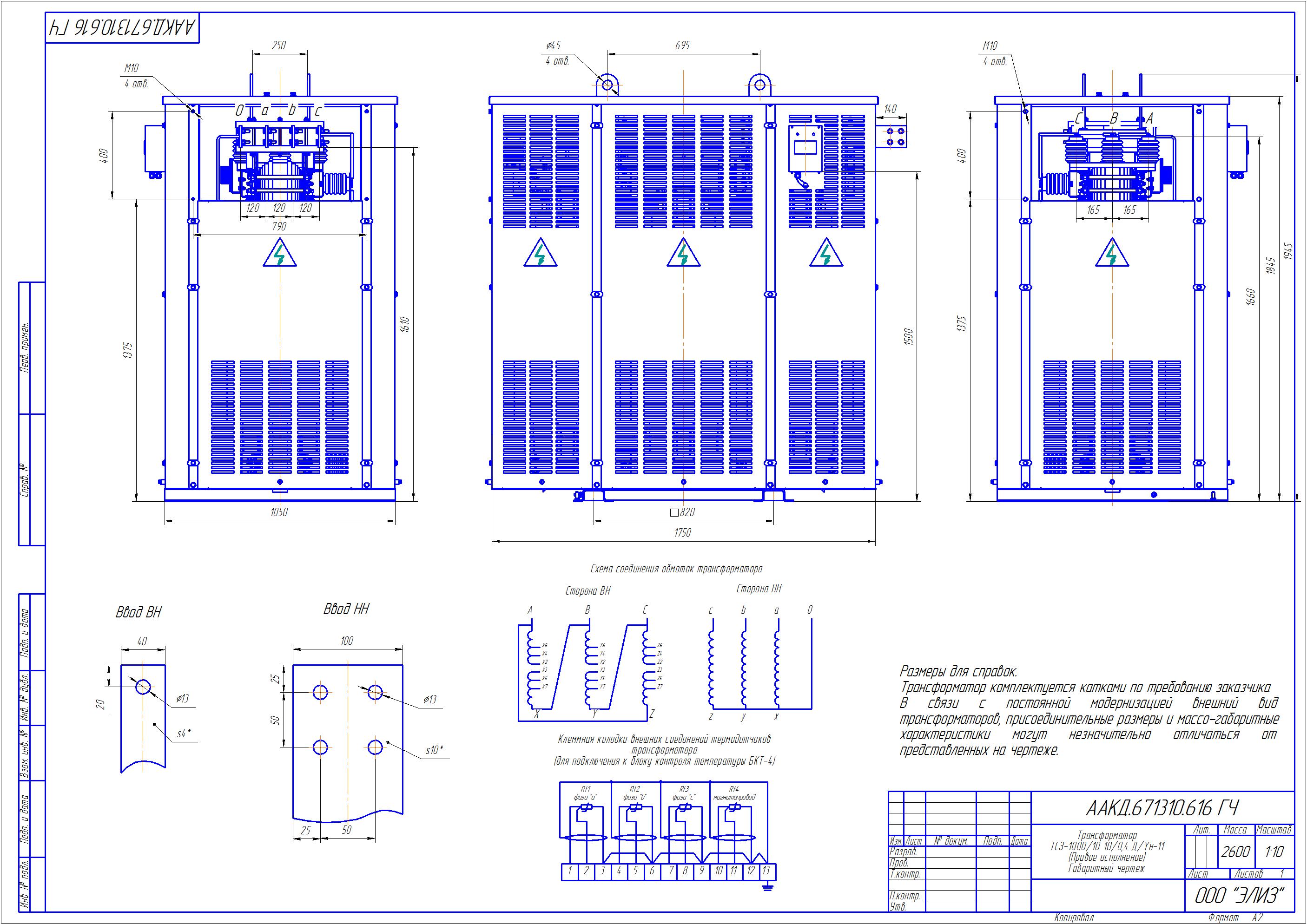

1000  1570х1050х1695  1750х1050х1945 2400 2600

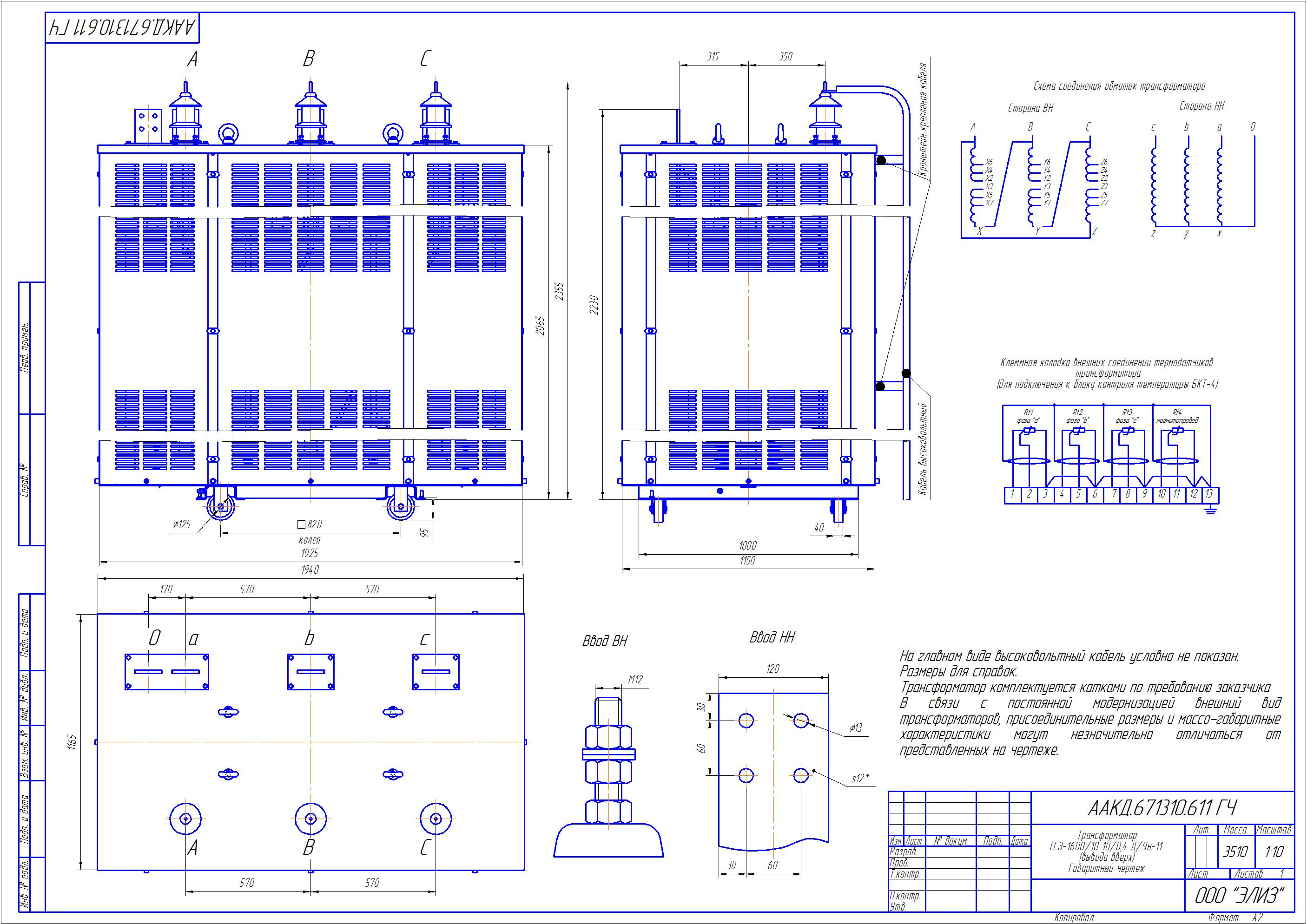

1600    1940х1150х2355   3510
2500    2370х1352х2350   5865

  The transformers are made under TУ У 3.49-13608660-048-2000.
  The transformers are ГОСТ 11677 compliant.
  The outlets disposition and connectional dimentions are to be agreed with a customer.
As per agree with a customer, transformers with rated power up to 16000 kVA, with parameters, differ of the listed in the table below, may be manufactured.
As per agree with a customer, transformers of open version (ТС, ТСН type) may be manufactured.
As per agree with a customer, transformers may be equipped by heat protection devices, placed on the outgoing ends of LV windings.
As per agree with a customer, transformers of ТСЗС type, designed for own needs of the substations, with 8% short circuit voltage.
As per agree with a customer, single-phase transformers of ОС, ОСЗ type with rated power up to 1000 kVA may be manufactured.
HV voltage: 6-10kV; changes as per customers request are possible.
LV voltage: 0,23-0,69kV; changes as per customers request are possible.
Windings scheme / connections group: Y/Yn-0; ∆/∆-0; ∆/Yn-11; Y/∆-11; 1/1-0
The protection degree as per ГОСT 14254 - IP00; IP11; IP21.
  As per agree with a customer, the protection degree up to IP34 is possible.
  To satisfy the more highest requirements of windings temperature resistance, the transformers of ТСН, ТСЗН types, with insulation thermal resistance grade "H" - "NOMEX" type.
