6-35 kV Oil-immersed, by-step adjustable arc suppression reactors (Peterson coils), РЗДСОМ type
РЗДСОМ is oil-immersed, single-phase, by-step inductivity adjustable, arc suppression reactor (Peterson coil). The adjustment is provided by tap selector in off-load mode. The rated power range 115 to 3300kVAr and more, signal windings voltage up to 100V.
Download the questionnaire .
The reactors are designed for compensation of the current capacitance component in single-phase grounding faults. The reactors are used to reduce an earth fault current, for decreasing of voltage recovery rate on the damaged phase after extinguishing the grounding arc, for surge reduction at the arc re-ignition and for creation a conditions for its spontaneous extinguishing.
РЗДСОМ REACTORS TECHNICAL DATA
| Тип | The rated voltage, kV | The voltage of signal wiring, V | Maximum reactors currents, А |
| РЗДСОМ-115/6 | 6,6/√3 | 100 | 25-12,5 |
| РЗДСОМ-230/6 | 50-25 | ||
| РЗДСОМ-460/6 | 100-50 | ||
| РЗДСОМ-920/6 | 200-100 | ||
| РЗДСОМ-190/10 | 11/√3 | 25-12,5 | |

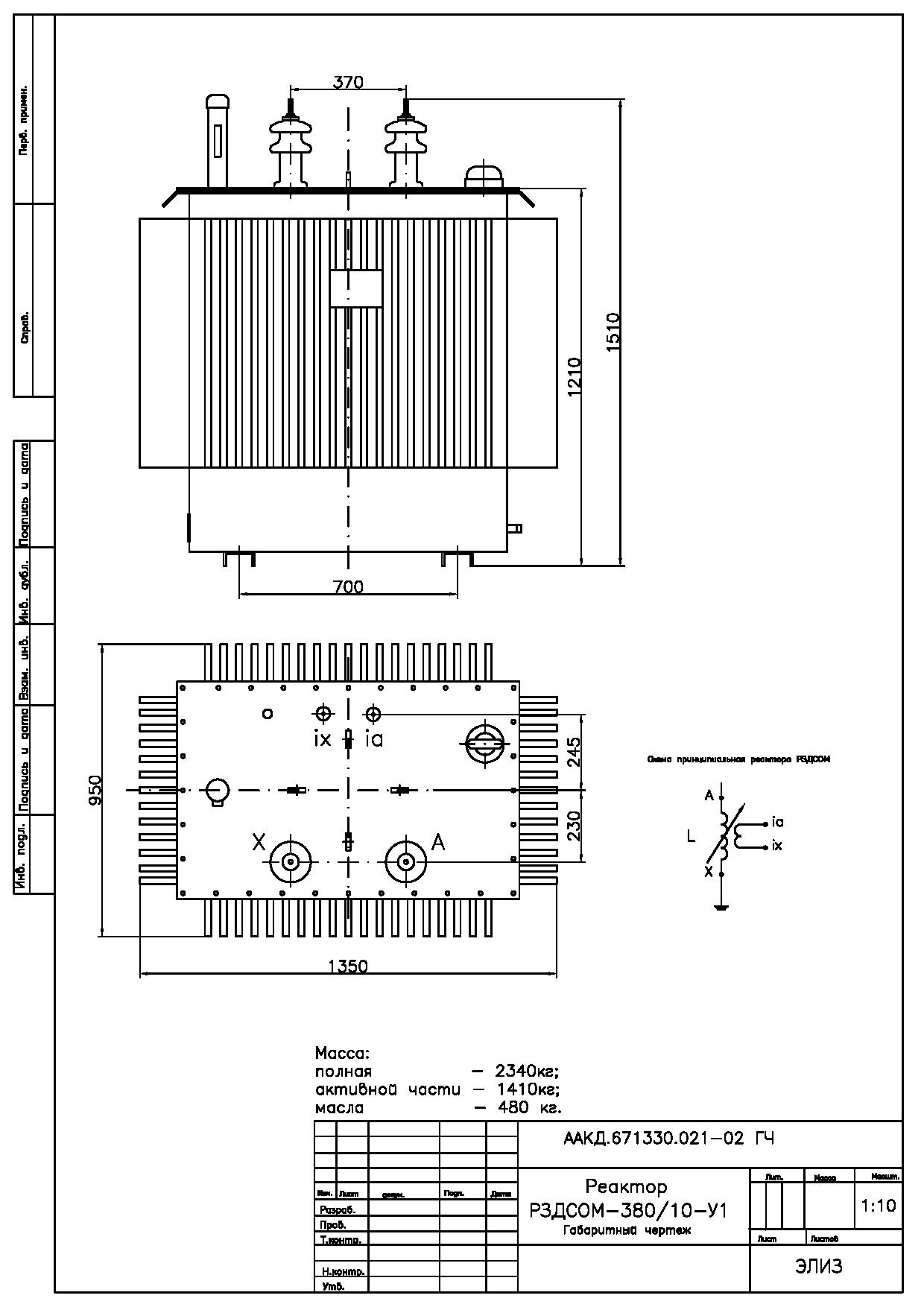

| РЗДСОМ-380/10 | 50-25 | ||

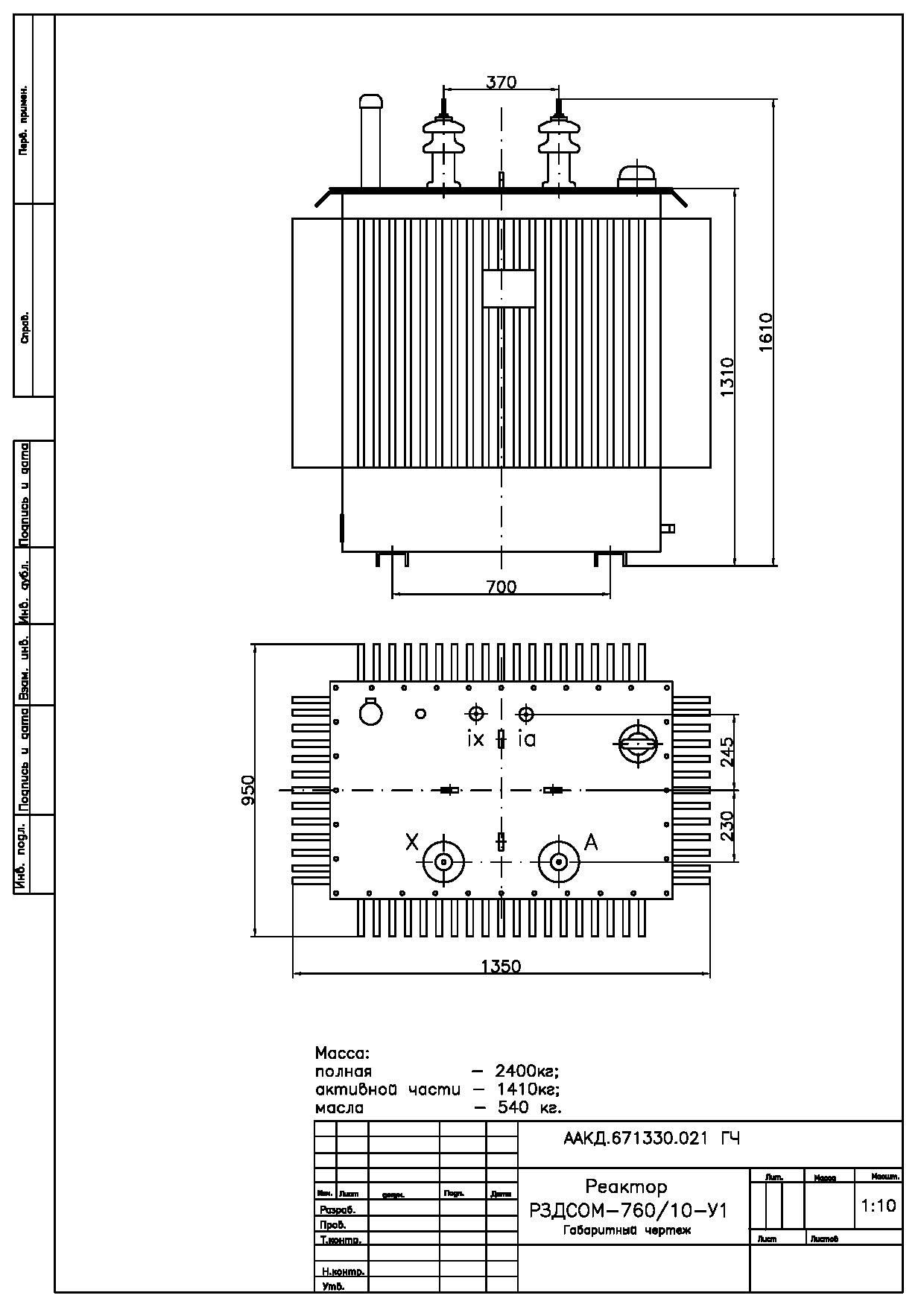

| РЗДСОМ-760/10 | 100-50 |
