6-35 kV Oil-immersed, stepless adjustable arc suppression reactors (Peterson coils), РЗДПОМ type

6-35 kV Oil-immersed, stepless adjustable arc suppression reactors (Peterson coils), РЗДПОМ type

РЗДПОМ is oil-immersed, grounding, arc suppression reactors on voltage class 6, 10, 27.5, 35 kV with smooth inductivity adjustment. The control is accomplished by a smooth change of the non-magnetic gap between of the movable rod discs. On request, they can be equipped with automatic control. The rated power range of reactors 120 to 1650kVAr, with 100V voltage signal wiring.
Download the questionnaire RZDPOM.doc [38,5 Kb] (downloads: 55).

РЗДПОМ technical data

Type Rated voltage Signal wiring voltage, V Maximum current, A Testing
voltage, kV
РЗДПОМ-120/6У1 6,6/√3 100 26,2-5,2 25
РЗДПОМ-190/10У1 11/√3 25-5,0 35
РЗДПОМ-300/6У1 6,6/√3 65,5-13,0 25
РЗДПОМ-460/6У1 6,6/√3 130-25 25
РЗДПОМ-480/10У1 11/√3 63,0-12,6 35
РЗДПОМ-760/10У1 11/√3 135-18 35
РЗДПОМ-950/6У1 6,6/√3 250-30 25
РЗДПОМ-1250/10У1 11/√3 200-20 35

The reactors are designed for compensation of the current capacitance component in single-phase grounding faults. The reactors are used to reduce an earth fault current, for decreasing of voltage recovery rate on the damaged phase after extinguishing the grounding arc, for surge reduction at the arc re-ignition and for creation a conditions for its spontaneous extinguishing.

РЗДПОМ weight & dimentions data

Type Length, mm Width, mm Heit, mm Weight, kg
РЗДПОМ-120/6У1

1165

 980 1380 1340

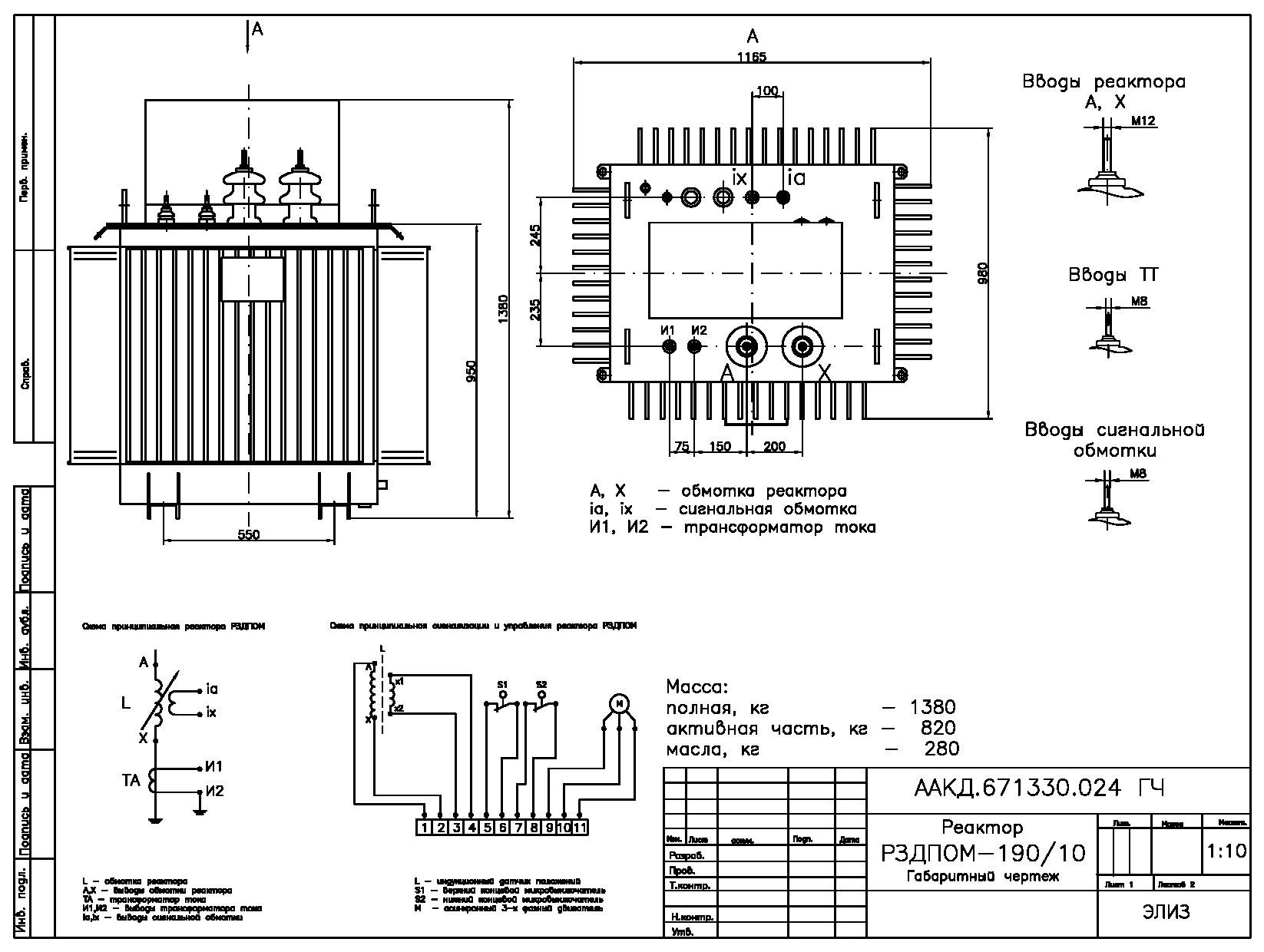

РЗДПОМ-190/10У1 1370

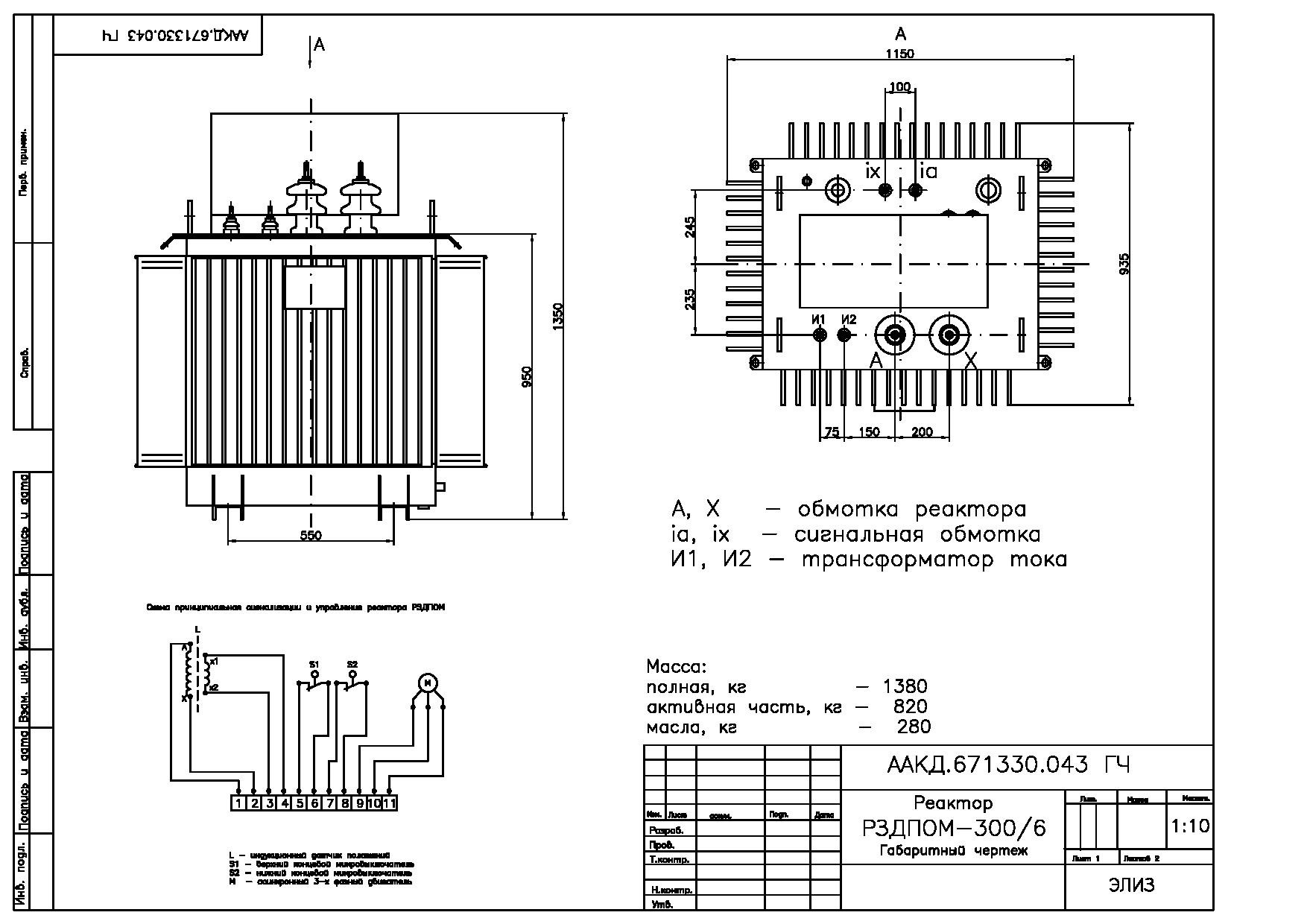

РЗДПОМ-300/6У1 1380

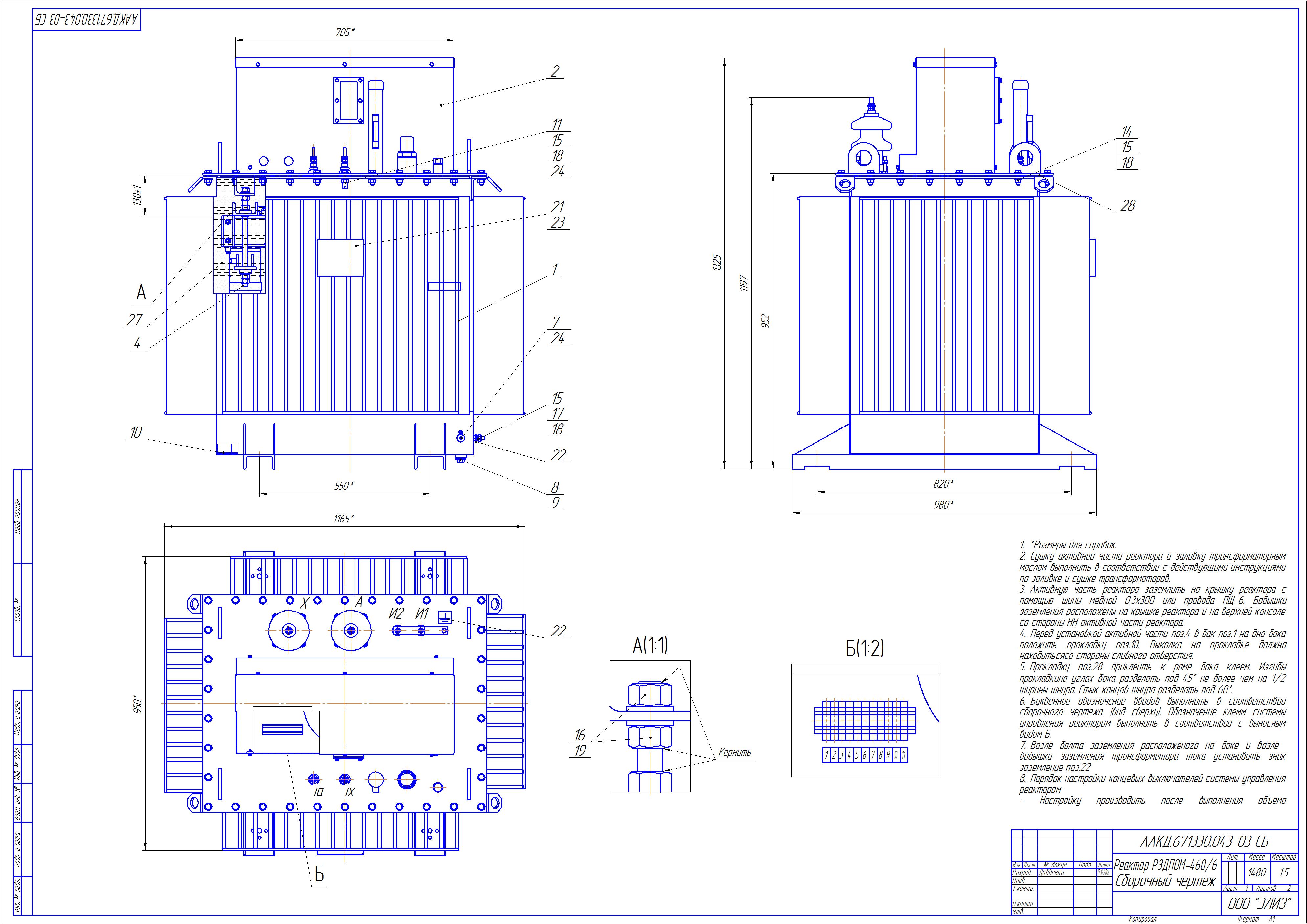

РЗДПОМ-460/6У1 1480

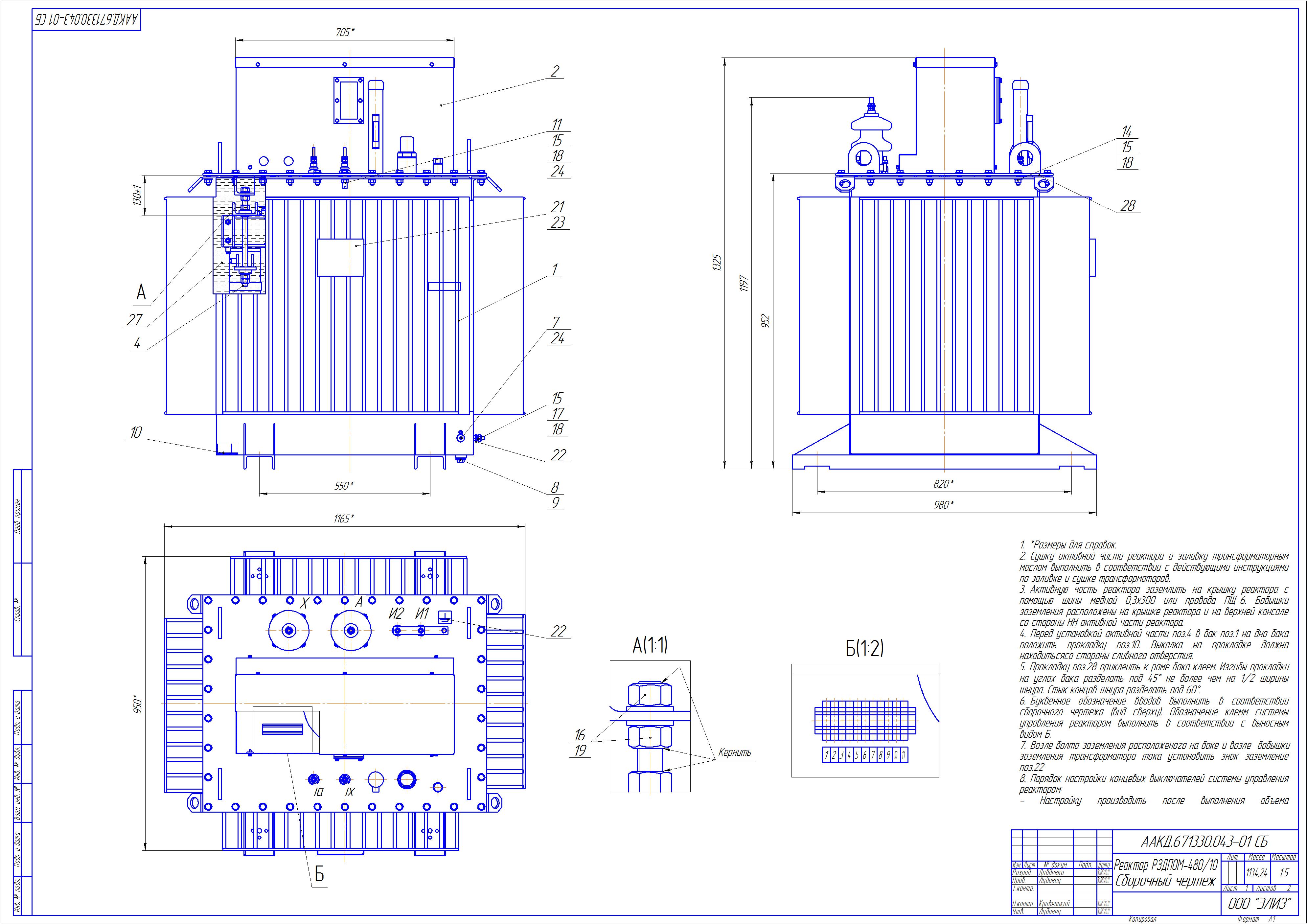

РЗДПОМ-480/10У1 1420

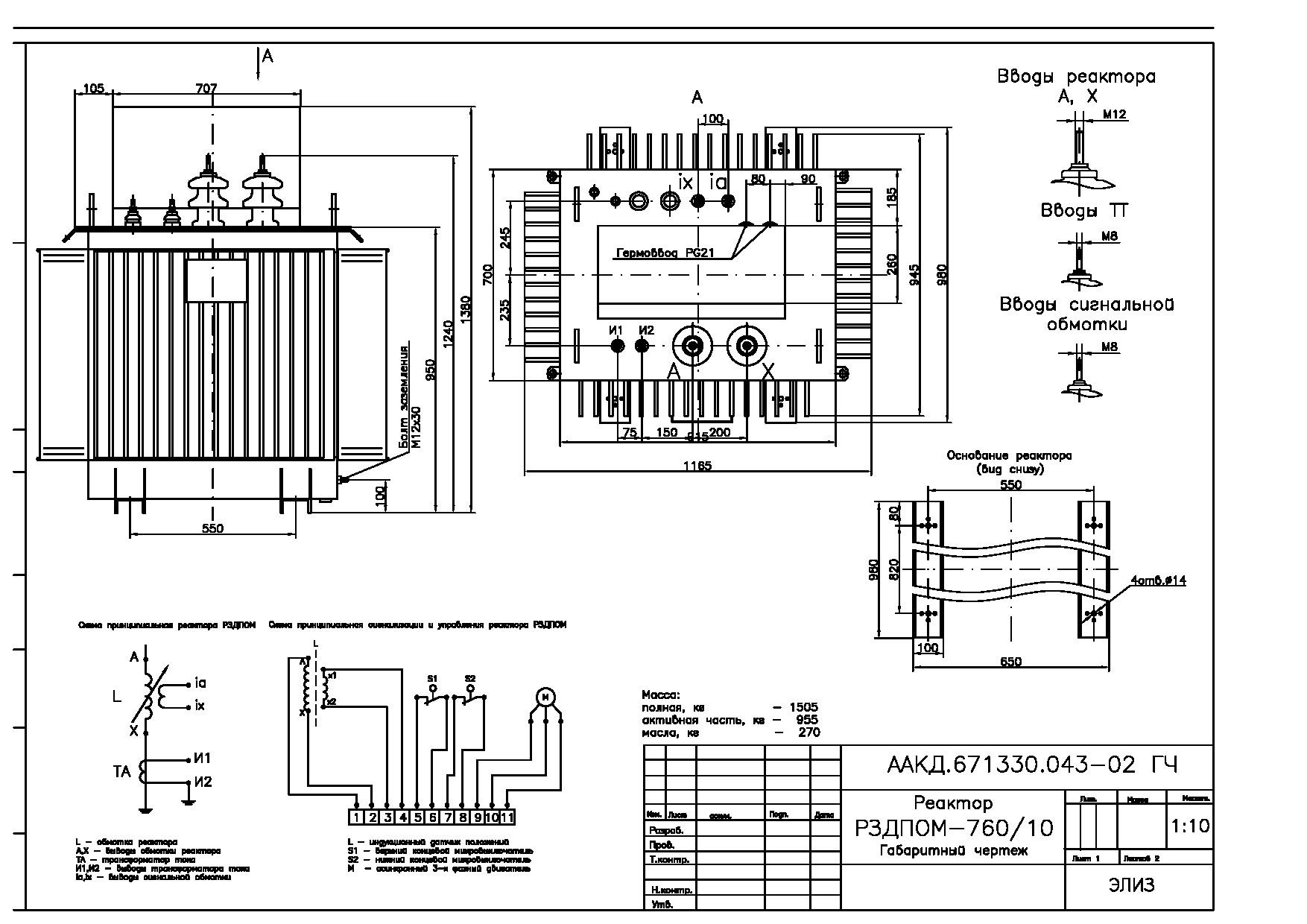

РЗДПОМ-760/10У1 1480
РЗДПОМ-950/6У1 1630 1380 2100 3950
РЗДПОМ-1250/10У1 3970
